Install JIMS Collector

Juniper Secure Edge supports JIMS Collector Release 1.7.0 or later.

  1. Install JIMS Collector on a Microsoft Windows computer

    Ensure that the computer can connect to Juniper Security Director Cloud and your enterprise's Active Directory.

  2. Select Juniper Networks > JIMS Administrative Interface from the Start menu of the computer to start the JIMS Collector user interface.
  3. Onboard JIMS Collector to Juniper Secure Edge.
    1. Click File > Juniper Secure Edge Connect.
      The Juniper Secure Edge Connect page opens.

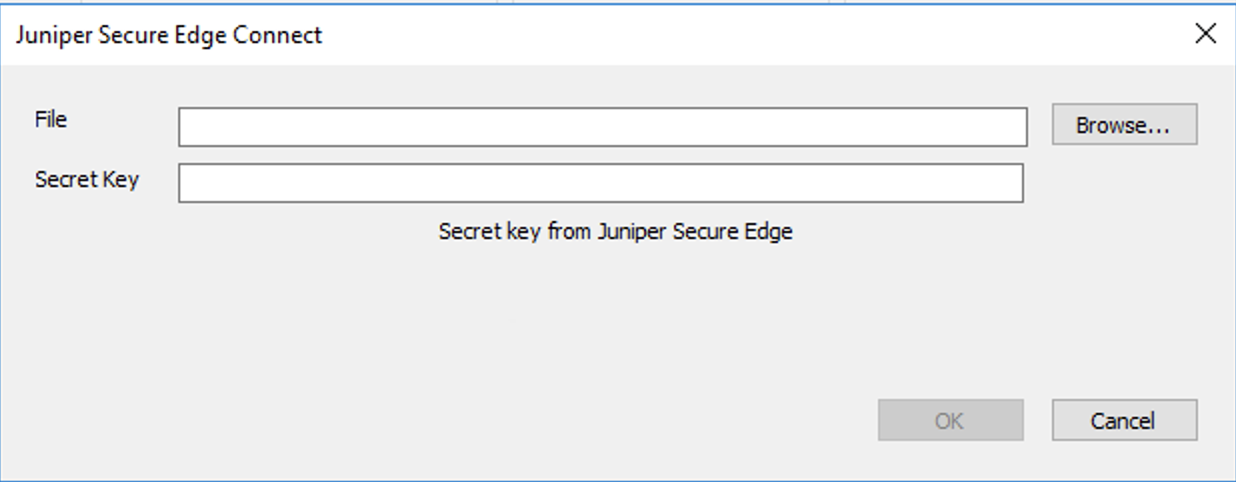

      Figure 1: Juniper Secure Edge Connect Page Juniper Secure Edge Connect Page
    2. Select the downloaded XML configuration file.
    3. Insert the secret key generated after downloading the XML configuration file.
    4. Click OK.
  4. Check whether JIMS Collector has established a connection with Juniper Secure Edge.
    1. Click Monitor on the left pane, and click the JIMS Servers tab.
    2. Verify that the Connection State column displays Connected.

Juniper Secure Edge displays the onboarded JIMS Collector on the JIMS page in the Active state after a connection with Juniper Secure Edge is established.
