VPN Configlet Generation

As mentioned earlier under the sections under VPN Design and Modeling using the VPN Wizard, the VPN Module gives you the ability to generate VPN configlets for a particular VPN. For instance, the last step under the section, L3 (Layer 3) VPN, describes how to generate and display the configlet for a L3VPN. The following figures show configlets generated for two of the VPNs discussed earlier.

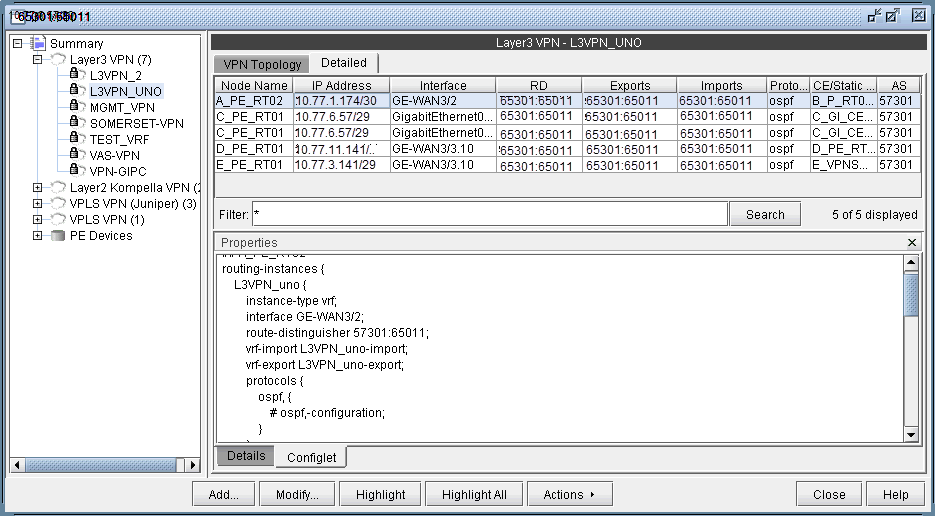

Figure 1: A Configlet Generated for a L3VPN Network management tool displaying L3VPN_UNO details, with node info, routing-instance configuration, and management actions.

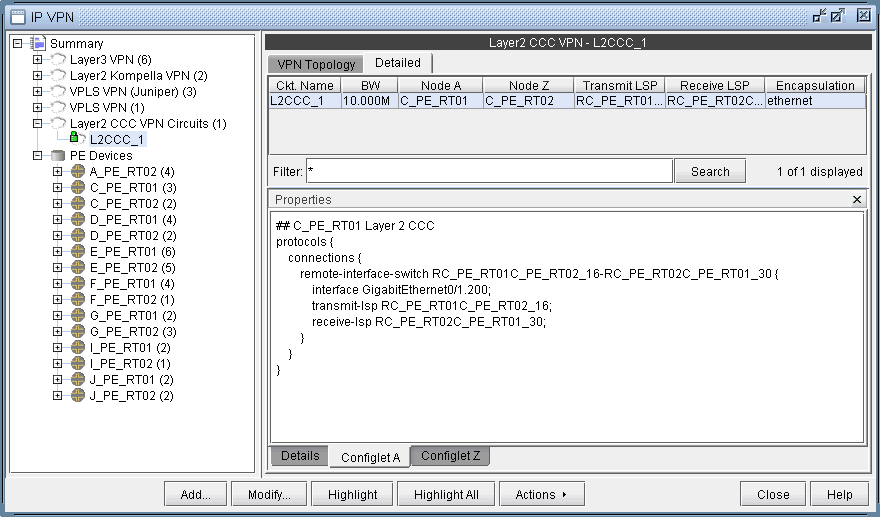

Figure 2: A Configlet Generated for a L2CCC VPN Network management interface for configuring and monitoring Layer 2 CCC VPNs. Selected circuit: L2CCC_1 with endpoints C_PE_RT01 and C_PE_RT02, bandwidth 10.000M, using Ethernet encapsulation.

To generate configlets in batch for several of the VPNs in a network, you may use the VPN Configlet window (accessed via the Design > Configlets/Delta > VPN Configlet menu), where you can specify a particular directory (specified in the Directory box) to store the generated VPN configlets. In addition, you may also choose to generate configlets for particular nodes or VPNs via the Node/VPN drop-downs.

Select CLI Commands before clicking Submit to also generate the corresponding CLI commands corresponding to the configlet.

The following figure shows a VPN directory that contains all of the generated VPN configlets for the network.

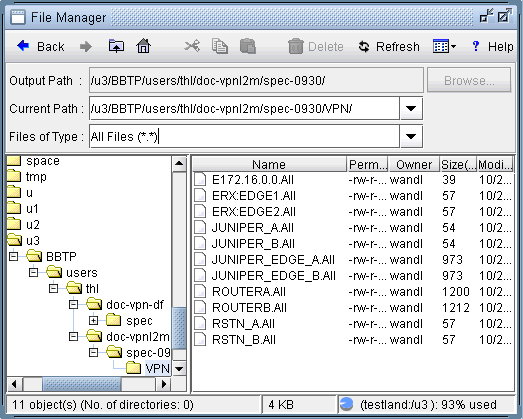

Figure 3: VPN Directory with the Generated VPN Configlets File manager interface with navigation toolbar and directory paths. Current path is /u3/BBTP/users/thl/doc-vpnl2m/spec-0930/VPN/. Directory tree on the left, file list on the right showing files like E172.16.0.0.All. Status bar indicates 11 objects, 4 KB total size, 93 percent disk usage.

An example of a generated VPN configlet is shown in the following figure.

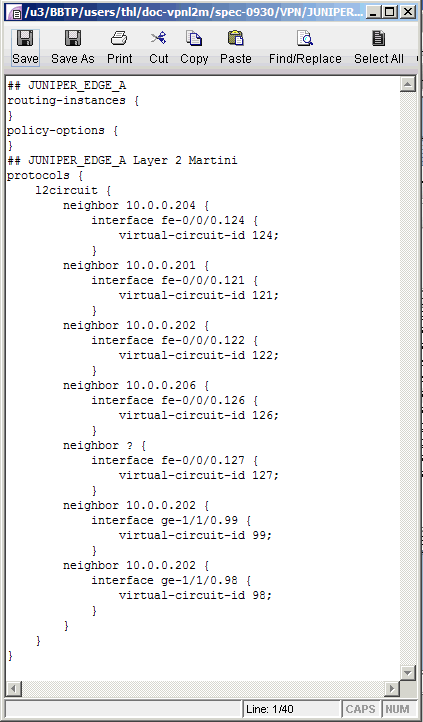

Figure 4: The Configlet Generated for JUNIPER_EDGE_A Juniper network device config file showing Layer 2 VPN settings with l2circuit protocols, neighbors, interfaces, and virtual circuit IDs.
