CSDS Architecture with a Single MX Series Router (ECMP-Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Standalone)

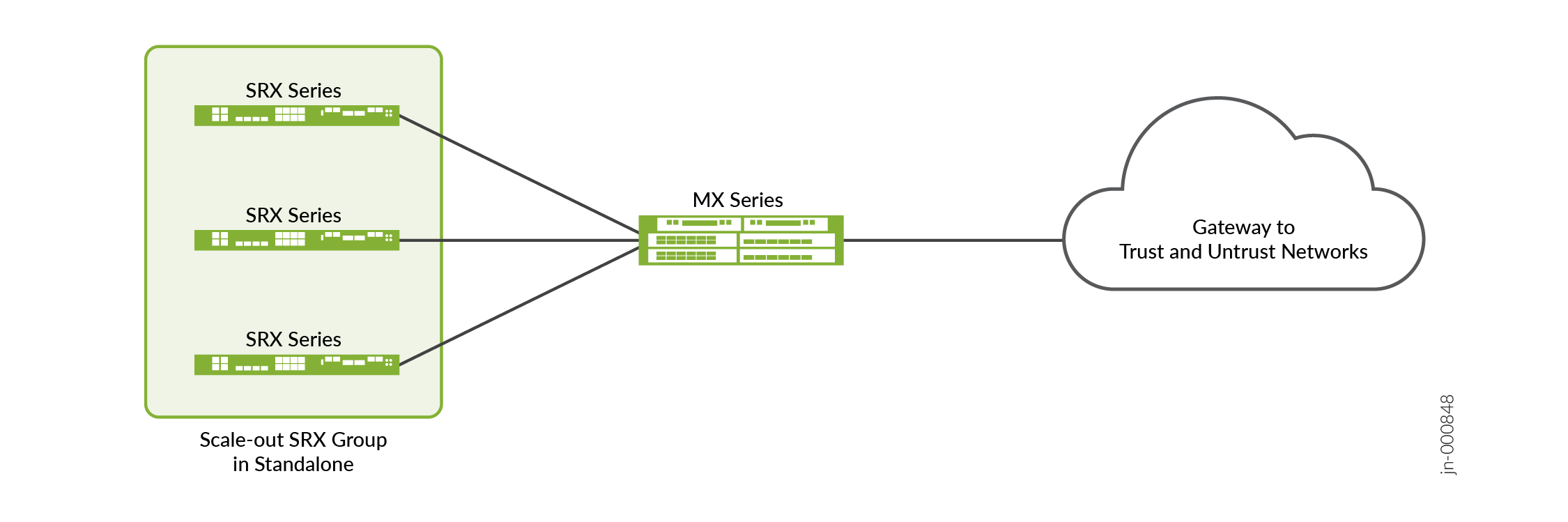

Figure 1 illustrates the CSDS topology with a single MX Series router and scaled-out SRX Series Firewalls in standalone mode.

Figure 1: Single MX Series (ECMP-Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Standalone)
