Deploy Apstra ConnectorOps for Infected Host Isolation and Verify Connectivity

Use the following steps to deploy Apstra ConnectorOps and verify connectivity to Apstra DC Director and ATP Cloud

  1. Create a directory for the Apstra ConnectorOps image.
  2. Download the latest Apstra ConnectorOps image onto the VM, host, or server.

    Use the following download link under Application Tools: https://support.juniper.net/support/downloads/?p=apstra.

  3. Install Docker and Docker Compose.
  4. Load the Docker image.

    The following is an example docker-compose.yml

  5. Start Apstra ConnectorOps for Infected Host Isolation.
    Apstra ConnectorOps generates an ih-acl-configlet if one doesn’t already exist.

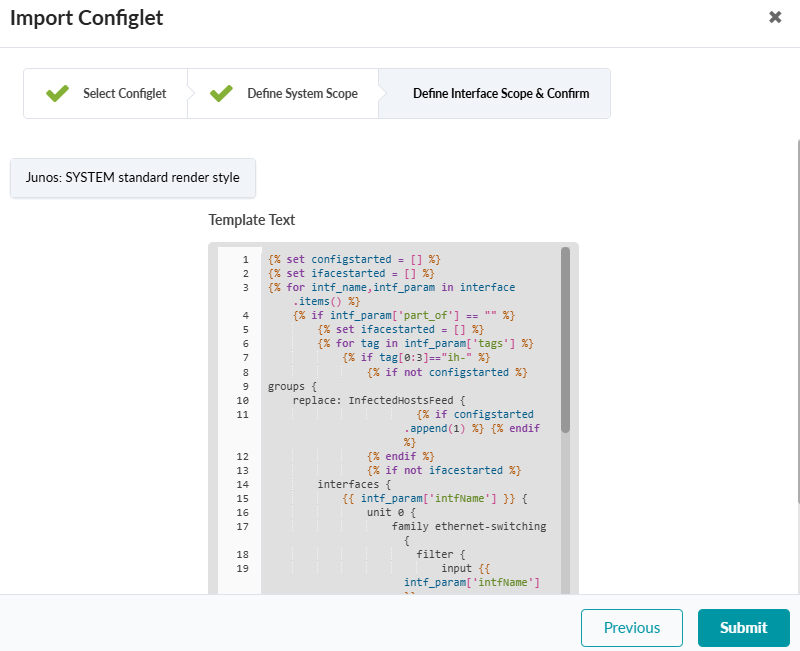

  6. Import the ih-acl-configlet into your blueprint:

    1. From your blueprint, navigate to Staged > Catalog > Configlets > Import Configlet.

    2. b. Select the ih-acl-configlet from the dropdown and click Next.

    3. Review the rendered template and click Submit.


  7. Repeat this process for each blueprint where you want IH isolation.
