Product Usage License Report

From the GUI, you can navigate to the Product Usage dashboard to view various statistics on features and their associated license level based on usage. HPE Networking Apstra Data Center Director compares product usage to your applied licenses, warns of mismatches, and helps ensure compliance.

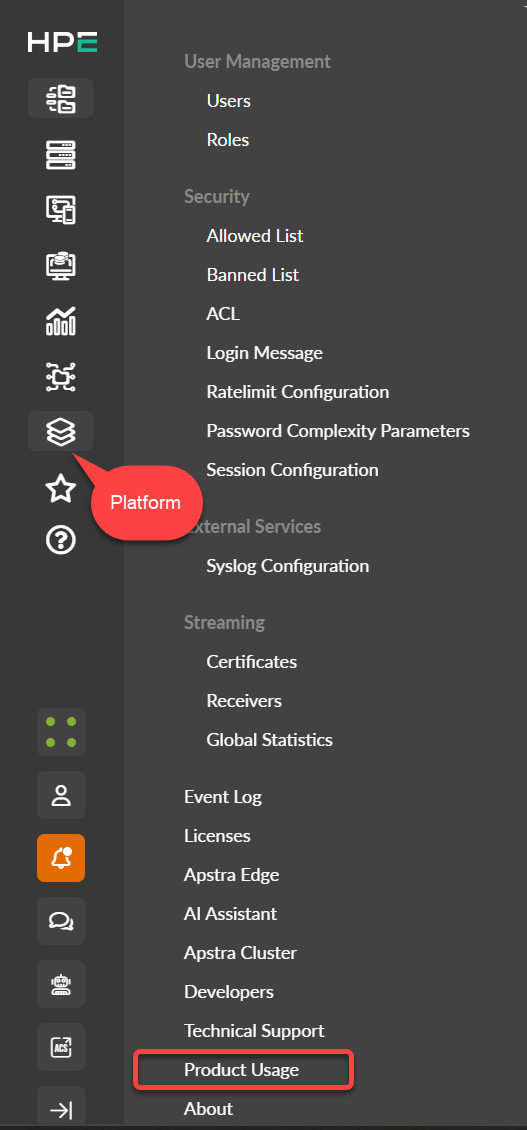

From the left navigation menu in the Apstra DC Director GUI, navigate to Platform > Product Usage. User interface menu from HPE platform showing categories like User Management with options Users and Roles, Security with options Allowed List, Banned List, ACL, Login Message, Ratelimit Configuration, Password Complexity Parameters, and Session Configuration, External Services with Syslog Configuration, Streaming with Certificates, Receivers, and Global Statistics, and other options like Event Log, Licenses, Apstra Edge, AI Assistant, Apstra Cluster, Developers, Technical Support, Product Usage, and About. Left sidebar has navigation icons. Platform section is highlighted with red label, Product Usage option has red border.

From the Product Usage page you can view information about your current licensing plan.

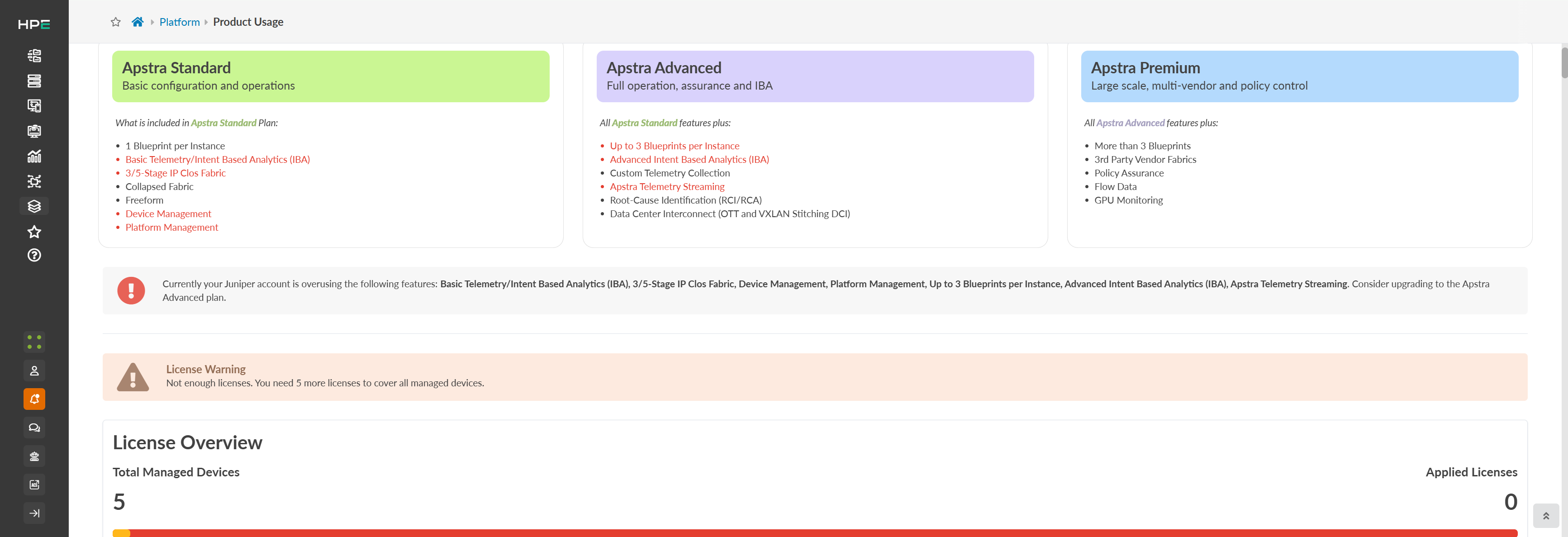

Figure 1: Product Usage Licensing Page HPE interface showing Product Usage section with Apstra plans: Standard, Advanced, Premium, their features, license warning for insufficient licenses, and navigation panel.

Apstra DC Director uses a Flex three-tier software license model: Standard, Advanced, and Premium. All features provided by Apstra DC Director are listed here with the required licenses. The license overview shows the total managed devices and the number of applied licenses. The plan indicates which products you are using and its current license level. Any product highlighted in red is out of compliance.

For more information about Apstra DC Director license levels, see the Juniper Licensing User Guide.

Note: If a license violation occurs, you'll see a warning indicating that you need additional licenses to cover all your managed devices.

You can also view product usage statistics that provides blueprint metrics such as:

  • Device count and types (Physical entities)

  • Virtual Infrastructure details (hypervisors per VIM)

  • GPU count

  • Security policies and rules per policy

  • Required license tier

  • IBA probe count, including auto-enabled and user-instantiated probes

Figure 2: Product Usage Statistics Report Error analyzing image
