Bring Interface Up

You can enable an interface (admin up) from the Topology view of the HPE Networking Apstra Data Center Director GUI or (as of version 5.1.0) from the interface detail view.

To enable an interface, your user profile must be assigned at least one of the following Granular Permissions type roles: Manage racks and links or Manage generic systems (as of version 5.1.0). For more information, see User/Role Management.

Bring Interface Up from Topology View

To bring an interface up from the GUI topology view:
  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf that's connected to the applicable generic system or external generic system.

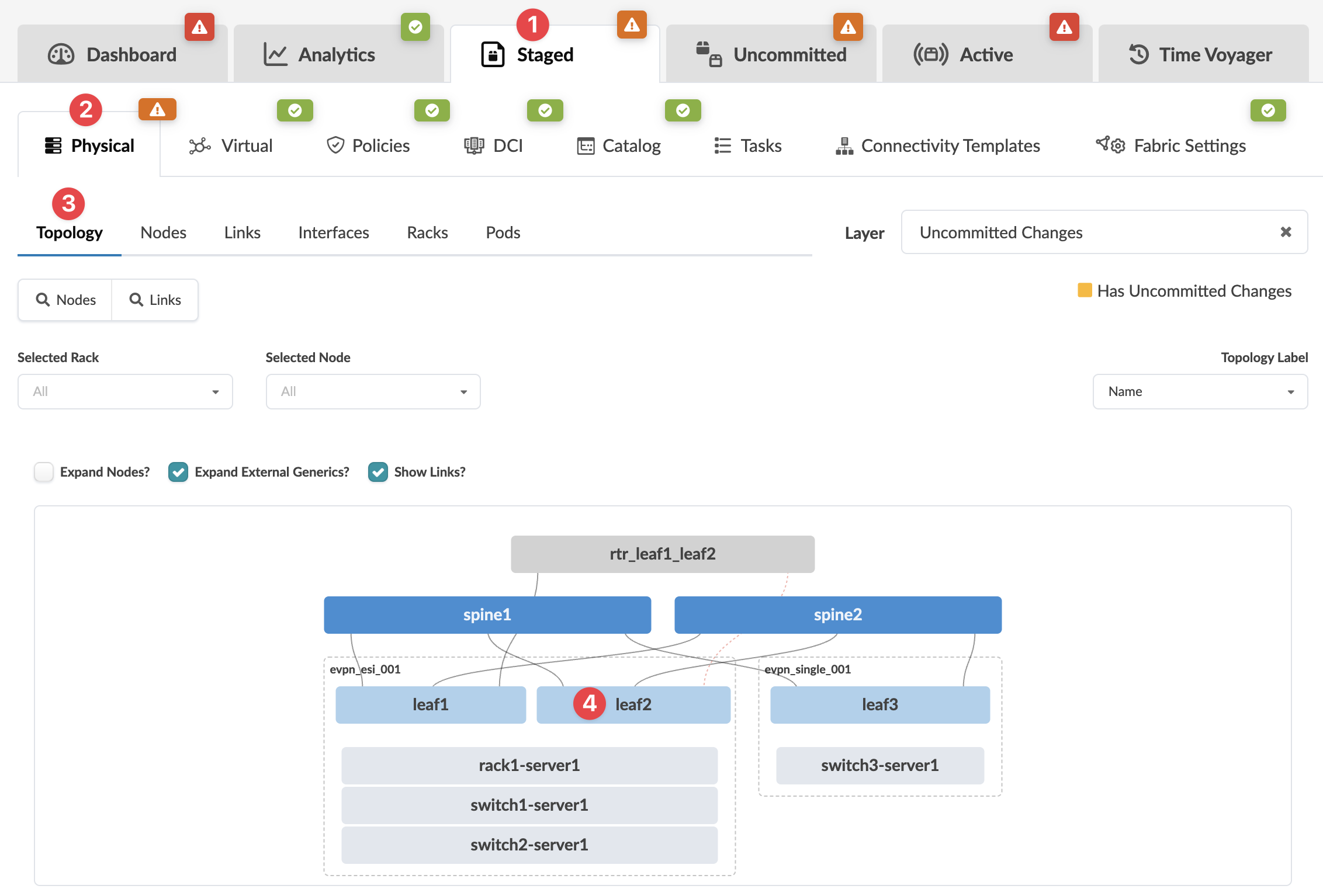

    Network management interface showing tabs with status indicators, navigation menu, topology diagram of nodes like spine1 and leaf1, logical connections, filters, and uncommitted changes layer.
    The Topology Node view appears.
  2. Select the check box for the applicable interface, then click Enable interface to stage the change.

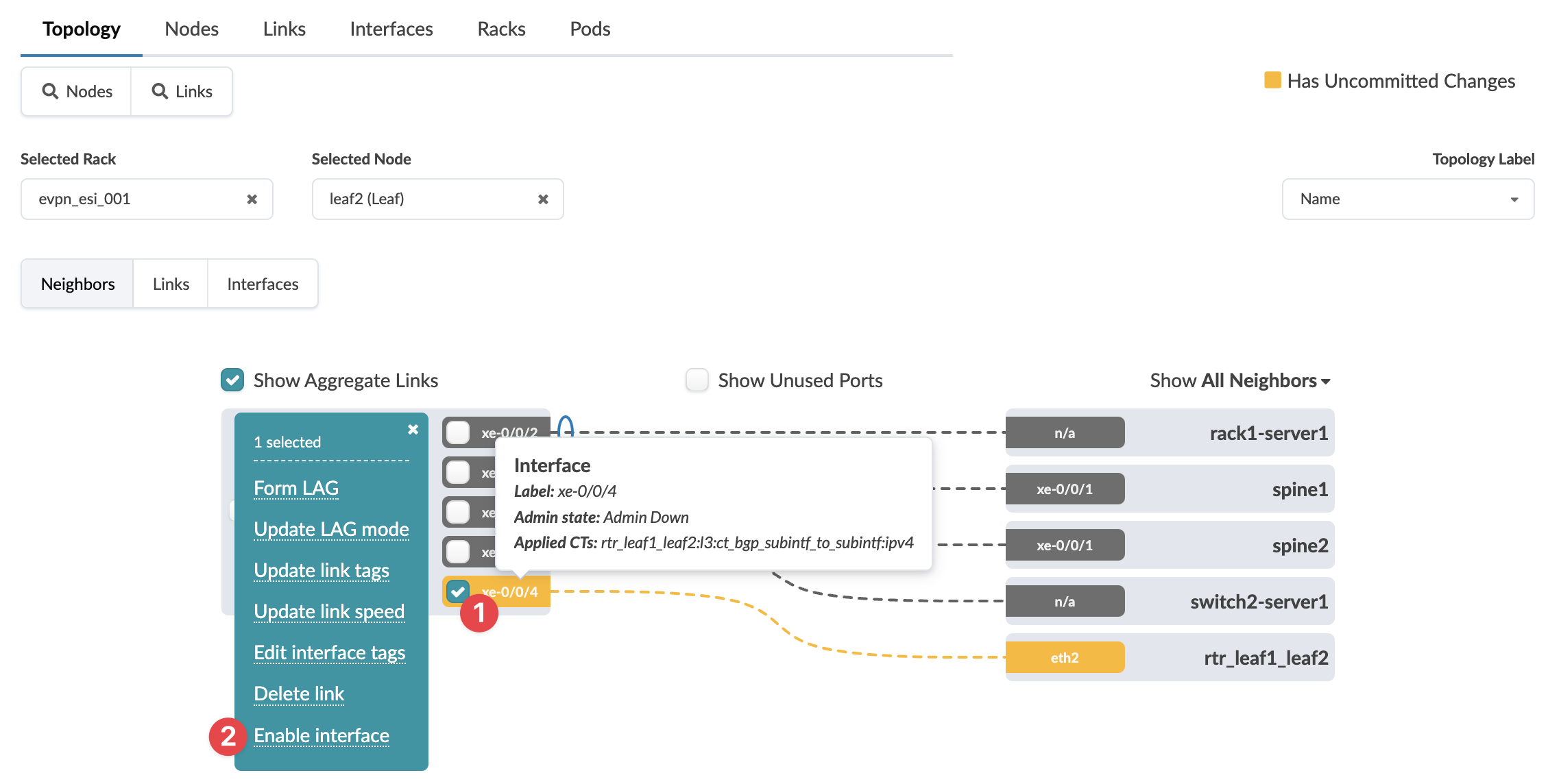

    Network topology interface showing a selected node leaf2 connected to devices like rack1-server1. Interface xe-0/0/4 is admin down.
    The change has been staged and is ready to commit.
To deploy the change to the active blueprint, commit from the Uncommitted tab.

Bring Interface Up from Interface Detail Page

To bring an interface up from the GUI Interface detail page:
  1. From the blueprint, navigate to Staged > Physical > Interfaces and select the leaf that's connected to the applicable generic system or external generic system.

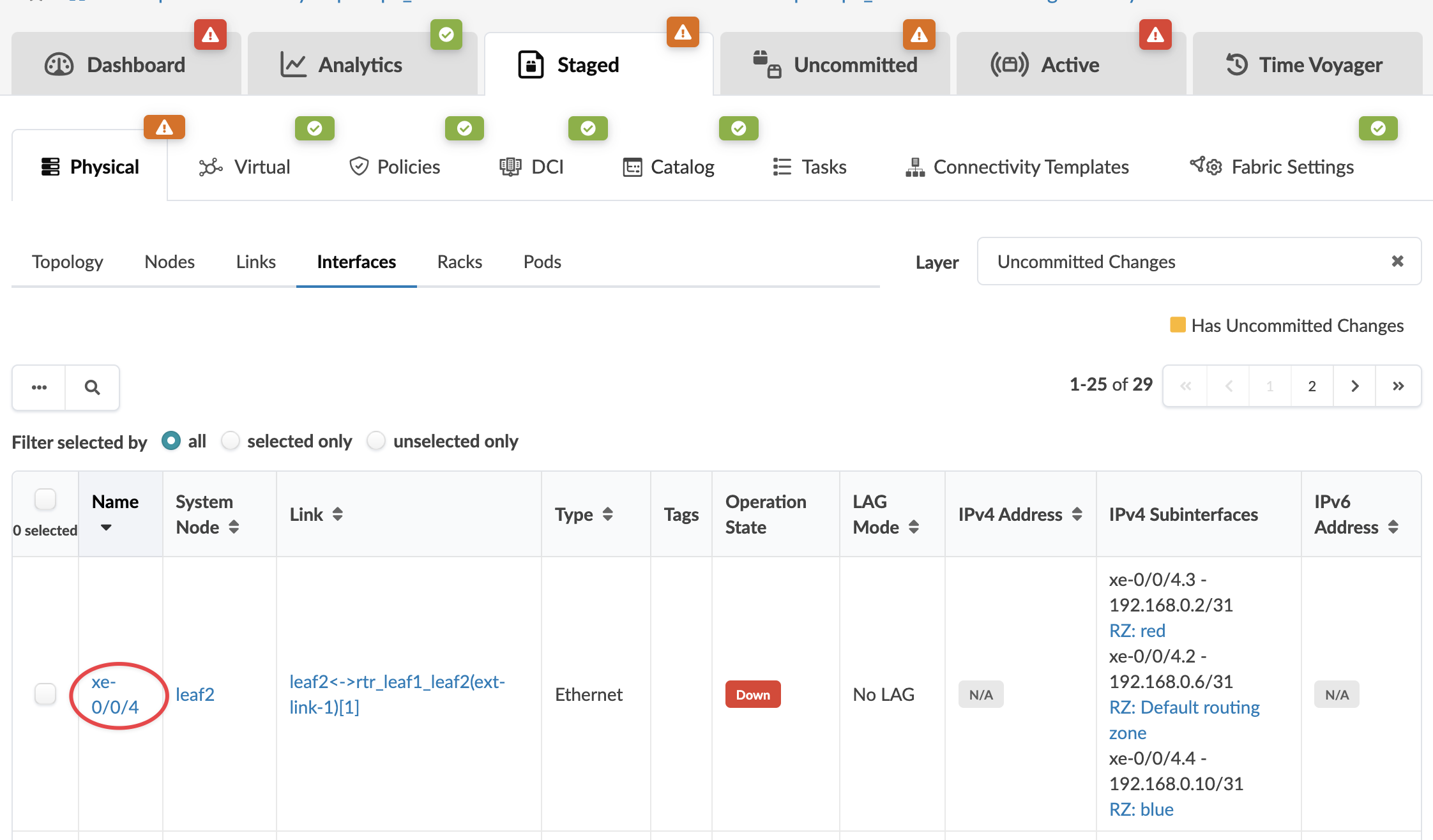

    Dashboard screenshot showing network interfaces in the Interfaces tab. Interface xe-0/0/4 is highlighted, operational state is Down, with multiple IPv4 subinterfaces and routing zones. Indicators for Staged, Uncommitted, and Active changes are visible at the top, including warnings and success markers.
    The Interface Detail page appears.
  2. Click the Bring interface up button.

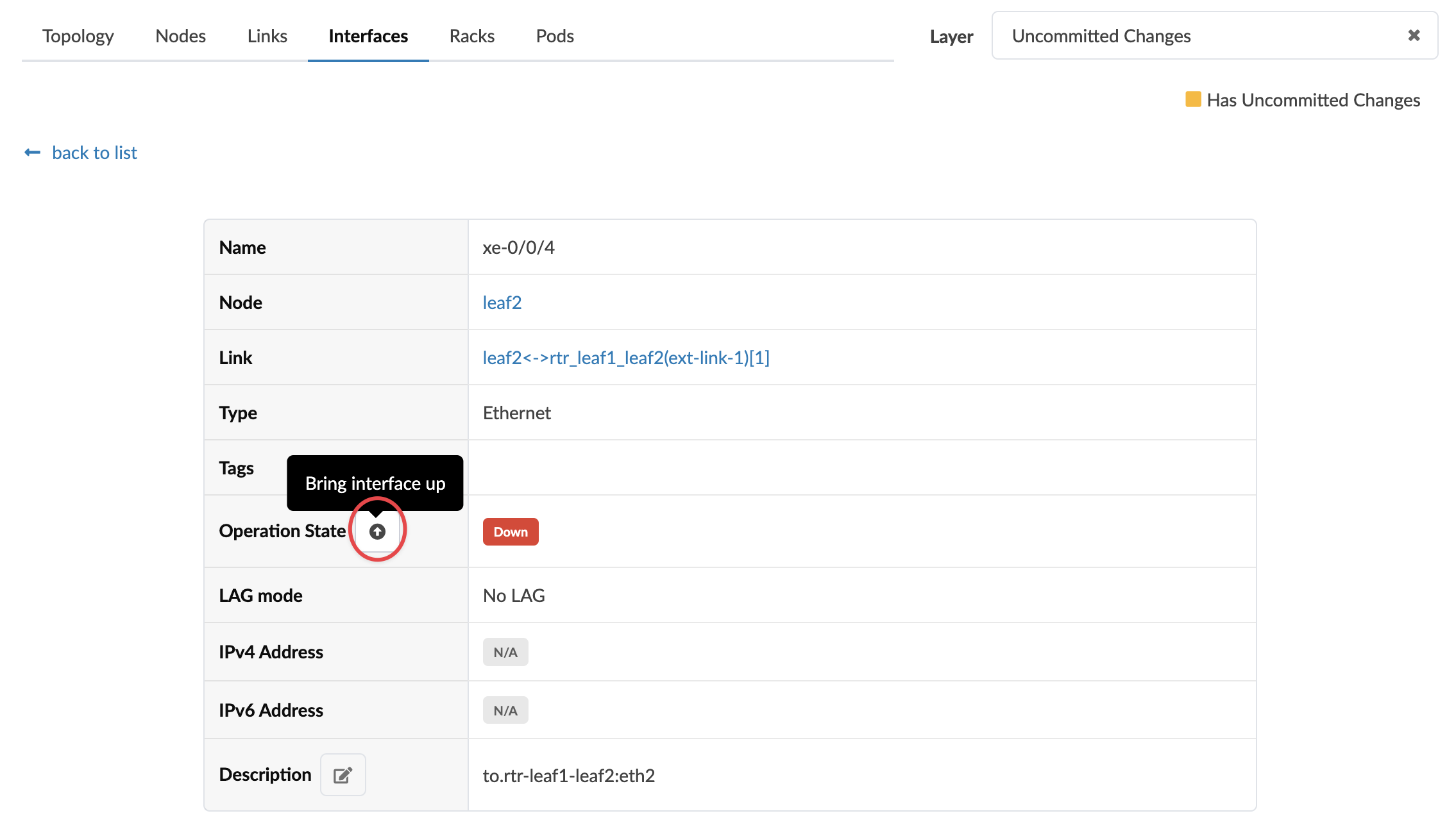

    Network interface configuration page showing interface xe-0/0/4 on node leaf2. Interface is Down with option to bring it up. Description reads to.rtr-leaf1-leaf2:eth2. No tags, LAG mode, IPv4, or IPv6 configured. Uncommitted changes displayed.
    The change has been staged and is ready to commit.
To deploy the change to the active blueprint, commit from the Uncommitted tab.
