Change Assigned Link IP Addresses (Datacenter)

Assign or change individual Link IP Addresses.

Normally, IP addresses are pulled automatically from resource pools, but there may be times when you need to assign a specific IP address or change one that was already assigned. In these cases, you can select the device and assign or change the IP address from the Properties tab. See below for details.

To change assigned link IP addresses from the GUI:

  1. From the blueprint, navigate to Staged > Physical > Links and select the link to update.

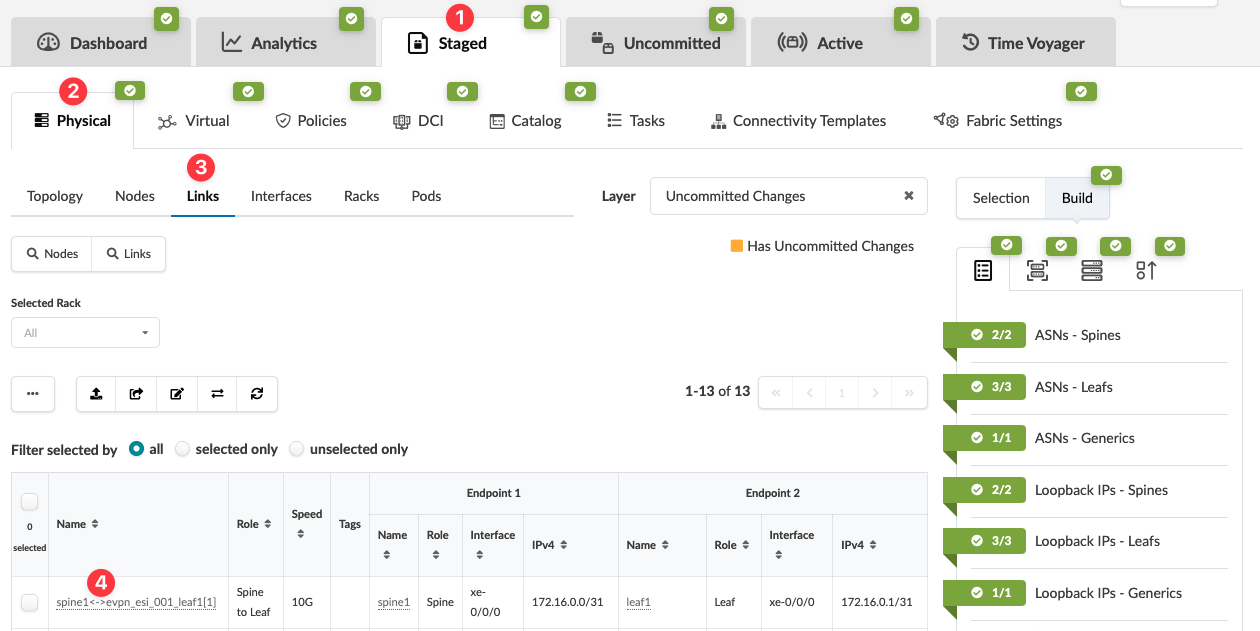

    Network management interface showing tabs like Dashboard, Analytics, and Time Voyager, sections for configuration and monitoring, and a table detailing network links with endpoints and IPv4 addresses.
    The Selection panel on the right becomes active and populates with information about the selection.
  2. In the Properties tab in the Selection panel click the Edit button for the Link IP field to change.

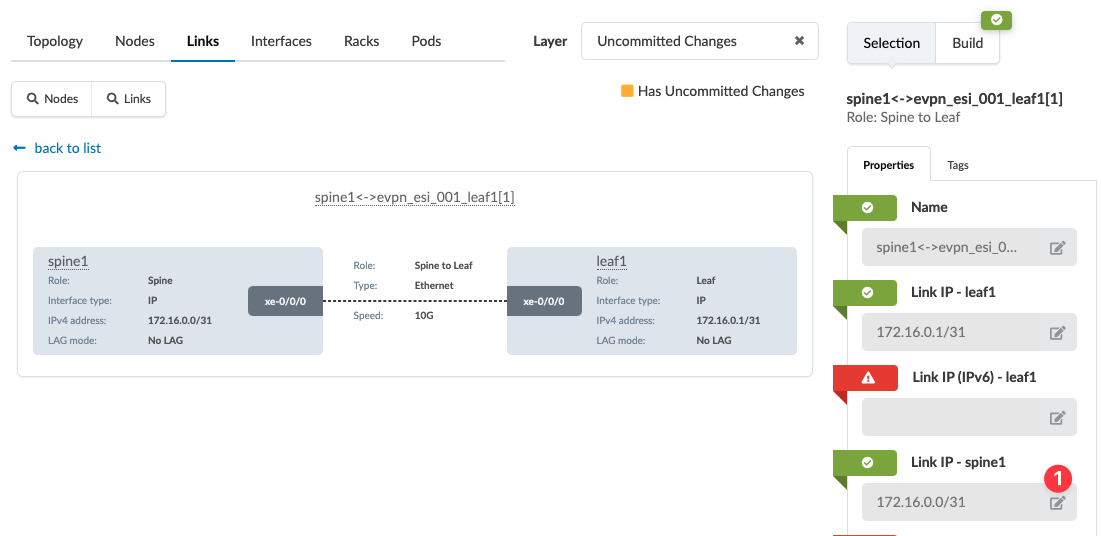

    Link between spine1 and leaf1 with 10G Ethernet speed. IPv4 is valid; IPv6 warning on leaf1. Uncommitted changes present.
    The Link IP field becomes available to change.
  3. Enter the new link IP address value, then click the Save button.

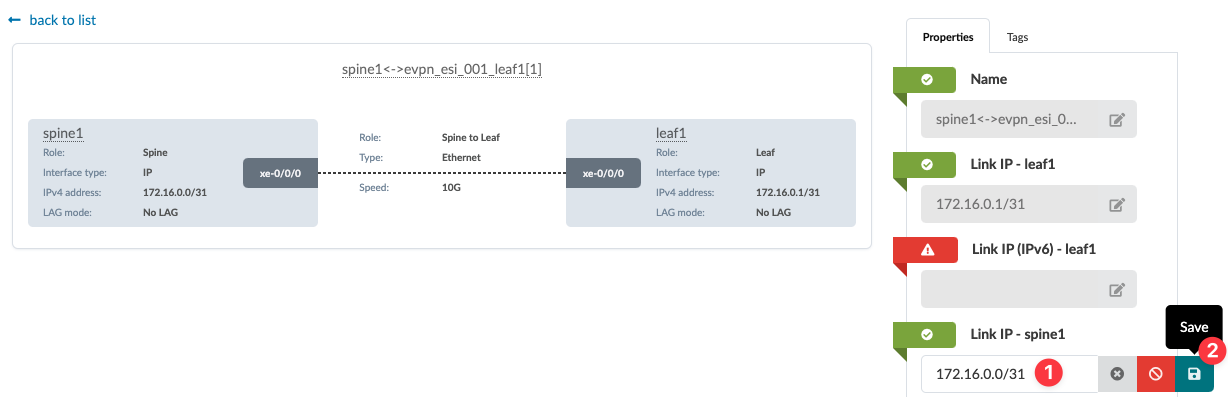

    Network configuration interface showing a 10G connection between spine1 (172.16.0.0/31) and leaf1 (172.16.0.1/31) with no LAG. IPv6 field for leaf1 is empty and marked with a warning.
The change is staged.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
