Change Assigned ASN (Datacenter)

Assign or change individual ASNs.

Normally, ASNs are pulled automatically from resource pools, but there may be times when you need to assign a specific ASN. In these cases, you can select the device and assign or change the ASN from the Properties tab.

To assign or change a specific ASN using the GUi:

  1. From the blueprint, navigate to Staged > Physical > Topology and select the device to update. (Alternatively, you can navigate to Staged > Physical > Nodes and select the device from the Nodes table.)
    Network management interface with staged configuration tab selected. Physical topology view shows spine-leaf switches and connected servers. Uncommitted changes layer active.
    The Selection panel on the right becomes active and populates with information about the selection.
  2. Click the Properties tab in the Selection panel, then click the Edit button for the ASN field.

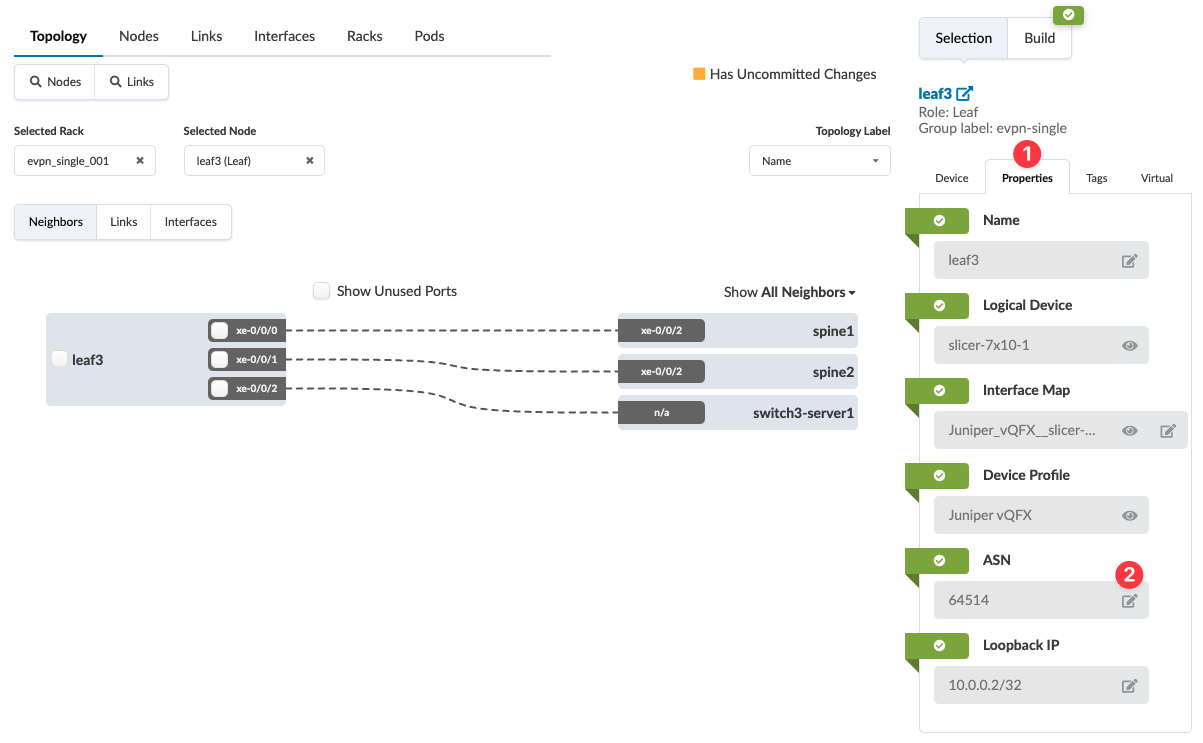

    Network topology interface showing node leaf3 with connections to spine1, spine2, and switch3-server1. Leaf3 details: Logical Device slicer-7x10-1, Device Profile Juniper vQFX, ASN 64514, Loopback IP 10.0.0.2/32. Uncommitted changes indicated.
    The ASN field becomes available to change.
  3. Enter the new ASN value.
  4. Click the Save button.

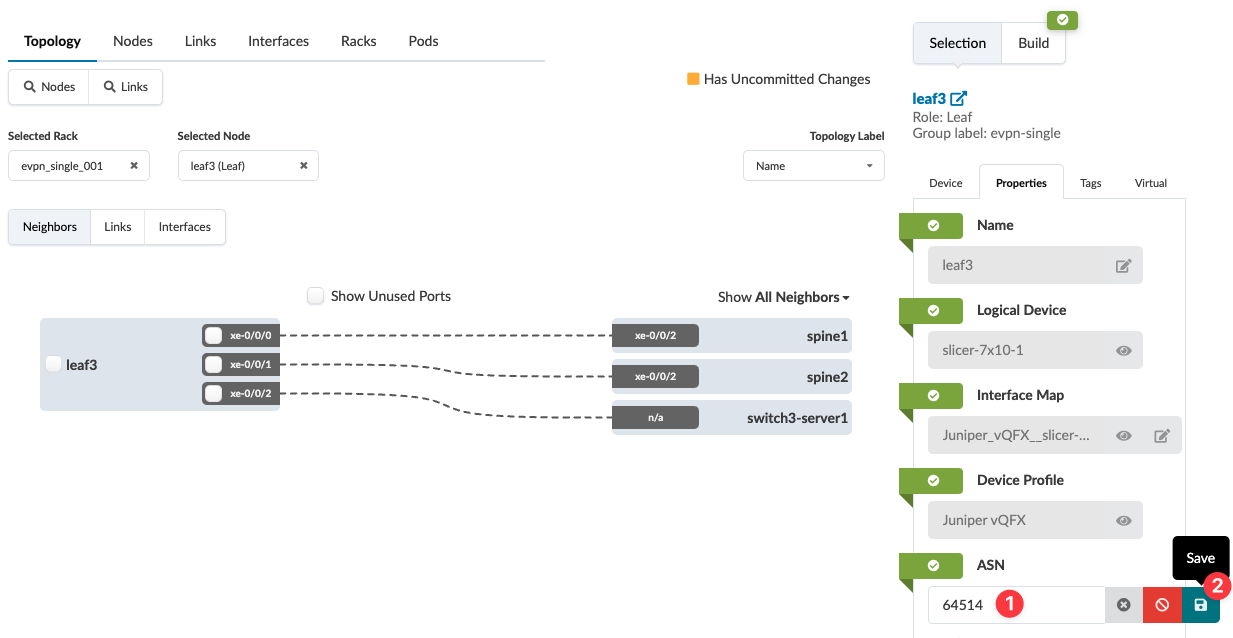

    Network topology interface showing node leaf3 in rack evpn_single_001 connected to spine1, spine2, and switch3-server1 with uncommitted changes.
The change is staged.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
