System Utilization Processor

Interface Counters Utilization Per System processor groups detailed interface counter data by system ID and then calculates aggregate TX and RX bits, their aggregate utilization and identifies the highest TX and RX utilizations among the interfaces.

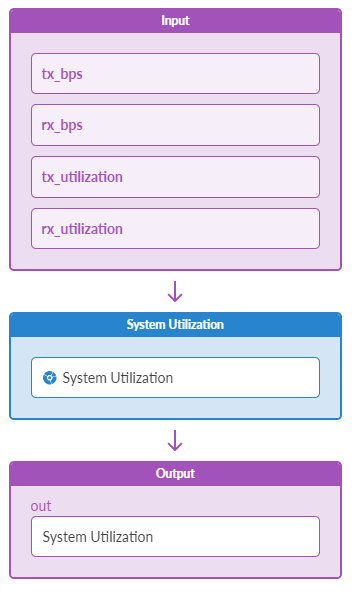

Flow diagram showing a process for system utilization: inputs include tx_bps, rx_bps, tx_utilization, and rx_utilization; processed in System Utilization; output is labeled out.

Configuration options:

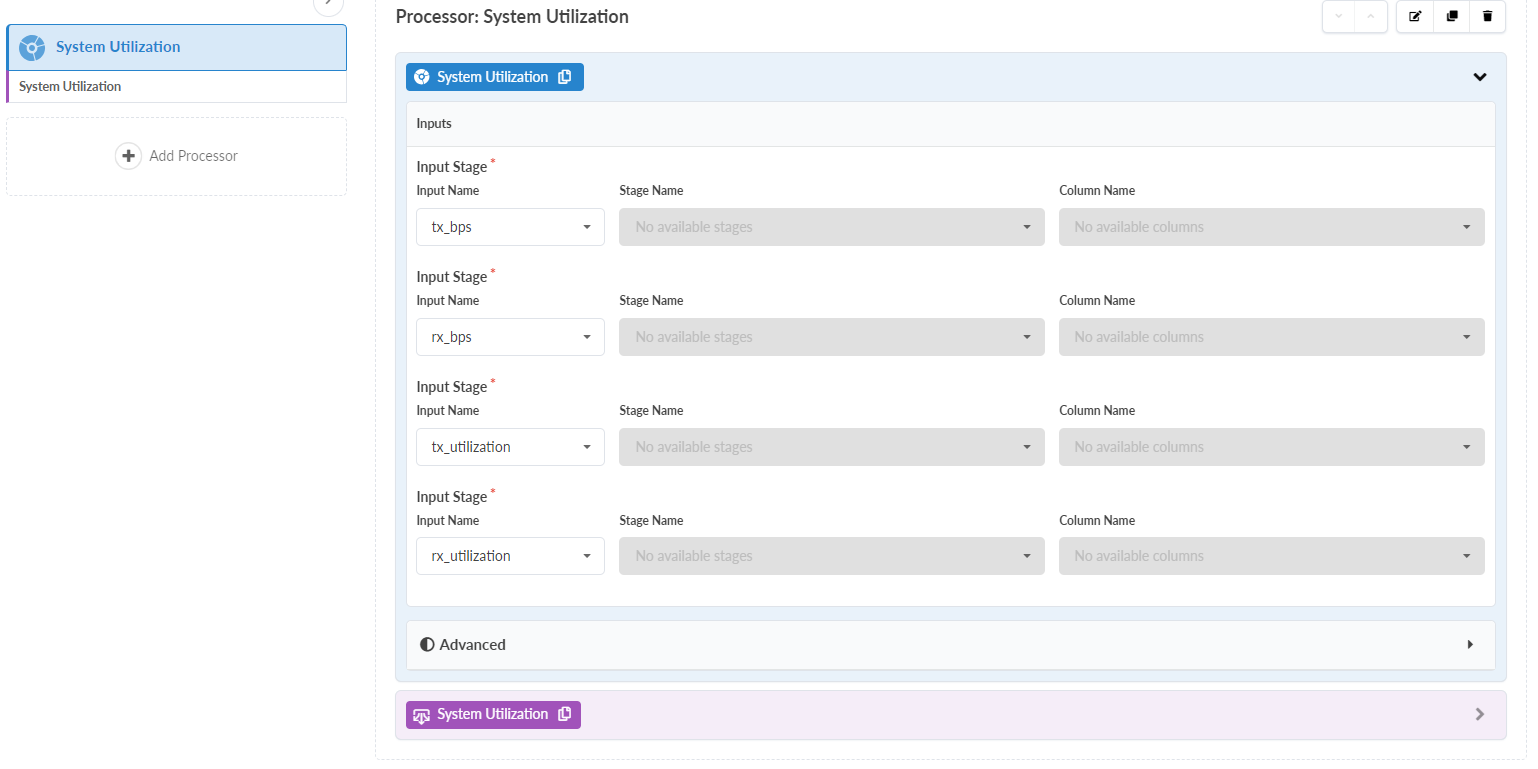

Configuration interface for System Utilization processor with inputs for tx_bps, rx_bps, tx_utilization, rx_utilization, advanced settings, and an Add Processor button.
