Periodic Average Processor

One number is created on output for each input. Each <period>, the output is set to the average of the input over the last <period>. This is not a weighted average.

Graph queries can optionally be used to fetch data from arbitrary nodes in the graph, such as property set nodes, and parametrize the probe.

Parameter Description
Input Types Table (number)
Output Types Table (number)
Period Size of the averaging period. (time in seconds, integer, or an expression that evaluates to time in seconds integer value)
Graph Query (graph_query)

One or more queries on graph specified as strings, or a list of such queries. (String will be deprecated in a future release.) Multiple queries should provide all the named nodes referenced by the expression fields (including additional_properties). Graph query is executed on the "operation" graph. Results of the queries can be accessed using the "query_result" variable with the appropriate index. For example, if querying property set nodes under name "ps", the result will be available as "query_result[0]["ps"]".

In collector processors (*_collector, if_counter) it is used to choose a set of nodes for further processing (for example, all leaf devices, or all interfaces between leaf and spine devices)

In other processors it is used for general parameterization and it is only supported as a list of queries.

graph_query: "node("system", role="leaf", name="system").
              out("hosted_interfaces").
              node("interface", name="iface").out("link").
              node("link", role="spine_leaf")"
graph_query: ["node("system", role="leaf", name="system")",
              "node("system", role="spine", name="system")"]

Non-collector processors containing the graph_query configuration parameter, can be parameterized to use data from arbitrary nodes in the graph, such as property set nodes. Property sets allow you to parameterize macro level SLAs for individual business units. In the example below, graph_query matches a node of type property_set with label probe_propset. It's accessed using the special query_result variable, where Index 0 means it's the first node in query results. If a query returned N nodes, they could be accessed using indices starting from 0 to N-1. ps is what the actual node is referred to in the query; the rest depends on the structure of the node. The int() casting is required because values of property_set nodes are strings. Here it's assumed that a property set node has the label probe_propset and that the value accumulate_duration was already created.

graph_query: [node("property_set", label="probe_propset", name="ps")]
duration: int(query_result[0]["ps"].values["accumulate_duration"])

Another example is a that probes can validate a compliance requirement; the compliance value may change over time and/or it can be used by more than one probe. Also, a probe can validate NOS versions on devices. In this case, property sets can be used to define the current NOS version requirement. If it changes tomorrow: change the property set value, instead of going under the probe stage.

Flow diagram illustrating input 'in' processed through 'Periodic Average' resulting in output 'Periodic Average'.
In the Add Processor window of the GUI, hover over the "Periodic Average" tooltip for a visual example of how the Periodic Average processor functions.

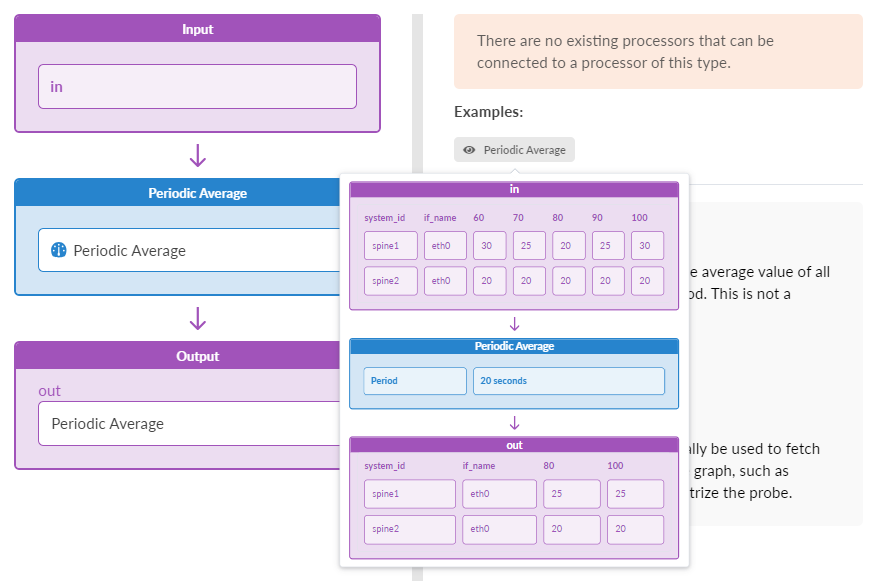

Data processing flow diagram showing input data with columns system_id, if_name, and values. Periodic Average processor calculates averages over 20 seconds, producing output with averaged values.

Example: Periodic Average

Assume the following input at time t=1

And following input at time t=1.5

And the following at time t=2.1

We would now have the following output:

This output is the average over the last discrete period of 2 seconds (time=0 to time=2). Notice that the average is not weighted by time; frequently-occuring closely-spaced samples will bias the average.

The next time the output would be updated would be at time t=4, in which case it would contain the average of the input over the range [t=2, t=4], a period of the configured two seconds.
