Optical Threshold Processor

The Optical Threshold processor is responsible for aggregating the data from the "Optical Xcvr" processor. It takes two stages:

  • Interface-related metrics

  • Lane-related metrics

Every stage contains certain false/true values like tx_power_has_low_warn, voltage_has_high_alarm, etc. true value means the threshold has been exceeded. false - the opposite.

The processor produces for every input interface just one false/true value. It's true if there is at least one input value equal to true in its input corresponding to this interface (including both interface and lanes).

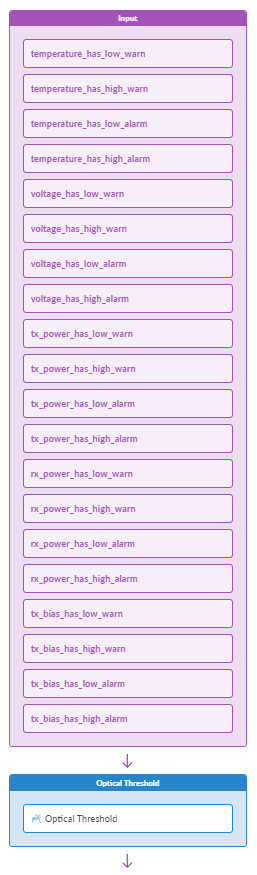

Flow diagram showing a process model for monitoring optical thresholds with input parameters of warnings and alarms for temperature, voltage, tx_power, rx_power, and tx_bias analyzed by an Optical Threshold block.
Configuration options:

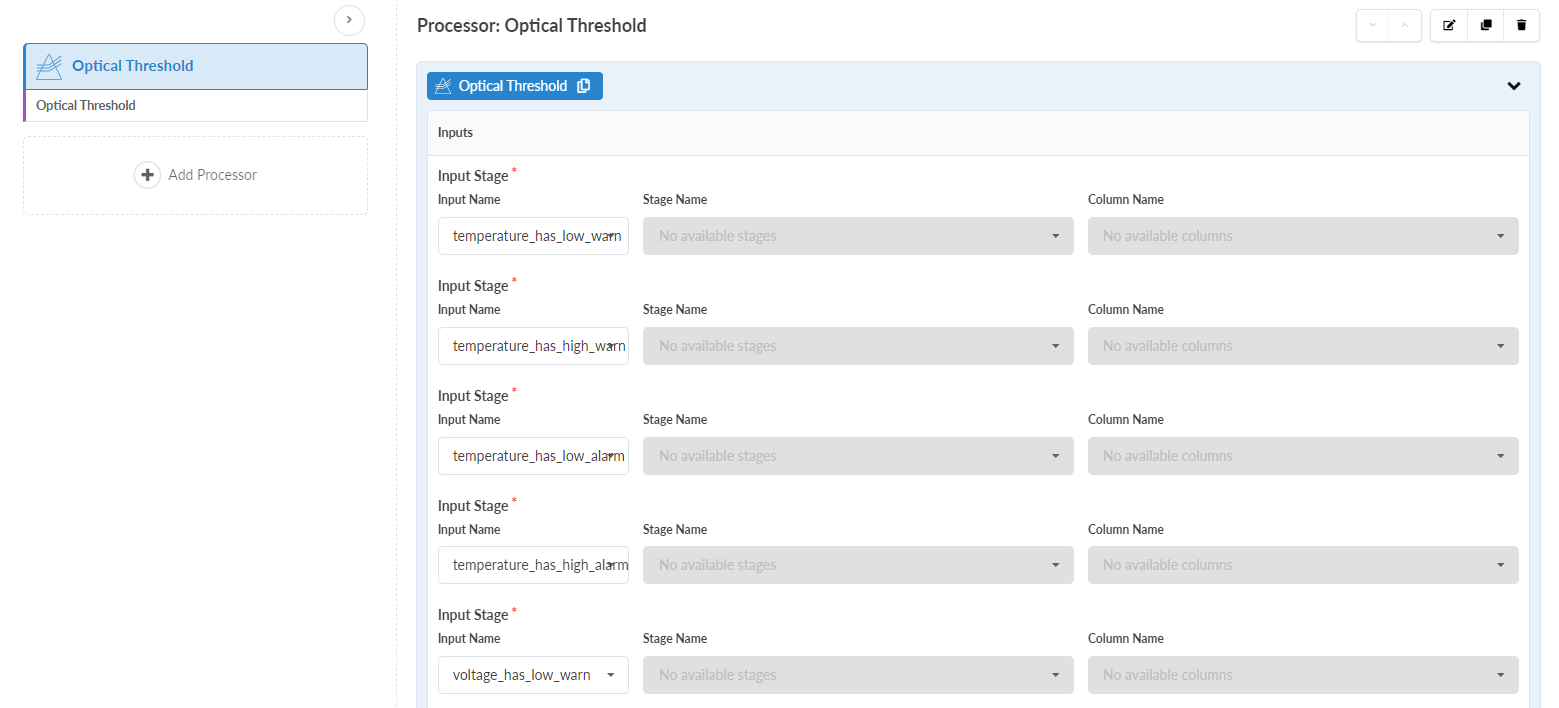

User interface for configuring Optical Threshold processor with input stages for temperature and voltage warnings and alarms. Fields for Stage Name and Column Name show no available options.
