Environment Processor

The Environment Processor collects metrics and statistics of the environmental elements including:

  • Power Supply:

    • Total units count and functioning units count

    • Status of each unit

    • Status of each fan in each unit

  • Fan:

    • Total fan tray count

    • Status and speed (RPM)

    • Airflow Direction

  • Temperature:

    • Sensor status and temperature measurement

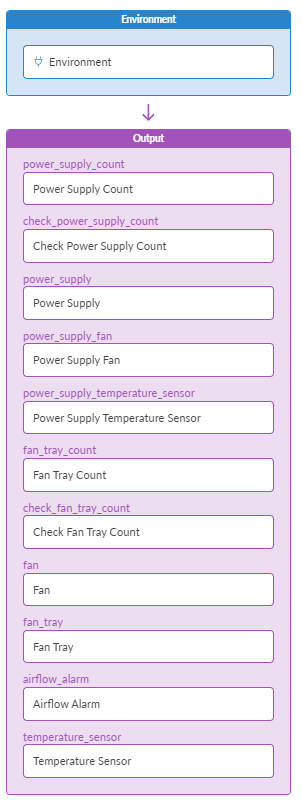

Flowchart of Environment system's Output section with components like Power Supply Count, Fan Tray Count, and Airflow Alarm.
From the Add Processor window in the GUI, clicking Add displays configuration options for the Environment Processor.

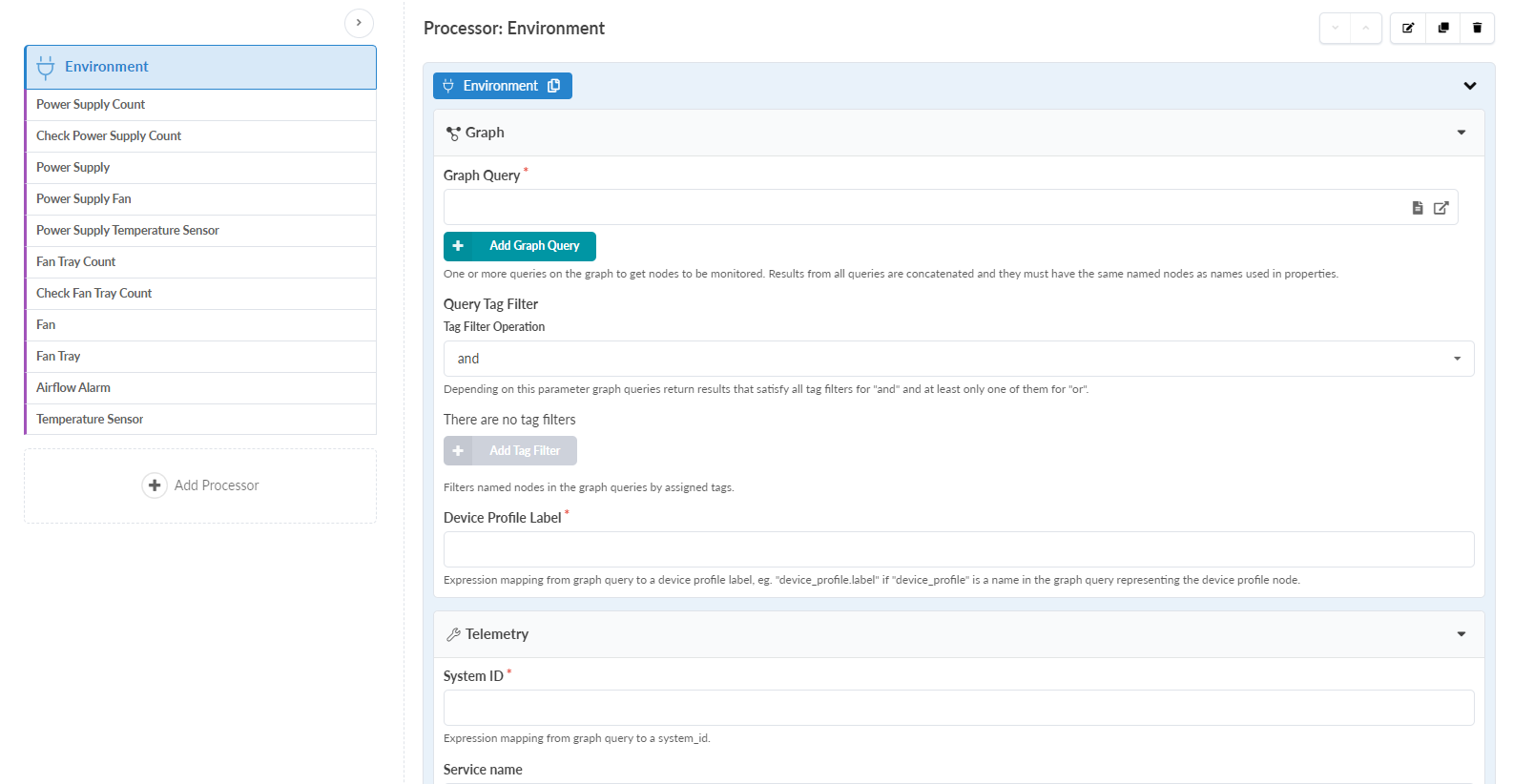

User interface for configuring the Environment processor, with options to add subcategories like power supply and fan metrics. Includes graph query setup, telemetry fields, device profile label mapping, and buttons for saving configurations.
