BGP Monitoring Probe

This probe is supported on Junos OS, Junos OS EVO, Arista EOS, Cisco NX-OS and SONiC). The BGP Monitoring probe shows BGP session status for all switches and raises anomalies for flapping BGP sessions. In Freeform blueprints, the probe also monitors and raises anomalies when BGP sessions are down, missing or unknown. (In Datacenter blueprints, BGP session up and down state is included with built-in telemetry, so it's not required in this probe.)

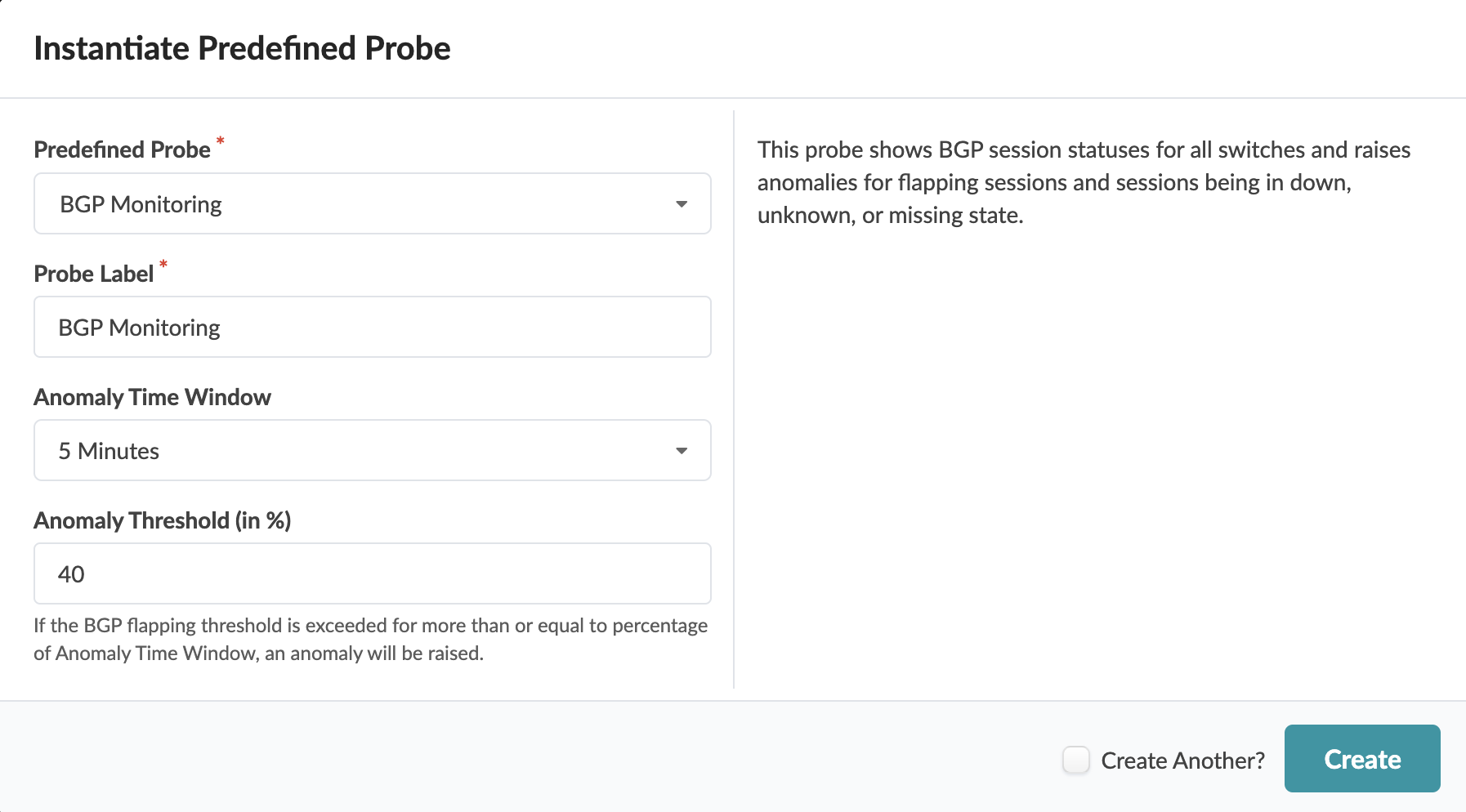

Configuring BGP Monitoring probe; fields include probe label, anomaly time window 5 minutes, anomaly threshold 40 percent. Options to create another and finalize configuration.

BGP Session

The BGP Session stage shows all BGP sessions for devices.

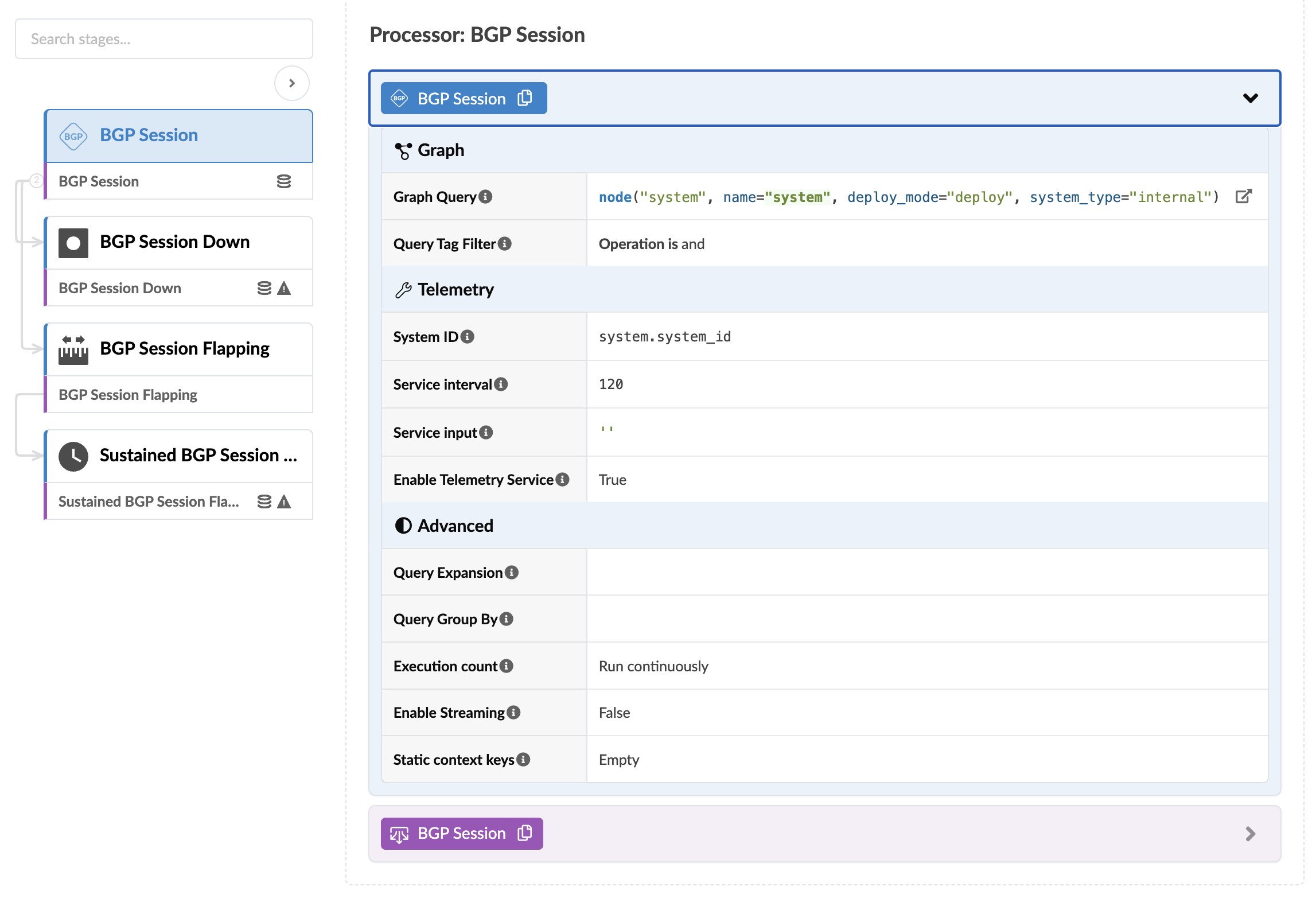

Configuration interface for BGP Session processor in a network monitoring system, showing stages and settings for BGP Session, including telemetry service enabled, 120-second collection interval, and continuous execution.

BGP Session Down

The BGP Session Down stage determines if the BGP session is not "up" and raises an anomaly accordingly. BGP Session Down is included only in Freeform blueprints. The processor includes the parameters as shown in the screenshot below:

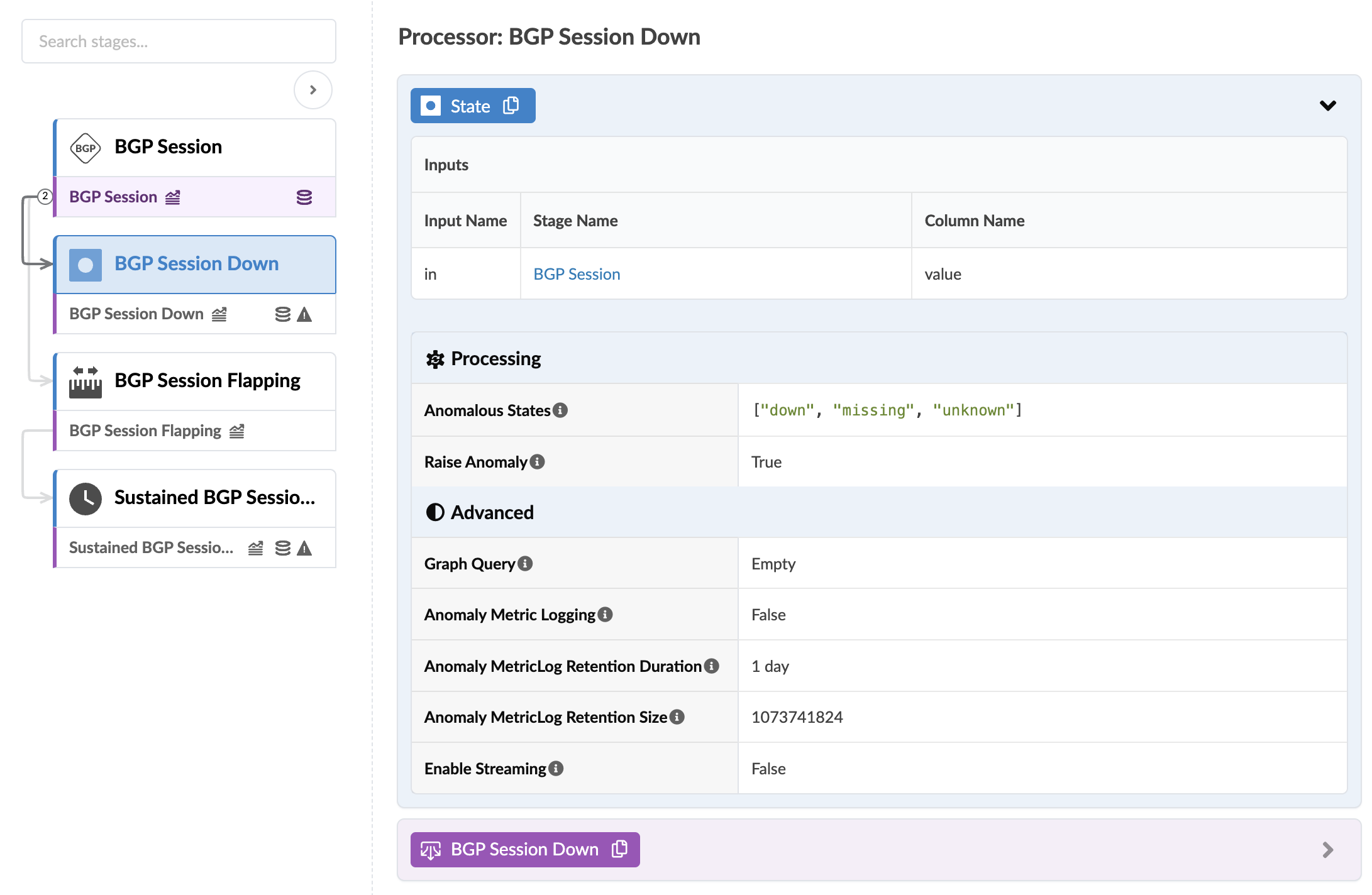

Configuration interface for BGP Session Down processor showing stages list and processor details including inputs, anomalous state settings, and retention settings.

BGP Session Flapping

The BGP Session Flapping stage checks if the BGP session has new flaps for the last service interval period. (2 minutes by default). The BGP Session Flapping processor includes the parameters as shown in the screenshot below:

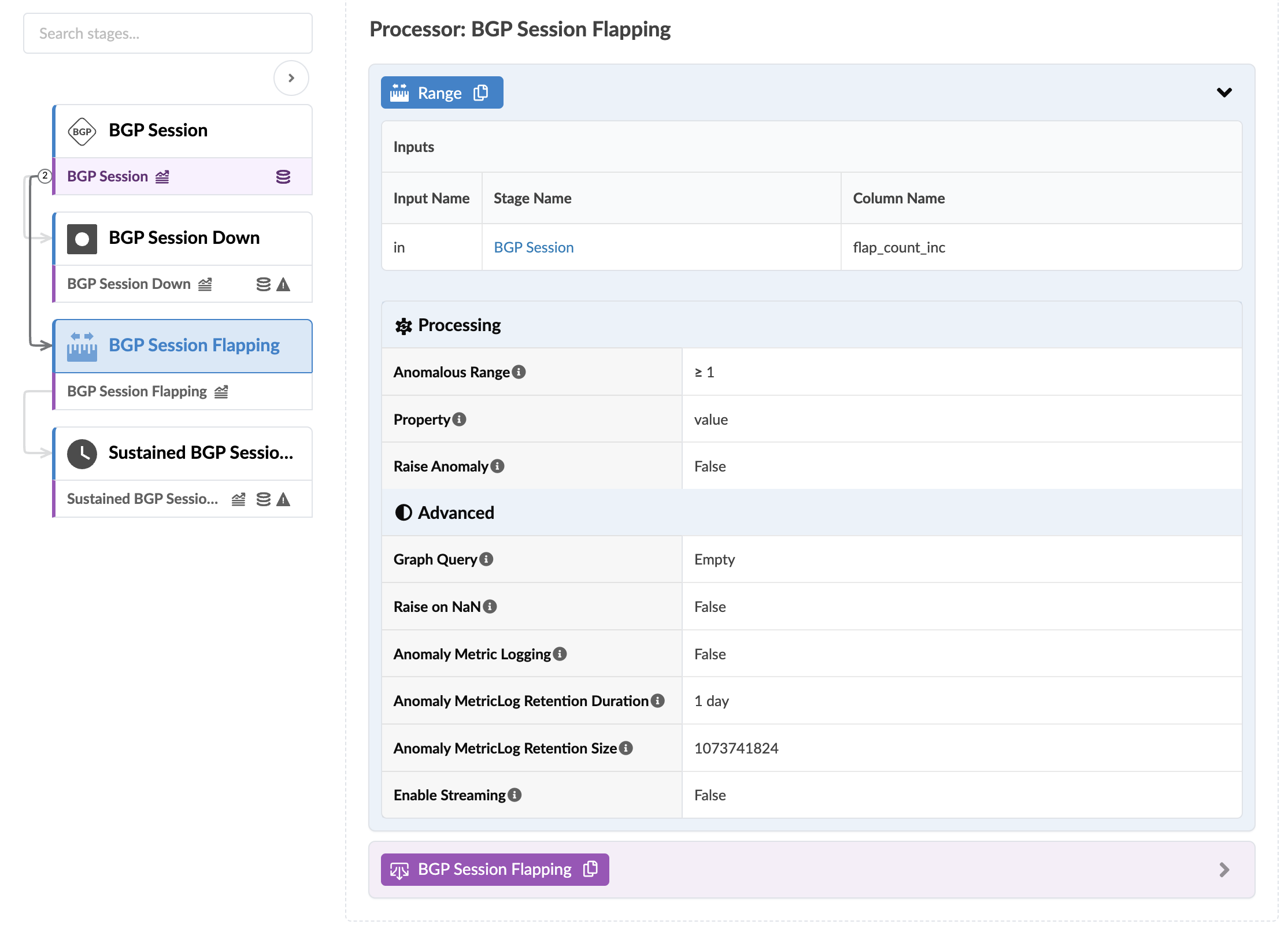

Configuration interface for a BGP session monitoring pipeline, highlighting the BGP Session Flapping stage with settings for anomalous range, inputs, and retention details.

Sustained BGP Session Flapping

The Sustained BGP Session Flapping stage checks if the BGP session has new flaps for the specified period of time. For example, assume there are BGP flaps between leaf1 and spine1 nodes. The fabric BGP session between these nodes generates new BGP flaps when the interface status is changed on spine1 that's connected to leaf1. When shutdown and up interface is performed seven times on spine 1, it creates seven flaps for fabric BGP sessions between leaf1 and spine1. The seven new flaps are added and two anomalies are raised.

The Sustained BGP Session Flapping processor includes the parameters as shown in the screenshot below:

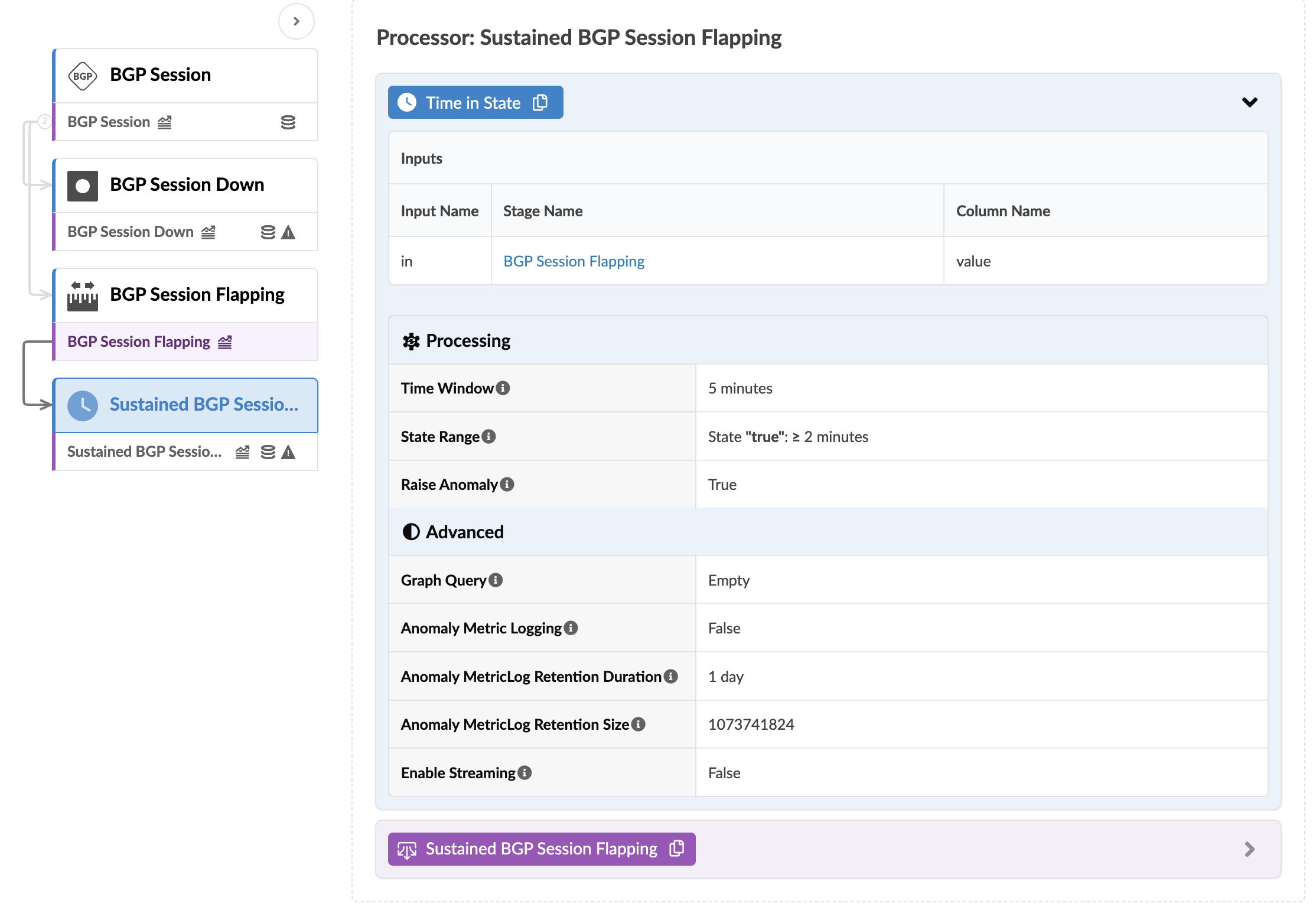

Configuration interface for monitoring BGP session states with a hierarchical view in the left panel and detailed settings for Sustained BGP Session Flapping in the right panel.

For more information about this probe, from the blueprint, navigate to Analytics > Probes, click Create Probe, then select Instantiate Predefined Probe from the drop-down list. Select the probe from the Predefined Probe drop-down list to see more details specific to the probe.
