Add Superspine per Plane

As a Day 2 operation, you can add superspines per plane on 5-stage blueprints.

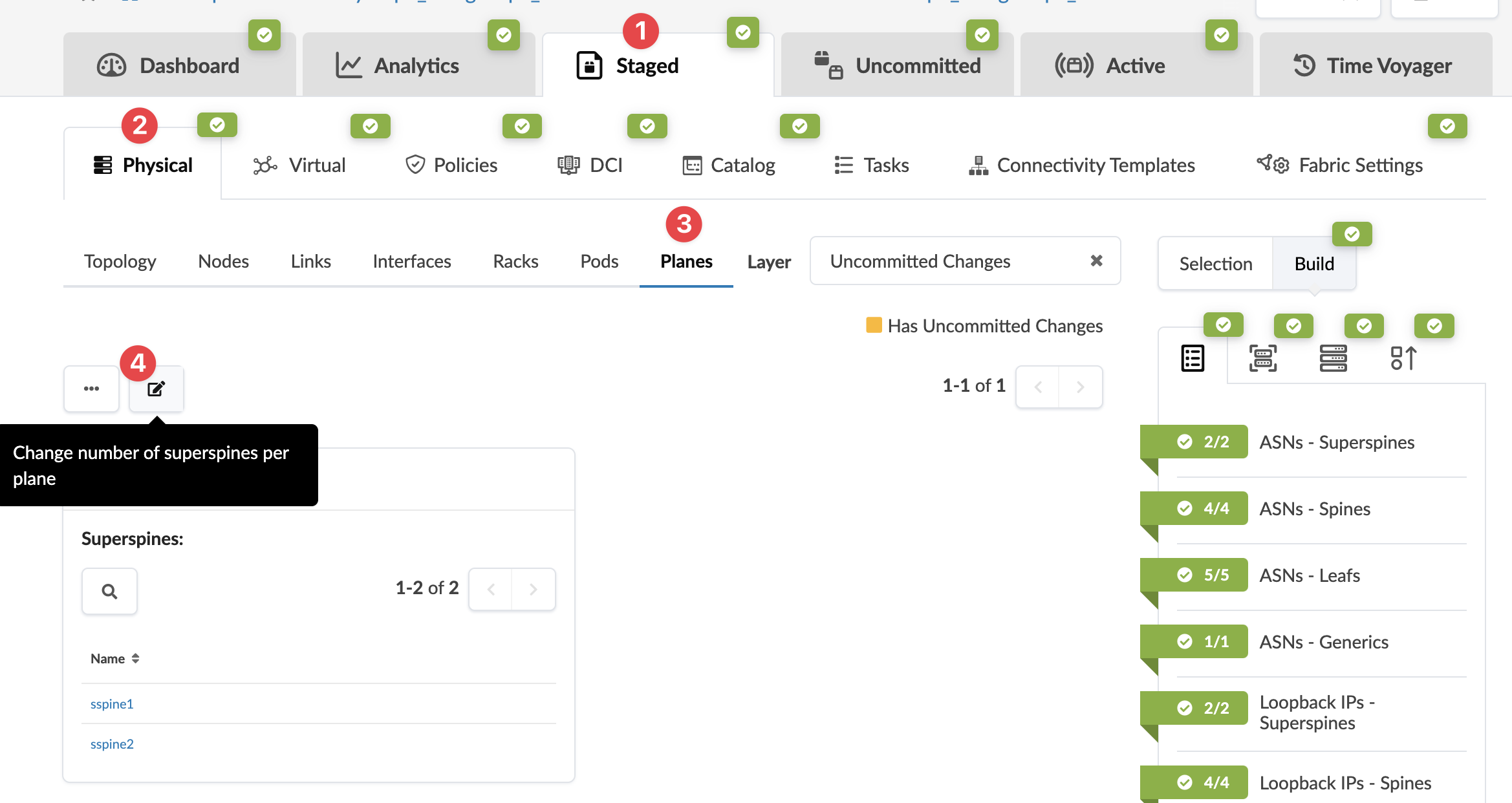

  1. From the 5-stage blueprint, navigate to Staged > Physical > Planes and click the Change number of superspines per plane button.

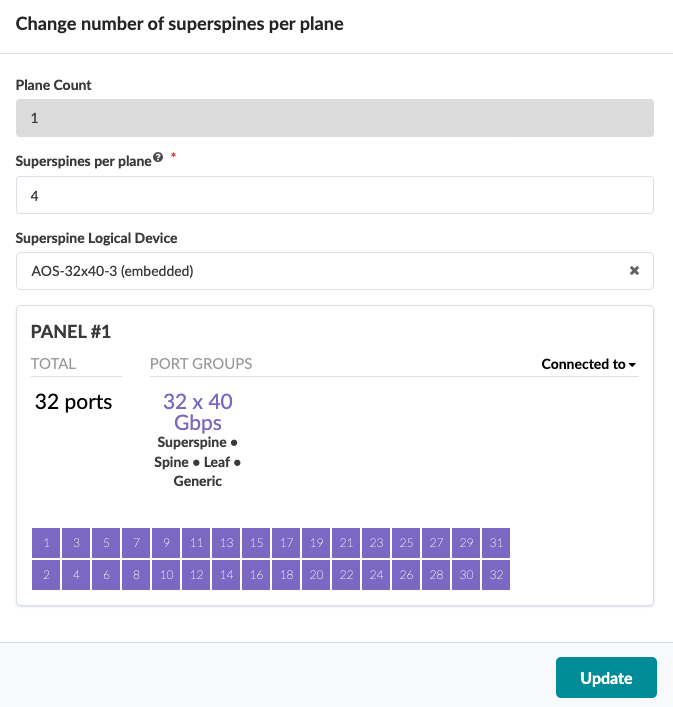

    The Change number of superspines per plane dialog opens.
  2. In the Superspines per plane field, enter the total number of superspines you want. You can only add superspines per plane. Plan carefully. After you add superspines, you won't be able to remove them later.
  3. Click Update to stage your changes and return to the Planes view.

When you're ready to activate changes, commit them from the Uncommitted tab.
