Add/Remove Connectivity Template Tags

You can add tags to connectivity templates in a few different ways.

When you create connectivity templates you have the option of adding tags. After you've created a connectivity template, you can add or remove tags to it as shown below.

Update Tags on One Connectivity Template

To update tags on a single connectivity template from the Connectivity Templates table using the GUI:
  1. From the blueprint, navigate to Staged > Connectivity Templates and click the Edit button in the Actions panel (on the right) for the connectivity template to update.
    Web-based network management interface with tabs Dashboard, Analytics, Staged with notification badge, Uncommitted, Active, and Time Voyager. Connectivity Templates section is selected; table lists virtual network items with columns Name, Description, Tags, Primitives, Status, and Actions. Edit button has notification badge. Add Template button and filter option available.
    The Edit Connectivity Template dialog opens
  2. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the CT and added to the blueprint catalog.

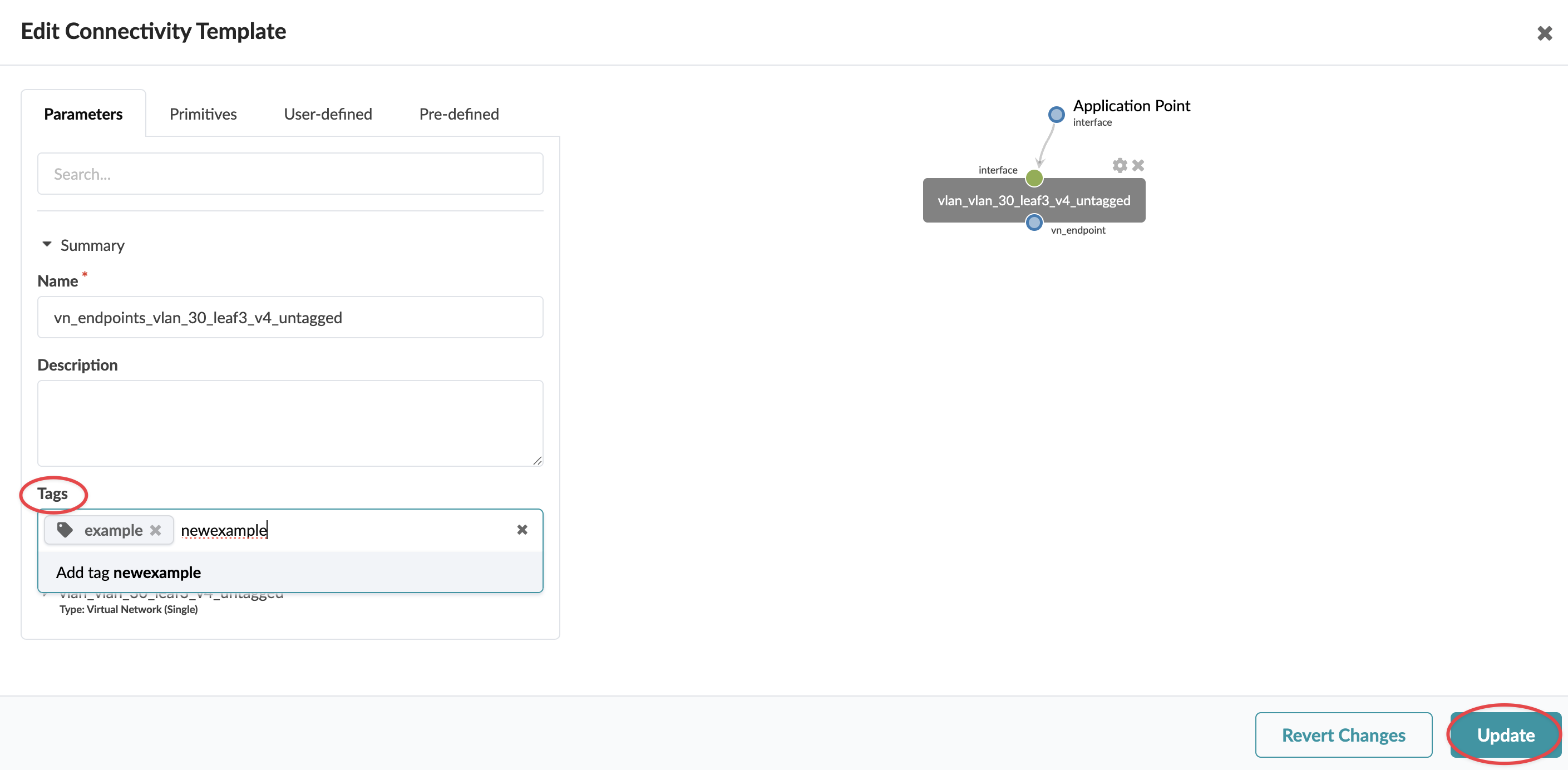

    Edit Connectivity Template interface with Parameters tab selected. Name field filled with vn_endpoints_vlan_30_leaf3_v4_untagged. Tags section contains example and newexample. Diagram shows Application Point connected to vlan_vlan_30_leaf3_v4_untagged. Revert Changes and Update buttons at bottom, Update circled in red.
  3. Click Update.
The updates are staged and you're returned to the connectivity templates table view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Connectivity Templates

To update tags on one or more connectivity templates from the Connectivity Templates table using the GUI:
  1. From the blueprint, navigate to Staged > Connectivity Templates, select one or more check boxes for the CT(s) that need updated tags. The Add/Remove Tags button appears above the table.

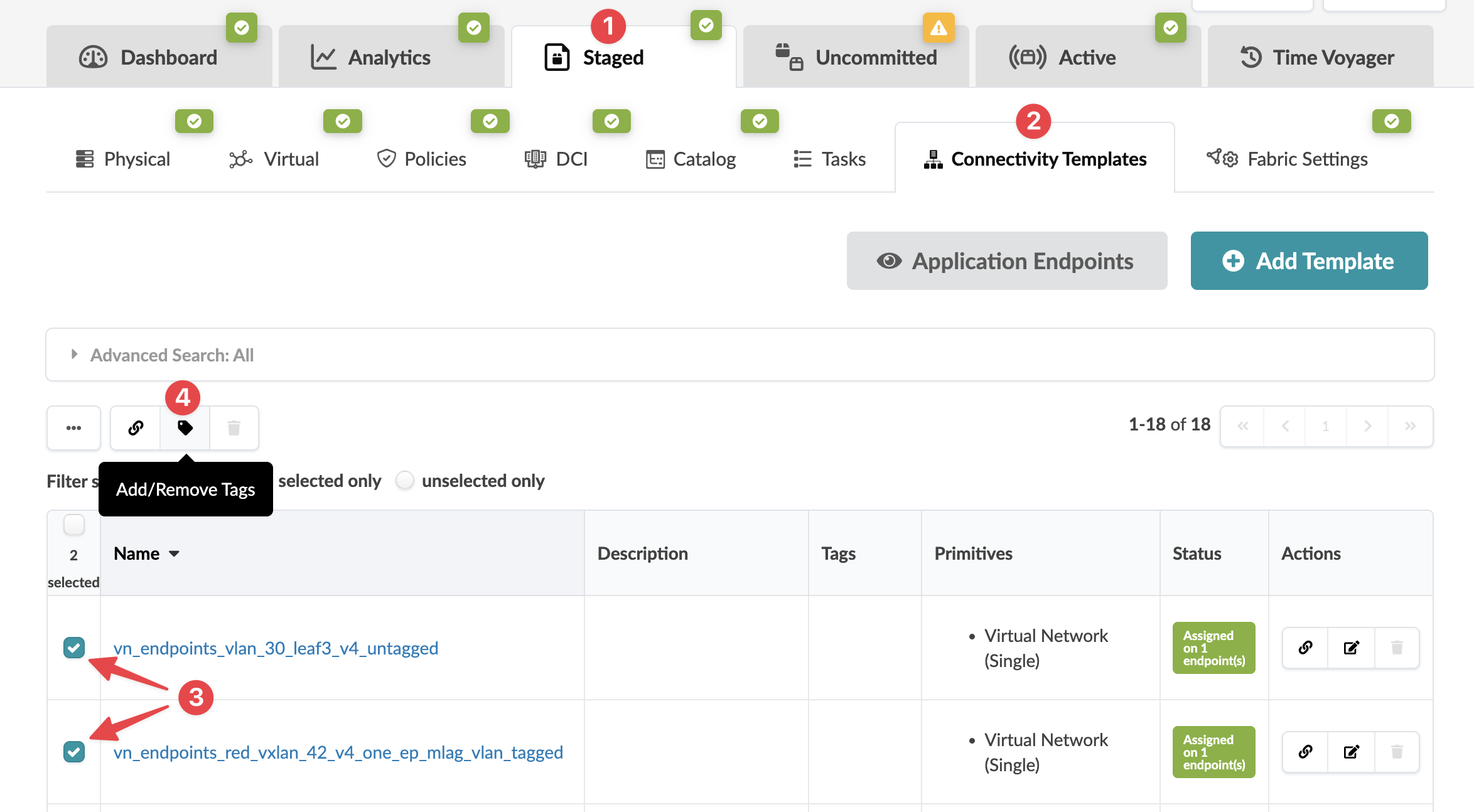

    User interface of a network management tool showing tabs for Dashboard, Analytics, Staged, Uncommitted, and Active. Sections include Physical, Virtual, Policies, DCI, Catalog, and Tasks. Connectivity Templates section is highlighted with options to add or remove tags, add templates, and manage application endpoints. Two selected items display details like name, description, tags, primitives, status, and actions.
  2. Click the Add/Remove Tags button.
    The Add/Remove Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the CTs and added to the blueprint catalog.

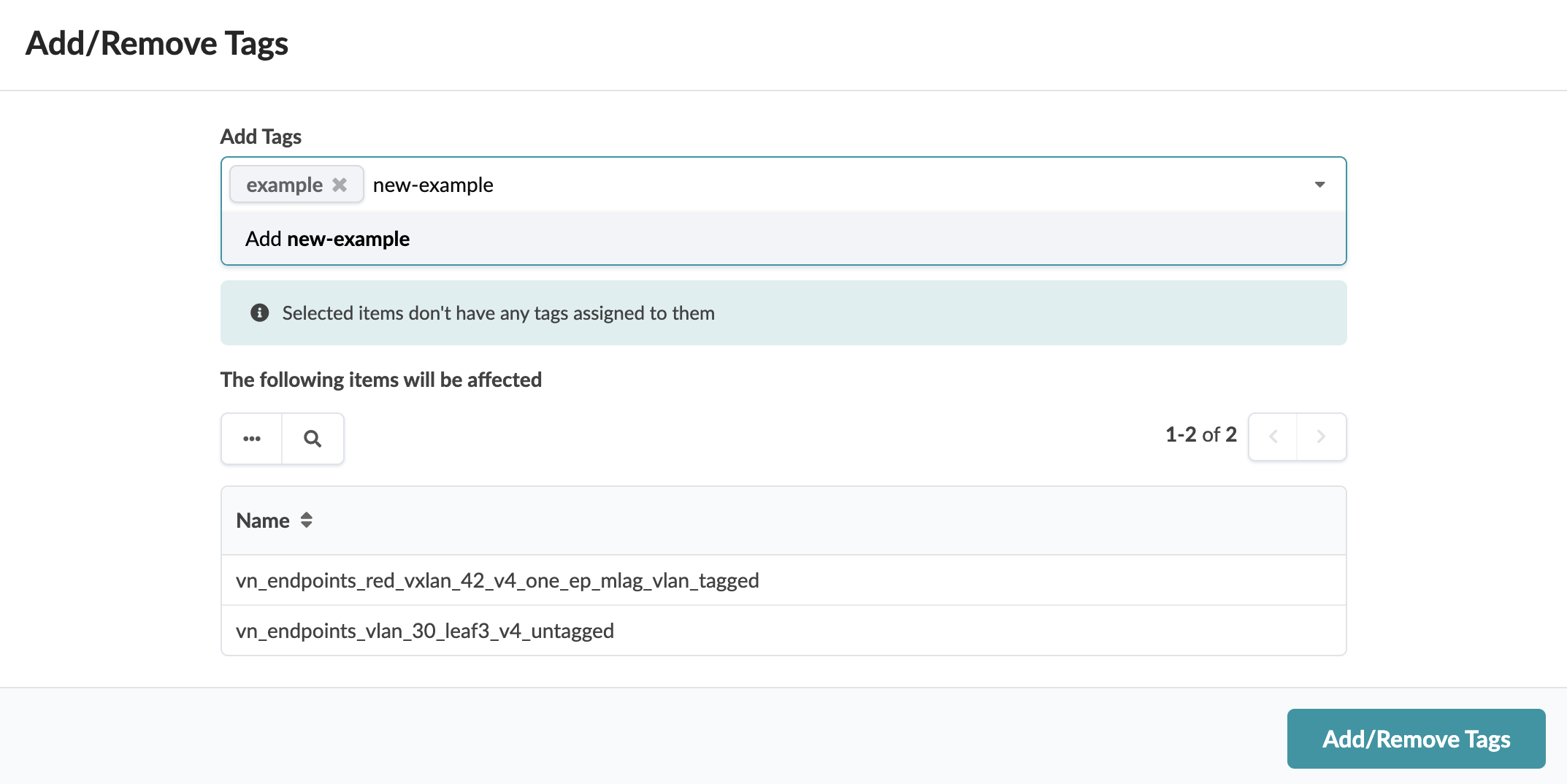

    User interface for adding or removing tags, including a dropdown to add new tags, a table listing items to be affected by tag changes, pagination controls, and a button to apply changes.
  4. Click Add/Remove Tags.
The updates are staged and you're returned to the Links table.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
