Edit Cabling Map (Freeform)

You can change one or more interfaces and IP addresses in the cabling map editor.

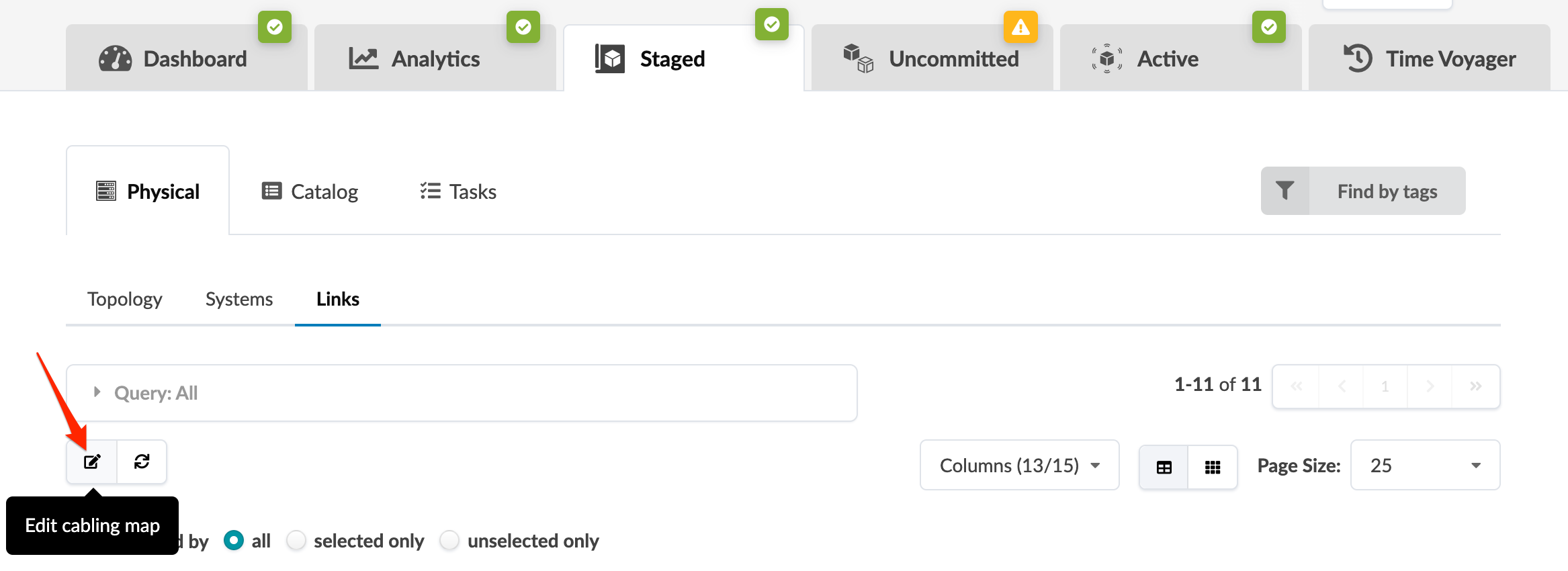

  1. From the blueprint, navigate to Staged > Physical > Links and click the Edit cabling map button.

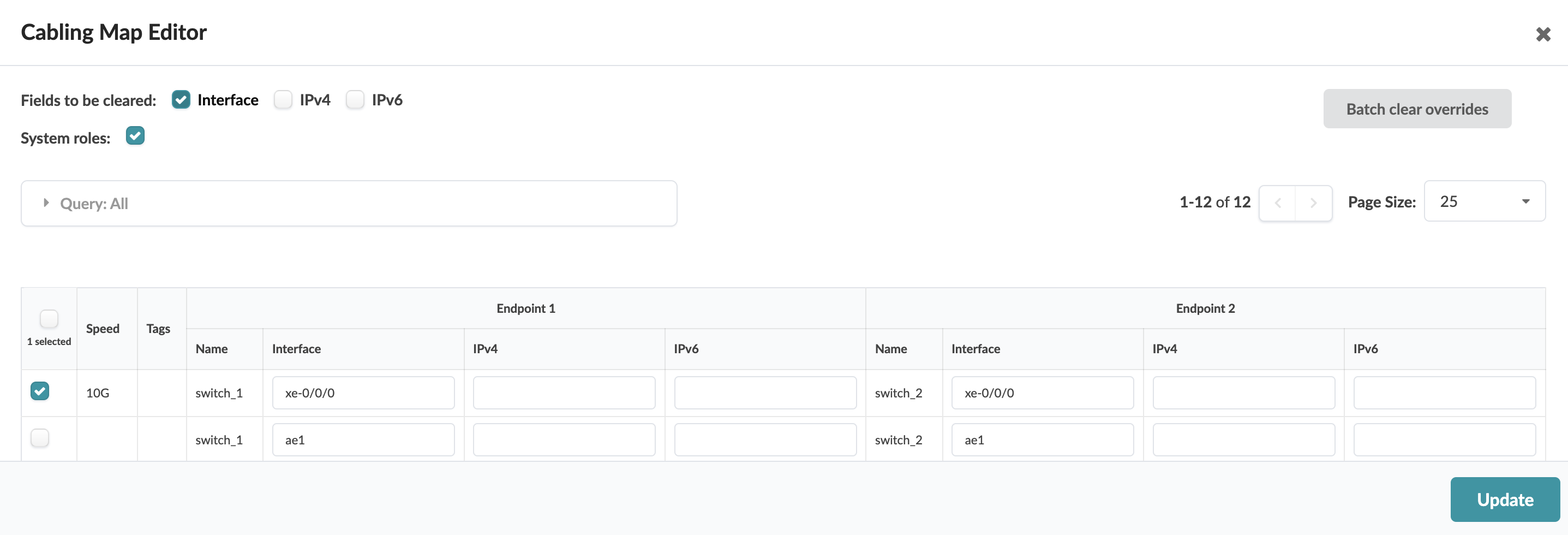

  2. In the cabling map editor, change interface names and/or IP addresses, as applicable.

    • You can use Batch clear override to clear all interfaces and IPv4/IPv6 values for selected links.

    • To drop the override for either an interface name or IPv4/IPv6 address, submit an empty value in the corresponding field.

  3. Click Update to stage your changes and return to the Links view.

Next Steps:

When you're ready to activate your changes, commit them from the Uncommitted tab.
