Step 1: Begin

In this guide, we provide a simple, three-step path, to quickly get you up and running with the Juniper Support Insight (JSI) solution. We’ve simplified and shortened the installation and configuration steps.

Meet Juniper Support Insights

Juniper® Support Insights (JSI) is a cloud-based support solution that gives IT and network operations teams operational insights into their networks. JSI aims to transform the customer support experience by providing Juniper and its customers with insights that help improve the network performance and uptime. JSI collects data from Junos OS-based devices on customer networks, correlates it with Juniper-specific knowledge (such as service contract status, and End of Life and End of Support states), and then curates that into actionable insights.

At a high level, getting started with the JSI solution involves the following steps:

  1. Installing and configuring a Lightweight Collector (LWC) device

  2. Onboarding a set of Junos devices to JSI to initiate data collection

  3. Viewing notifications about device onboarding and data collection

  4. Viewing operational dashboards and reports

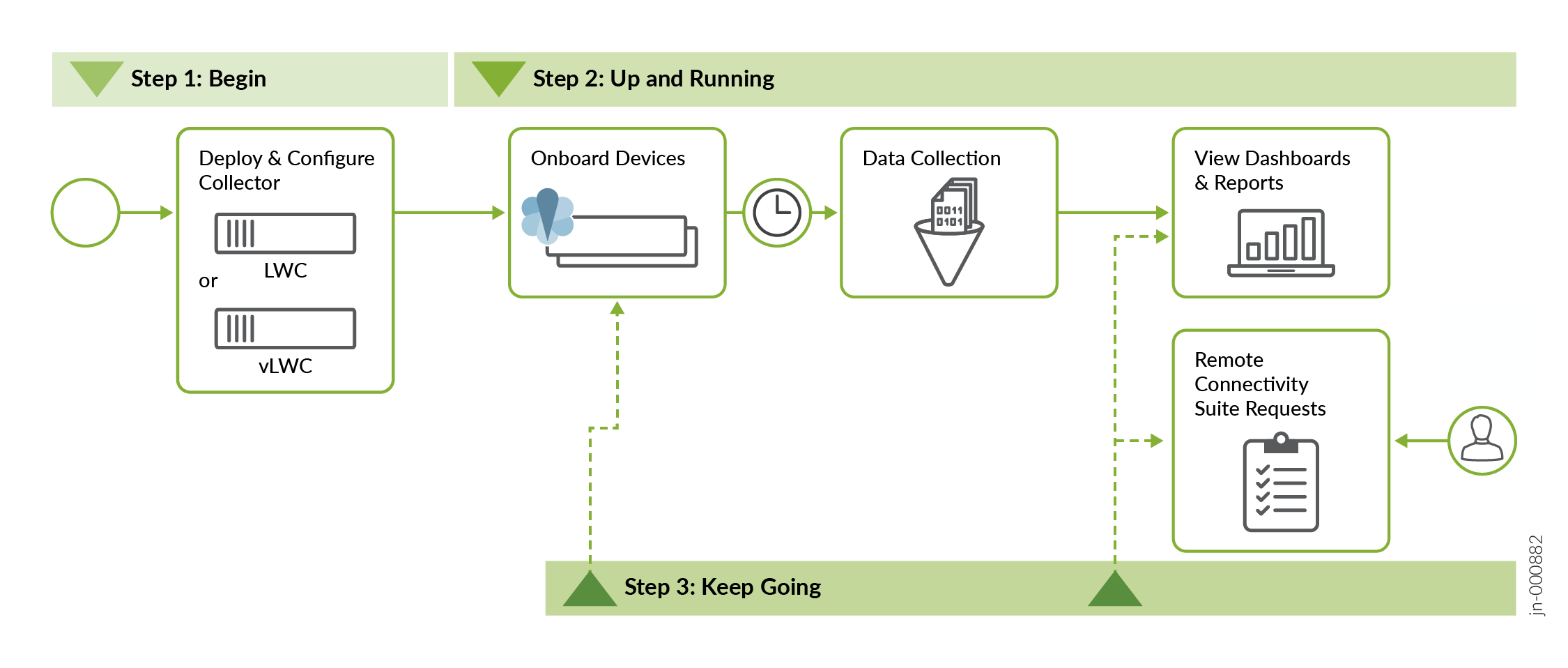

Flowchart illustrating a process for deploying and managing a system: Step 1 Begin with deploying a collector; Step 2 Up and Running with onboarding devices, data collection, viewing dashboards, and remote connectivity requests; Step 3 Keep Going indicating ongoing management and monitoring.
Note:

This Quick Start guide assumes that you have ordered the JSI-LWC solution, which is available as part of Juniper Care support service, and that you have an active contract. If you have not ordered the solution, please contact your Juniper Account or Services teams. Accessing and using JSI is subject to the Juniper Purchase and License Agreement (JPLA). For general information on JSI, see Juniper Support Insights Datasheet.

Install the Lightweight Collector

The Lightweight Collector (LWC) is a data collection tool that gathers operational data from Juniper devices on customer networks. JSI uses this data to provide IT and network operations teams with actionable operational insights into the onboarded Juniper devices on customer networks.

You can install the LWC on your desktop, in a two-post or four-post rack. The accessory kit that ships in the box has the brackets you need to install the LWC in a two-post rack. In this guide, we show you how to install the LWC in a two-post rack. If you need to install the LWC in a four-post rack, you’ll need to order a four-post rack mount kit.

What's in the Box?

  • The LWC device

  • AC power cord for your geographic location

  • AC power cord retainer clip

  • Two rack mount brackets

  • Eight mounting screws to attach the mounting brackets to the LWC

  • Two SFP modules (2 x CTP-SFP-1GE-T)

  • RJ-45 cable with a DB-9 to RJ-45 serial port adapter

  • Four rubber feet (for desktop installation)

What Else Do I Need?

  • Someone to help you mount the LWC in the rack.
  • Four rack mount screws to secure the mounting brackets to the rack
  • A number 2 Phillips (+) screwdriver

Mount a Lightweight Collector on Two Posts in a Rack

You can mount a Lightweight Collector (LWC) on two posts of a 19-in. rack (either a two-post or a four-post rack).

Here's how to mount the LWC on two posts in a rack:

  1. Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building structure.
  2. Remove the device from the shipping carton.
  3. Read General Safety Guidelines and Warnings.
  4. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
  5. Secure the mounting brackets to the sides of the LWC using eight screws and the screwdriver. You’ll notice there are three locations on the side panel where you can attach the mounting brackets: front, center, and rear. Attach the mounting brackets to the location that best suits where you want the LWC to sit in the rack.

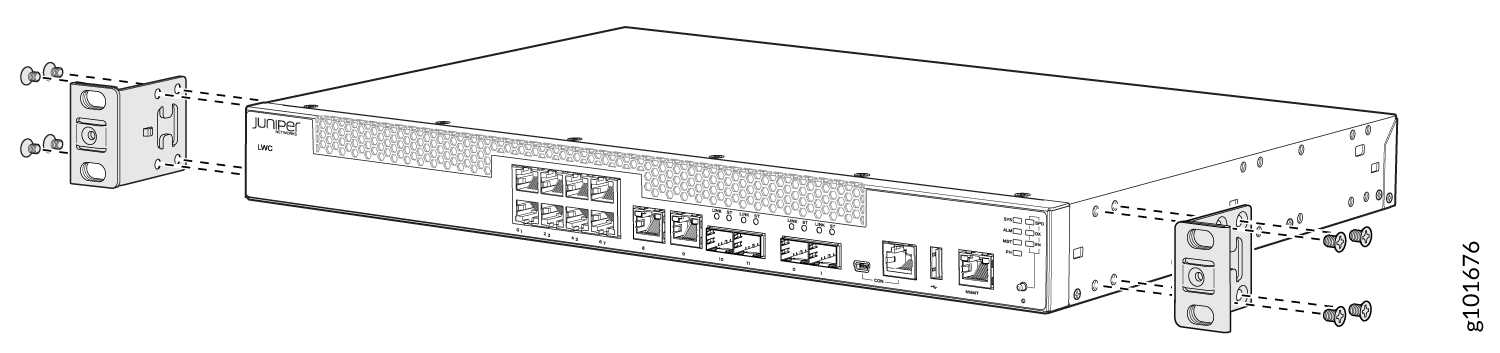

    Network device with mounting brackets attached using screws, showing Ethernet and SFP ports, status lights, and labeled Juniper and LWC for rack installation.

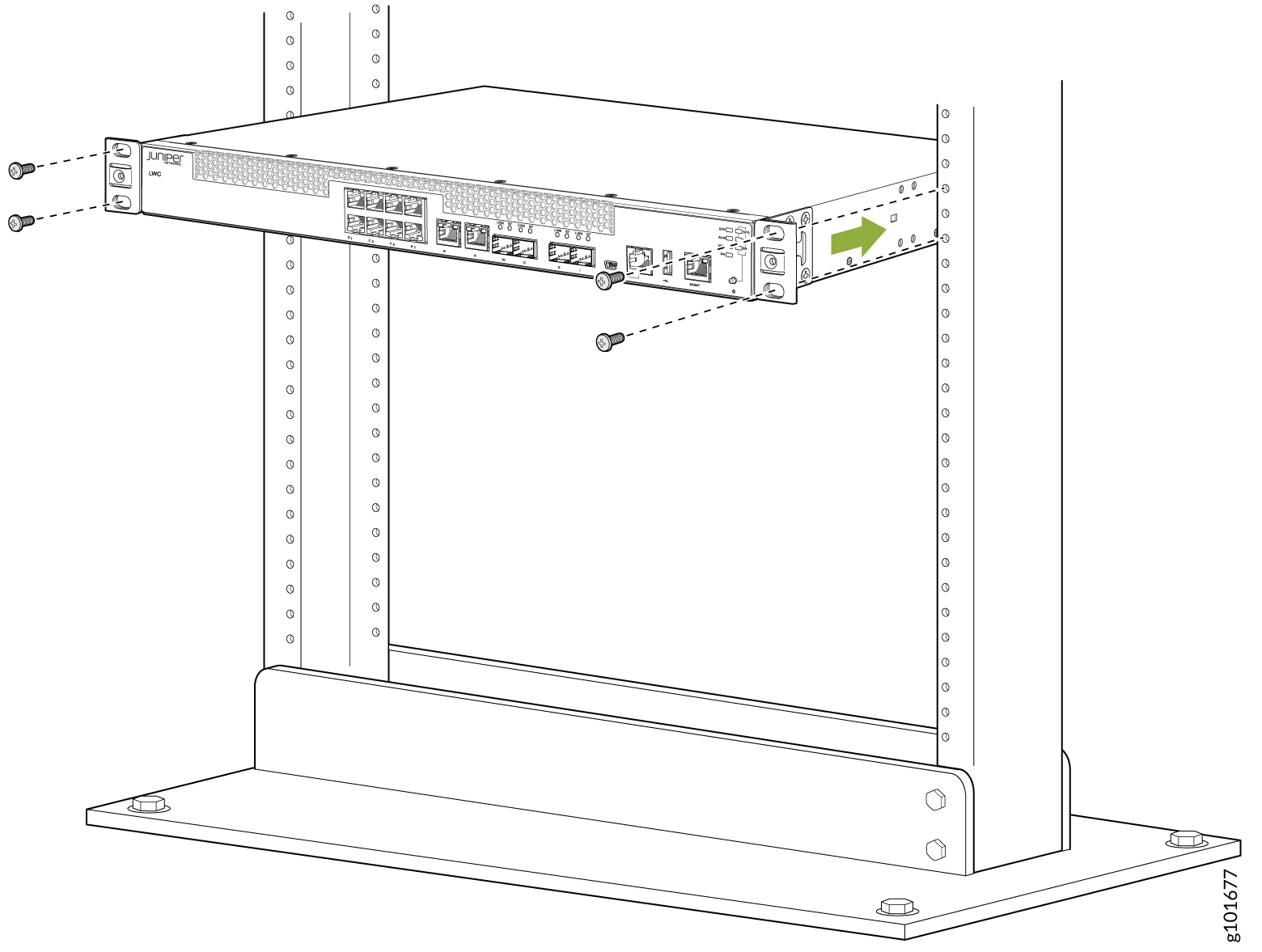

  6. Lift the LWC and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack rail, making sure the LWC is level.
    Juniper Networks device labeled JMC being installed into a rack with screws; front panel has multiple network ports.
  7. While you’re holding the LWC in place, have a second person insert and tighten the rack mount screws to secure the mounting brackets to the rack rails. Make sure they tighten the screws in the two bottom holes first and then tighten the screws in the two top holes.
  8. Check that the mounting brackets on each side of the rack are level.

Power On

  1. Attach a grounding cable to earth ground and then attach it to the Lightweight Collector's (LWC's) grounding points.
  2. Turn off the power switch on the LWC rear panel.
  3. On the rear panel, insert the L-shaped ends of the power cord retainer clip into the holes in the bracket on the power socket. The power cord retainer clip extends out of the chassis by 3 inches.
  4. Insert the power cord coupler firmly into the power socket.

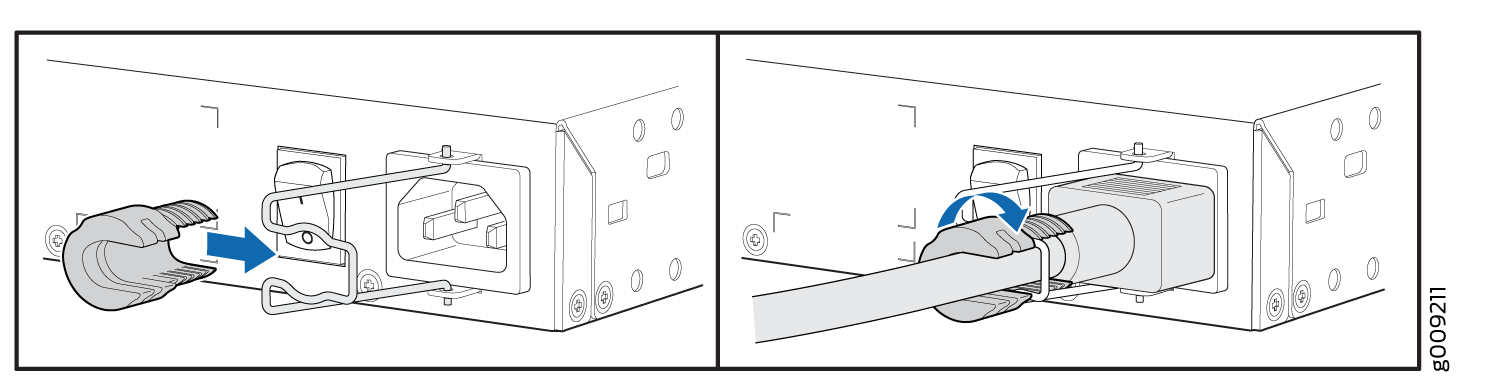

  5. Push the power cord into the slot in the adjustment nut of the power cord retainer clip. Turn the nut until it is tight against the base of the coupler and the slot in the nut is turned 90° from the top of the device.Align the cable connector with the device port and secure it by twisting or locking as shown by the blue arrows.
  6. If the AC power source outlet has a power switch, turn it off.
  7. Plug in the AC power cord to the AC power source outlet.
  8. Turn on the power switch on the LWC's rear panel.
  9. If the AC power source outlet has a power switch, turn it on.
  10. Verify that the power LED on the LWC front panel is green.

Connect the Lightweight Collector to the Networks

The Lightweight Collector (LWC) uses an internal network port to access the Juniper devices on your network, and an external network port to access Juniper Cloud.

Here's how to connect the LWC to the internal and external network:

  1. Connect the internal network to the 1/10-Gigabit SFP+ port 0 on the LWC. The interface name is xe-0/0/12.
  2. Connect the external network to the 1/10-Gigabit SFP+ port 1 on the LWC. The interface name is xe-0/0/13.

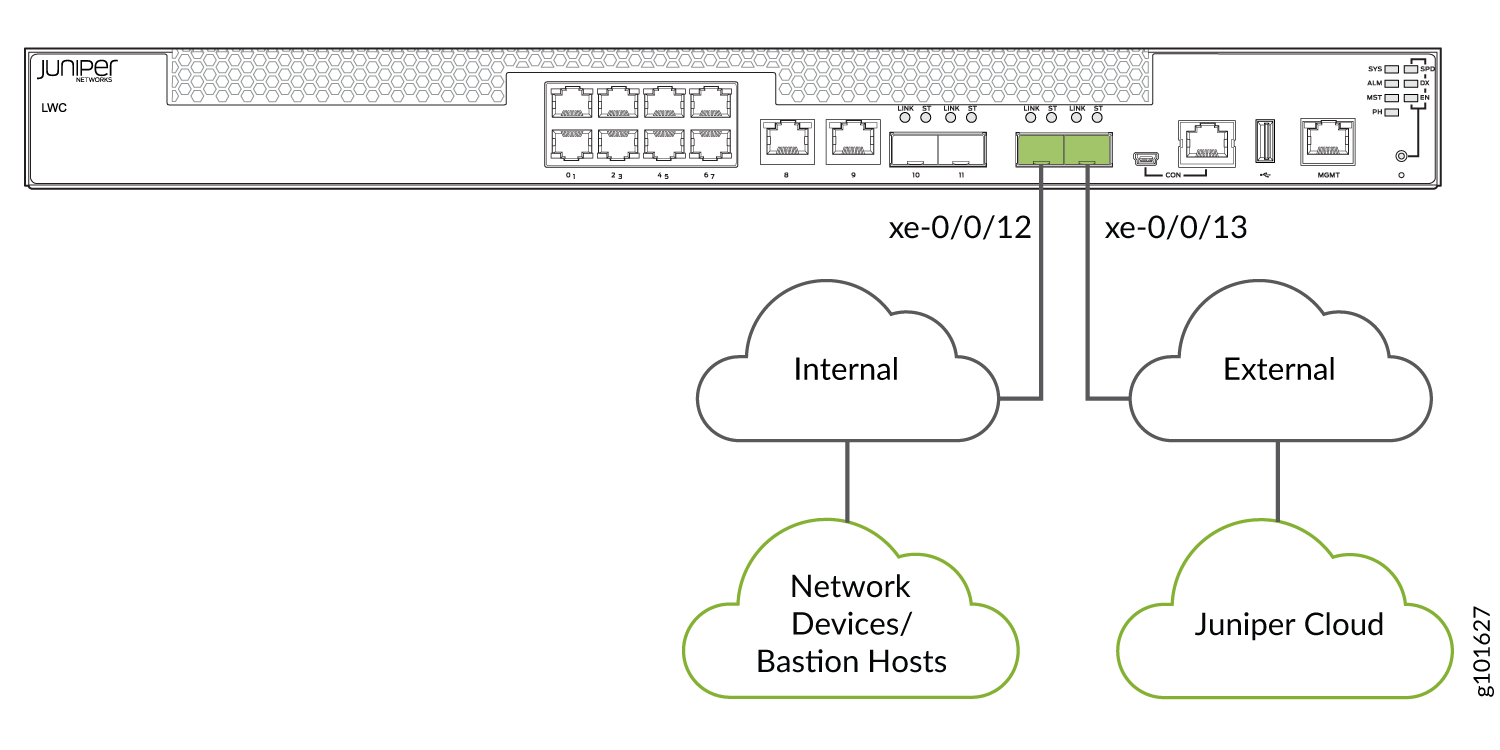

Network diagram showing a Juniper device labeled LWC bridging Internal and External clouds. Internal connects to Network Devices/Bastion Hosts, External connects to Juniper Cloud.

Configure the Lightweight Collector

The LWC is preconfigured to support IPv4 and Dynamic Host Configuration Protocol (DHCP) on both the internal and external network ports. When you power on the LWC after completing the required cabling, a zero touch experience (ZTE) process to provision the device is initiated. Successful completion of the ZTE results in the device establishing IP connectivity on both the ports. It also results in the external port on the device establishing connectivity to Juniper Cloud via. discoverable reachability to the Internet. If the device fails to automatically establish IP connectivity and reachability to the Internet, you must configure the LWC device manually, by using the LWC captive portal.

Note:

You must connect to the LWC captive portal through the ge-0/0/0 interface from a local IP address.

Accessing the captive portal from a browser will fail if the connection request originates from a non-local network.

Before you configure the Lightweight Collector (LWC), refer to the Internal and External Network Requirements.

Internal and External Network Requirements

The LWC device requires:

  • An internal network port (interface xe-0/0/12) that connects the LWC to the Juniper devices on the network.
  • An external network port (interface xe-0/0/13) that connects the LWC to the Juniper Virtual Private Cloud.

Before connecting the LWC to the internal network, ensure that you have:

  • A DHCP or static IP address.
  • IP connectivity to the Domain Name Server (DNS), all the direct devices on the network, and bastion hosts (if applicable) used to access the devices.
    Note:

    Bastion hosts utilize a SOCKS5 proxy server to reach target devices in the customer's network. Bastion hosts also support connection hopping, where an SSH session is first established with a customer's Linux-based device, which then initiates a subsequent SSH session to the target device.

  • Enabled NETCONF in the Junos OS configuration of all target Juniper devices. The LWC uses SSH credentials to connect to the devices on the network and, if used, bastion hosts.

    See also Establish an SSH Connection for a NETCONF Session.

Before connecting the LWC to the external network, ensure that you have the following ready:

  • A DHCP or static IP address.
  • A DNS server in case you have selected a static address. In case of any subsequent change to the DNS, you must inform Juniper about it and get it updated. Otherwise, the LWC might lose connectivity to the external endpoints.

    The LWC supports real static, private static, or DHCP addresses. It prefers Network Address Translation (NAT).

  • Accessibility to the DNS and IP addresses specified in Table 1 through the IP addresses assigned to xe-0/0/13 on the LWC.
Note: The internal and external interfaces must each have unique DNS entries.

Ensure that these interfaces can reach their respective DNS servers over both UDP and TCP on port 53.

Table 1: Outbound Connectivity Requirements
Description DNS Name IP Address Port
Juniper cloud AWSProxy-prod.jssprod.junipercloud.net 52.223.32.79, 35.71.174.221, 35.164.173.102, 52.26.8.178, 54.149.201.209 443

The internal and external interfaces must be assigned IP addresses from different subnets.

Configure the LWC Manually

Here's how to configure the LWC device manually, by using the LWC captive portal:

  1. Disconnect your computer from the Internet.

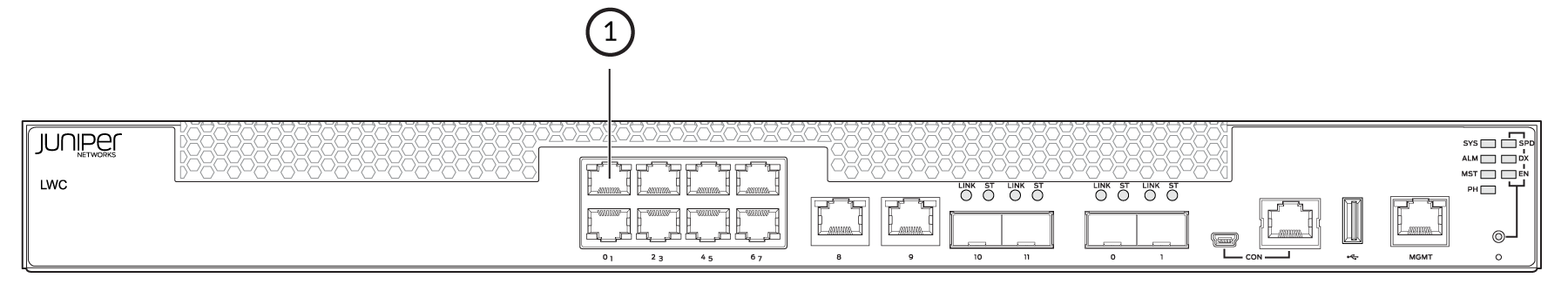

  2. Connect the computer to the port ge-0/0/0 on the LWC (labeled as 1 in the image below) using an Ethernet cable (RJ-45). The LWC assigns an IP address to the Ethernet interface of your computer through DHCP.

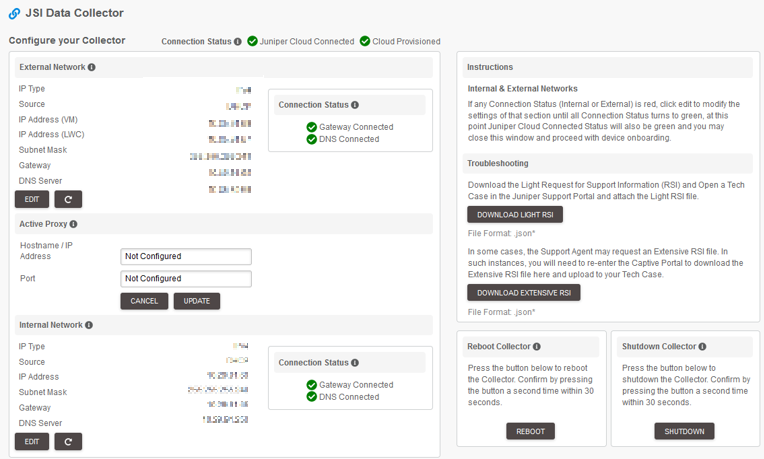

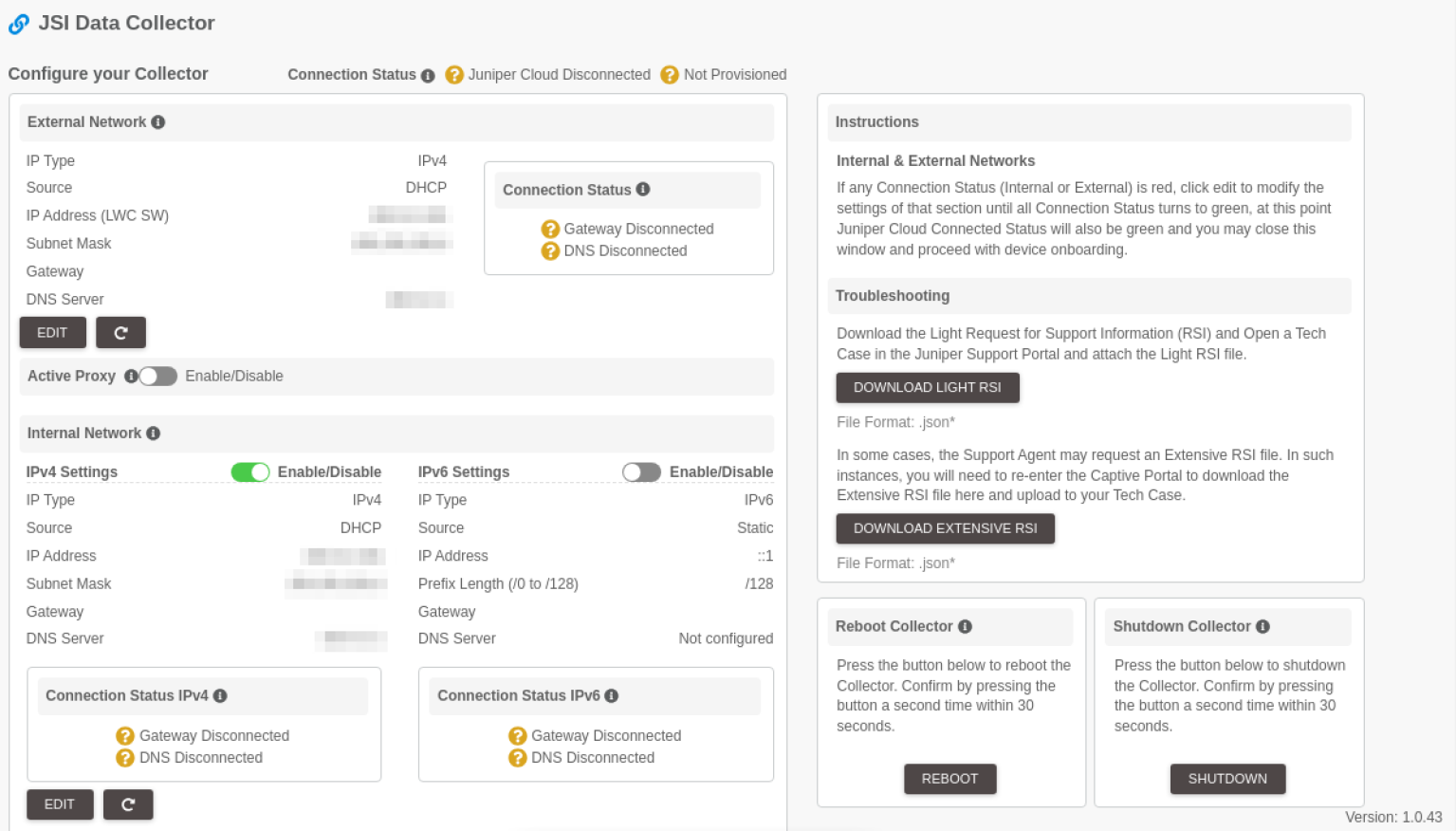

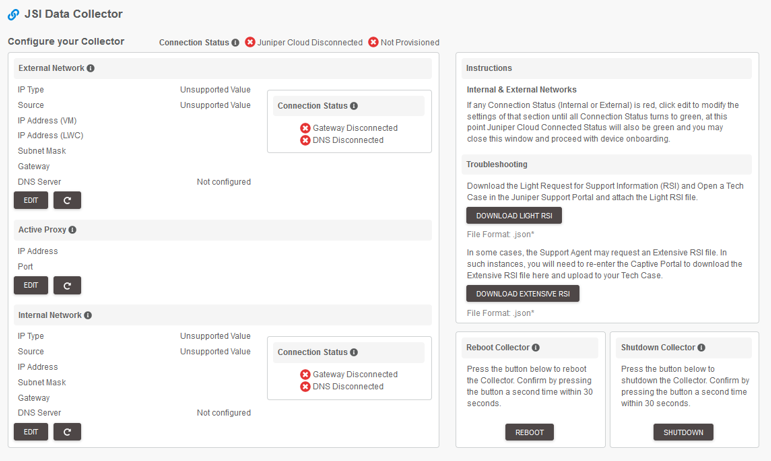

  3. Access the captive portal. For instructions, see Configure LWC Settings user guide.
