SRX440 Firewalls Chassis

Learn about the components in the SRX440 Firewalls chassis.

The SRX440 Firewalls chassis are rigid sheet-metal structures that house all components of the device.

SRX440 Firewalls Specifications

Table 2: Environmental Specifications
Specification	Value
Operating altitude	6561.68 ft (2000 m)
Operating temperature	32 °F to 122 °F (0 °C to 50 °C)
Storage temperature	-40 °F to 158 °F (-40 °C to 70 °C)
Relative humidity (operating) (noncondensing)	10% to 90%
Relative humidity (nonoperating) (noncondensing)	5% to 95%
Seismic tolerance	Zone 4

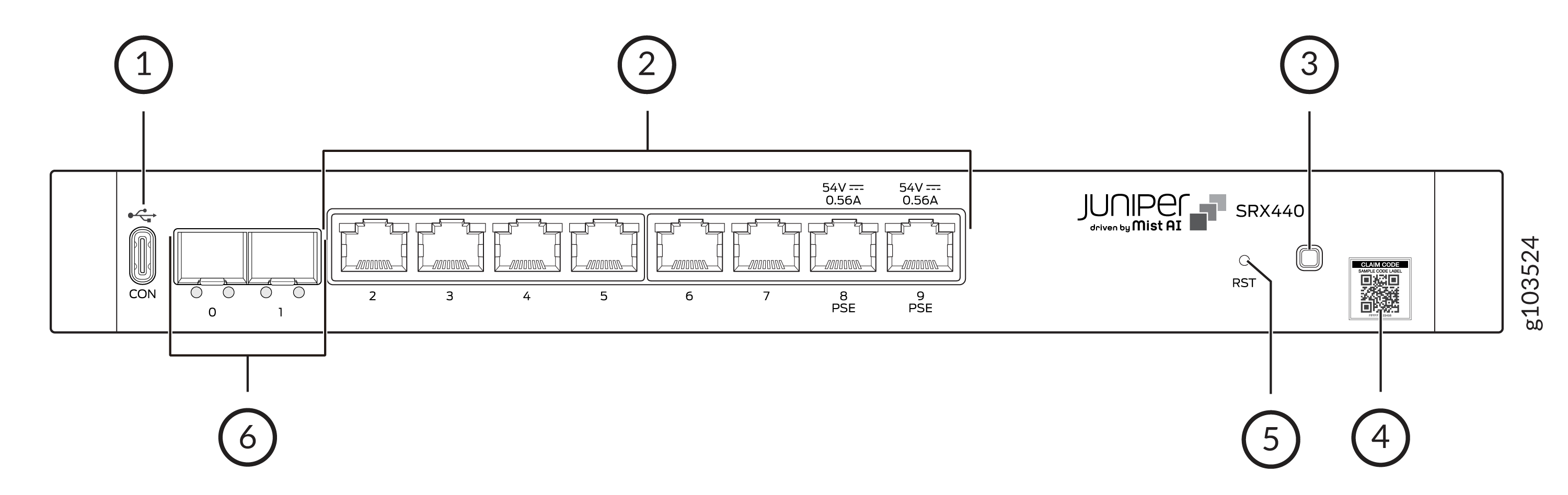

Figure 1: SRX440 Front Panel

Callout	Item
1	Console port—USB Type C
2	Eight 10/100/1000BASE-T Gigabit Ethernet (GbE) RJ-45 network ports Ports 8 and 9 are PoE+ (30 W/port ) ports
3	Multicolor system LED
4	QR code label (For quick onboarding of the device to Juniper Security Director Cloud)
5	RESET (RST) button
6	Two 1GbE SFP ports 0 and 1

Figure 2: SRX440 Rear Panel

Callout	Item
1	ESD point
2	USB 2.0 Type C port that accepts a USB storage device.
3	One 1GbE BASE-T RJ45 management MGMT port
4	Power supply adapter (PSA) LED
5	PSA point
6	Security slot to lock and secure the chassis
7	Ground terminal

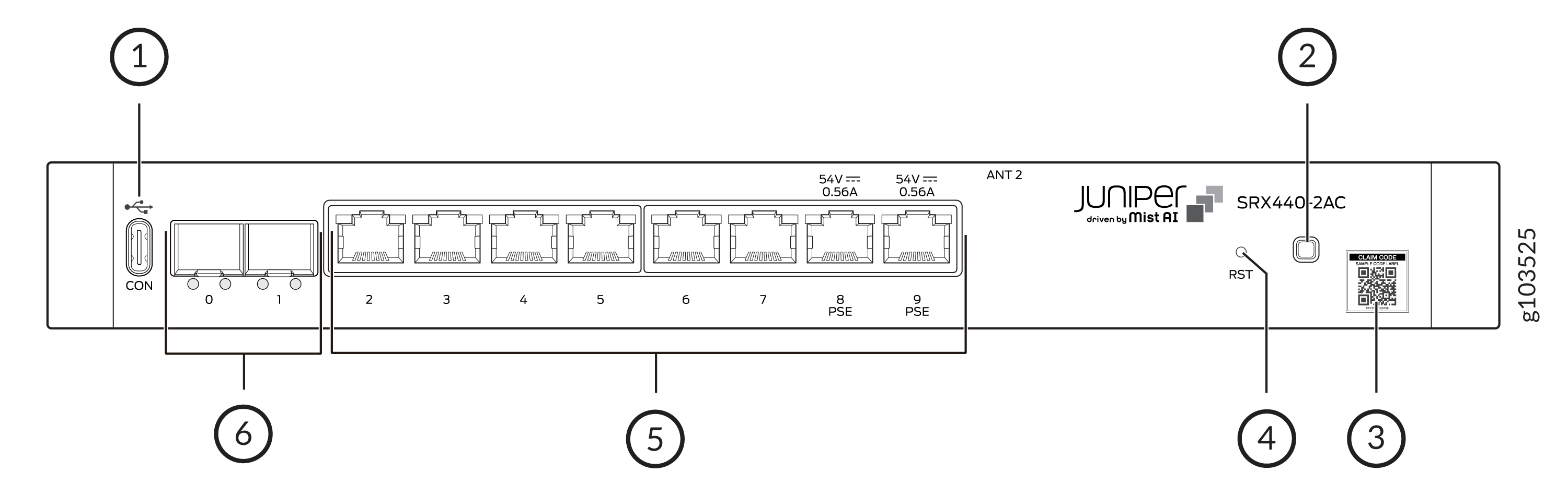

Figure 3: SRX440-2AC Front Panel

Callout	Item
1	Console port—USB Type C
2	Multicolor system LED
3	QR code label (For quick onboarding of the device to Juniper Security Director Cloud)
4	RESET RST button
5	Eight 10/100/1000BASE-T Gigabit Ethernet (GbE) RJ-45 network ports Ports 8 and 9 are PoE+ (30 W/port) ports
6	Two 1GbE SFP ports 0 and 1

Figure 4: SRX440-2AC Rear Panel

Callout	Item
1	ESD point
2	Power supply adapter (PSA) LED
3	USB 2.0 Type C port that accepts a USB storage device.
4	One 1GbE BASE-T RJ45 management MGMT port
5	Two PSA points
6	Security slot to lock and secure the chassis
7	Ground terminal
