Unpack the PTX12008

Unpack the PTX12008 by following the recommended procedure and check that you have received all the components.

Unpack the PTX12008

We ship the PTX12008 in a cardboard box that has a pallet base with foam cushioning between the layers. The router chassis is bolted to the pallet base.

CAUTION:

The PTX12008 has maximum protection inside the shipping carton. Do not unpack the router until you are ready to mount it.
Note: The router weighs 275 lb (124.7 kg) without any FRU installed. Because of the router's size and weight, we strongly recommend that you use a mechanical lift to move the router.

To unpack the router, you need the following tools:

  • A box cutter or knife to cut the straps that secure the shipping box to the pallet—not provided

  • A 7/16-in. (11-mm) open-end or socket wrench to remove the bracket bolts from the shipping pallet

The chassis ships in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers. The router chassis is bolted to the pallet base.

To unpack the router:

  1. Move the shipping box to a staging area as close to the installation site as possible. While the chassis is bolted to the pallet, you can use a forklift or pallet jack to move the shipping box. Make sure there is enough space to remove components from the shipping box.
  2. Position the shipping box with the arrows pointing up.
  3. Use the box cutter or knife to cut the straps that secure the shipping box to the pallet.
  4. Remove the top cover.

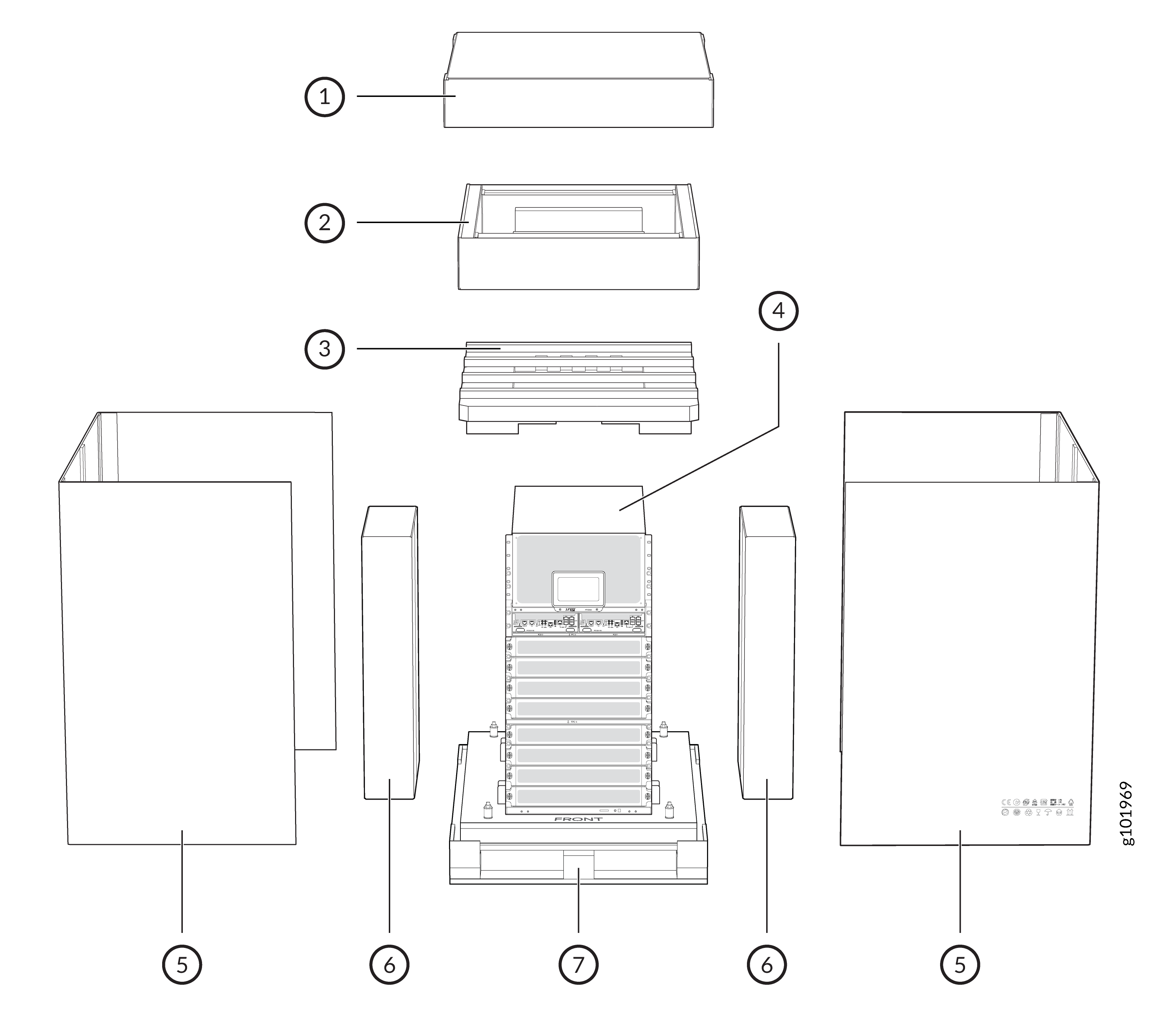

    Exploded diagram of packaging process for electronic device with numbered components top cover inner layer foam main device outer box side inserts and base.
      1
    —

    Top cover

      5
    —

    Side panels of the shipping box

      2
    —

    Accessory box

      6
    —

    Foam packing

      3
    —

    Foam cushioning

      7
    —

    Shipping pallet

      4
    —

    Chassis
  5. Remove the accessory box.
  6. Remove the foam cushioning.
  7. Remove the side panels of the shipping box.
  8. Remove the foam packing on the sides of the chassis.
  9. Remove the plastic cover that covers the router chassis.

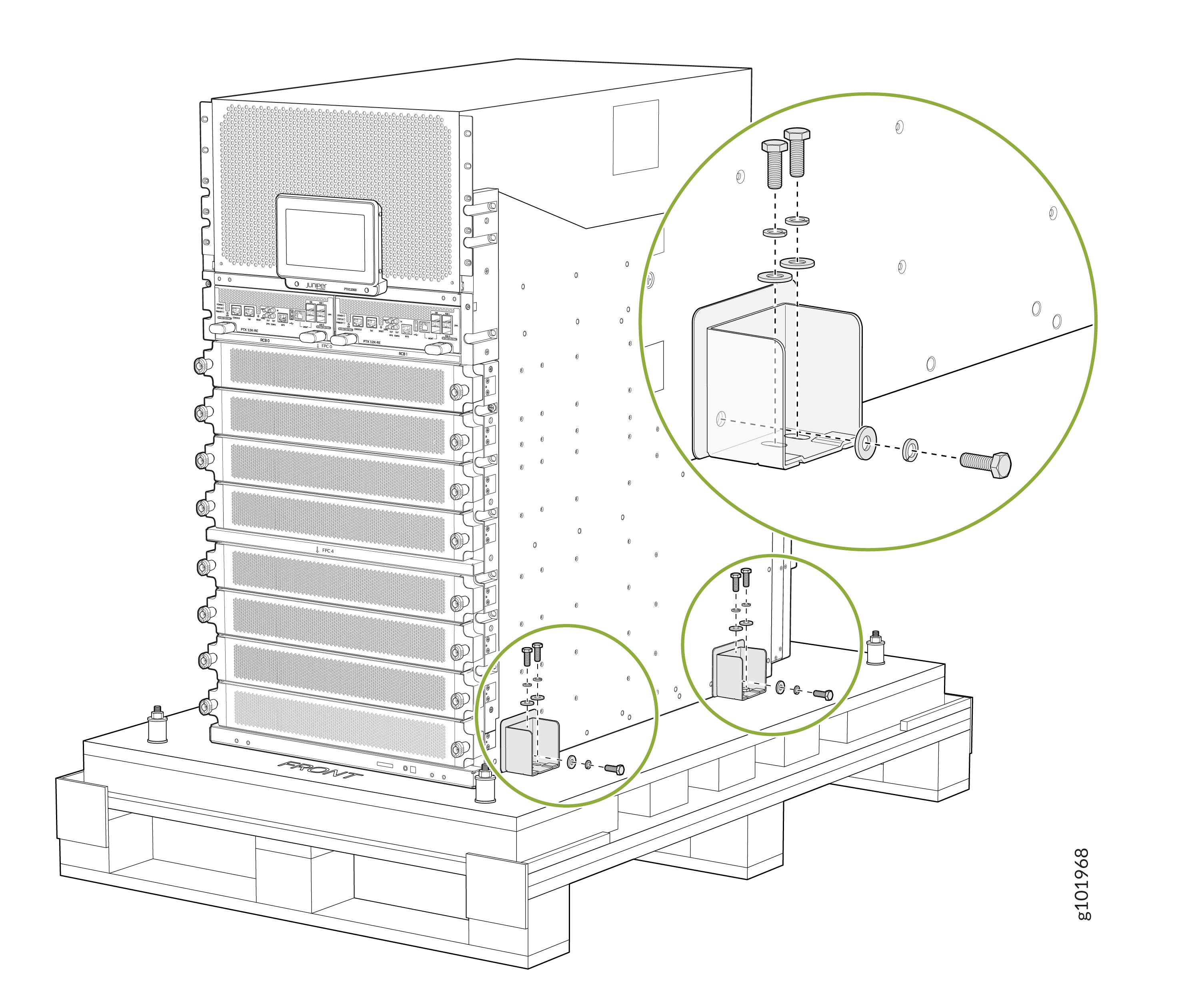

  10. Use a 7/16-in. (11-mm) open-end or socket wrench to remove the four sets of bracket bolts that secure the chassis to the shipping pallet.
    Technical illustration of a server rack secured to a pallet, showing mounting brackets, screws, washers, and assembly process for installation or transport.
  11. Save the brackets and bolts.
  12. Unpack the accessory box and lay out the contents so that they are ready for use.
  13. Verify that you have received all the parts see Packing List for the PTX12008.
  14. Save the shipping box and packing materials in case you need to move or ship the router at a later time.

Packing List for the PTX12008

The shipment includes a packing list. Check the parts you receive in the shipping carton against the items on the packing list. We ship the parts according to the configuration that you order. See PTX12008 Configurations.

You must order the Flexible PIC Concentrator (FPC) separately.

If any component on the packing list is missing, contact your customer service representative or contact Juniper customer care from within the U.S. or Canada by telephone at 1-888-314-5822. For international-dial or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html.

Table 1: Packing List for the Configurations

Configuration

Component

Quantity

Base configuration with AC/HVAC/HVDC power supply modules (PSMs)

Chassis

1

Status panel

1

Switch Interface Boards (SIBs)

3

3.7 kilowatt (kW) AC/HVAC/HVDC or 3 kW AC/HVAC/HVDC PSMs depending on your selection

12

Fan trays

3

Routing and Control Board (RCB)

1

FPC slot covers

8

PSM slot covers

8

RCB slot cover

1

PTX12K-RMK rack mount kit

1

Front door

1

Cable management system

1

Base configuration with DC PSMs

Chassis

1

Status panel

1

SIBs

3

DC PSMs

12

Fan trays

3

RCB

1

FPC slot covers

8

PSM slot covers

8

RCB slot cover

1

PTX12K-RMK rack mount kit

1

Front door

1

Cable management system

1

Premium configuration with AC/HVAC/HVDC PSMs

Chassis

1

Status panel

1

SIBs

9

3.7 kW AC/HVAC/HVDC or 3 kW AC/HVAC/HVDC PSMs depending on your selection

20

Fan trays

3

RCBs

2

Front door

1

FPC slot covers

8

PTX12K-RMK rack mount kit

1

Front door

1

Cable management system

1

Premium configuration with DC PSMs

Chassis

1

Status panel

1

SIBs

9

DC PSMs

20

Fan trays

3

RCBs

2

Front door

1

FPC slot covers

8

PTX12K-RMK rack mount kit

1

Front door

1

Cable management system

1
Table 2: Parts List for the PTX12K-RMK Rack Mount Kit

Component

Quantity

Mounting tray

1

Mounting tray brackets

2

Phillips M4x8mm flat-head screws

36

Phillips M4x8mm pan head screws

10

Rear side brackets

2

FPC ejector tool storage tray

1
Table 3: Parts List for the PTX12K-RMK-EXT Rack Mount Kit

Component

Quantity

Mounting tray

1

Mounting tray rear support

1

Rear side brackets

2

Front upper side brackets

2

Rear upper bracket

2

Phillips M4x8mm flat-head screws

10

Phillips M4x8mm pan head screws

18

Phillips M5x8mm pan head screws

10

Phillips 8-32x.375" flat-head screws

80

FPC ejector tool storage tray

1
Table 4: Parts List for the Bracket Kit

Component

Quantity

Lower SIB shipping bracket

1

Upper SIB shipping bracket

1

Fan tray mount shipping bracket

1

Rack mount rear side brackets

2

Power shelf support brackets

2

M4x8mm pan head screws

20

6-32x0.25" flat-head screws

12
Table 5: Parts List for the Accessory Kit

Component

Quantity

Warranty card

1

End User License Agreement (EULA)

1

Documentation roadmap card

1
