EX5200 Switch Power System

The EX5200 switch power system includes AC power supplies and related power cords and cables. The power supplies operate within certain ranges and are equipped with status indicator LEDs.

The EX5200 switch supports 550 W, 1600 W, 2000 W AC AFO PSUs with 1 + 1 redundancy. The power supplies support front-to-back airflow direction. The power supplies are fully redundant, load-sharing, and hot-removable and hot-insertable field-replaceable units (FRUs) when the second power supply is installed and running. You can remove and replace either one of the power supplies without powering off the switch or disrupting switch functions.

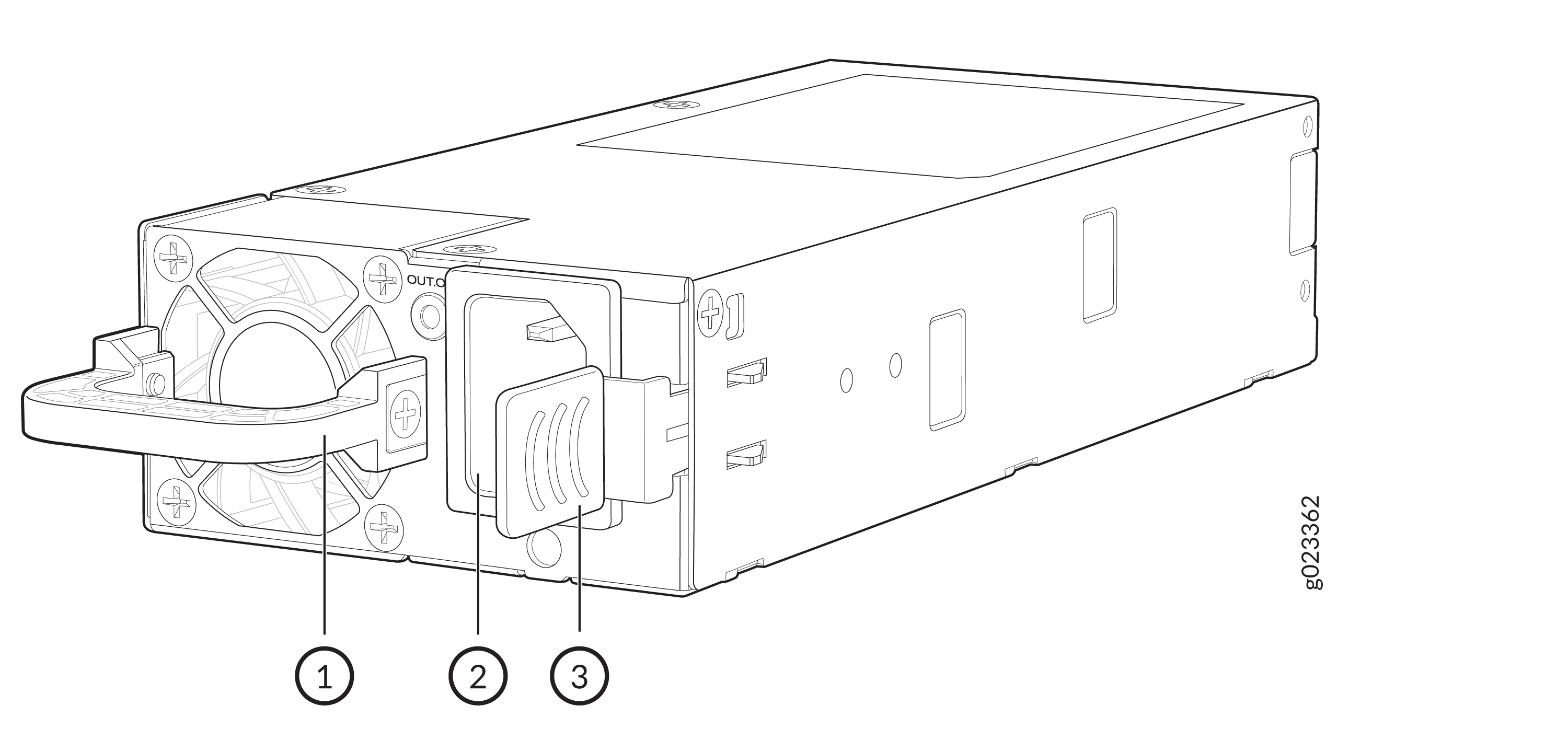

Figure 1: Power Supply

1 — Power supply handle	3 — Power supply ejector level
2 — Power supply inlet

Table 1: Details of the AC Power Supplies
Details	550-W AC Power Supply	1600-W AC Power Supply	2000-W AC Power Supply
Model number	JPSU-550-AC-AFO	JPSU-1600-AC-AFO	JPSU-2000-AC-AFO
Minimum installed in chassis	1	1	1
Maximum installed in chassis	2	2	2
AC appliance inlet	1	1	1
AC appliance inlet type	IEC-320-C14	IEC-320-C16	IEC-320-C16
Power supply status LED	OUT.OK	OUT.OK	OUT.OK

Electrical Ratings for EX5200 Switches

Electrical ratings for the EX5200-48MP switch.

Table 2: System Electrical Rating for EX5200-48MP
Input Voltage	Current Rating	Frequency for Input
100-127 VAC	12 A (not for EU / Korea/China)	-
200 – 240 VAC	11 A (for use in USA, Canada and Japan only)	-
220 – 240Vac, 10A	10 A	50 – 60 Hz

Electrical ratings for the EX5200-24MP switch.

Table 3: System Electrical Rating for EX5200-24MP
Input Voltage	Current Rating	Frequency for Input
100-120 VAC	12 A (not for EU / Korea/China)	-
200 – 240 VAC	9 A	50 – 60Hz

Electrical ratings for the EX5200-48T switch.

Table 4: System Electrical Rating for EX5200-48T
Input Voltage	Current Rating	Frequency for Input
100-127 VAC	7.1 A	-
200 – 240 VAC	3.4 A	50 – 60Hz

Electrical ratings for the EX5200-24T switch.

Table 5: System Electrical Rating for EX5200-24T
Input Voltage	Current Rating	Frequency for Input
100-127 VAC	7.1 A	-
200 – 240 VAC	3.4 A	50 – 60Hz

Specifications of the AC Power Supplies Used in EX5200 Switches

Table 6: Specifications of the 550-W AC Power Supplies Used in EX5200 Switches
Item	Specifications
AC input voltage	Low-voltage line: 100–127 VAC High-voltage line: 200–240 VAC
AC input line frequency	47–63 Hz
AC input current rating	Low-voltage line: 7.1 A High-voltage line: 3.4 A
Output power	550 W
Efficiency	80-plus platinum efficiency certified

Table 7: Specifications of the 1600-W AC Power Supplies Used in EX5200 Switches
Item	Specifications
AC input voltage	Low-voltage line: 100–120 VAC High-voltage line: 200–240 VAC
AC input line frequency	50–60 Hz
AC input current rating	Low-voltage line: 12 A High-voltage line: 9 A
Output power	1600 W 1050 W (100-120 VAC)
Efficiency	80-plus platinum efficiency certified

Table 8: Specifications of the 2000-W AC Power Supplies Used in EX5200 Switches
Item	Specifications
AC input voltage	Low-voltage line: 100–127 VAC High-voltage line: 200–240 VAC/220 - 240 VAC
AC input line frequency	50–60 Hz
AC input current rating	Low-voltage line: 12 A High-voltage line: 11 A/10 A
Output power	2000 W 1050 W (100 - 127 VAC)
Efficiency	80-plus platinum efficiency certified

PoE Budget Planning

The following table represents the PoE budget planning details of EX5200 PoE-enabled switches.

Table 9: PoE Budget Details of EX5200-24MP and EX5200-48MP
Model	PoE++ ports	PoE ++ Budget 1 PSU/2 PSU		Power Supply	Cooling
Model	PoE++ ports	Low-line voltage	High-line voltage	Power Supply	Cooling
EX5200-24MP	24	780 W/1751 W	1330 W/2160 W	1600 W	AFO (front to back airflow)
EX5200-48MP	48	700 W/1671 W	1650 W/3500 W	2000 W	AFO (front to back airflow)

Specifications of the Power Cord for AC Power Supplies for EX5200 Switches

Each AC power supply has a single AC appliance inlet that requires a dedicated AC power feed. A detachable AC power cord is supplied with each AC power supply. We ship the 550-W AC power supplies with AC power cords with the C13 coupler type and the 1600-W AC, and 2000-W AC power supplies with the C15 coupler type as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Note:

In North America, AC power cords must not exceed 14.75 ft (4.5 m) in length, to comply with National Electrical Code (NEC) Section 400-8 (NFPA 75, 5-2.2) and Canadian Electrical Code (CEC) Section 4-010(3).

Table 10: AC Power Cord Specifications for 550-W AC Power Supplies
Country/Region	Electrical Specifications	Plug Standards	Juniper Model Number	Graphic
Argentina	250 VAC, 10 A, 50 Hz	IRAM 2073 Type RA/3	CBL-EX-PWR-C13-AR	No graphic available
Australia	250 VAC, 10 A, 50 Hz	AS/NZS 3112 Type SAA/3	CBL-EX-PWR-C13-AU
Brazil	250 VAC, 10 A, 50 Hz	NBR 14136 Type BR/3	CBL-EX-PWR-C13-BR	No graphic available
China	250 VAC, 10 A, 50 Hz	GB 1002-1996 Type PRC/3	CBL-EX-PWR-C13-CH
Europe (except Italy, Switzerland, and United Kingdom)	250 VAC, 10 A, 50 Hz	CEE (7) VII Type VIIG	CBL-EX-PWR-C13-EU
India	250 VAC, 10 A, 50 Hz	IS 1293 Type IND/3	CBL-EX-PWR-C13-IN	No graphic available
Israel	250 VAC, 10 A, 50 Hz	SI 32/1971 Type IL/3G	CBL-EX-PWR-C13-IL
Italy	250 VAC, 10 A, 50 Hz	CEI 23-16 Type I/3G	CBL-EX-PWR-C13-IT
Japan	125 VAC, 12 A, 50 Hz or 60 Hz	JIS 8303	CBL-EX-PWR-C13-JP
Korea	250 VAC, 10 A, 50 Hz or 60 Hz	CEE (7) VII Type VIIGK	CBL-EX-PWR-C13-KR
North America	125 VAC, 13 A, 60 Hz	NEMA 5-15 Type N5-15	CBL-EX-PWR-C13-US
South Africa	250 VAC, 10 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-EX-PWR-C13-SA
Switzerland	250 VAC, 10 A, 50 Hz	SEV 6534-2 Type 12G	CBL-EX-PWR-C13-SZ	No graphic available
Taiwan	125 VAC, 10 A, 50 Hz	NEMA 5-15P Type N5-15P	CBL-EX-PWR-C13-TW
United Kingdom	250 VAC, 10 A, 50 Hz	BS 1363/A Type BS89/13	CBL-EX-PWR-C13-UK

Table 11: Specifications of Power Cords Used to Connect Switches to C13 Power Strips
Country/Region	Electrical Specifications	Juniper Model Number
USA, China, Japan, Europe, South Korea, Australia	250 VAC, 10 A, 50 Hz	CBL-EX-PWR-C13-C14

Table 12: AC Power Cord Specifications for 1600-W, and 2000-W Power Supplies
Country/Region	Electrical Specifications	Plug Standards	Juniper Model Number
Argentina	250 VAC, 10 A, 50 Hz	IRAM 2073 Type RA/3	CBL-PWR-C15M-HITEMP-AR
Australia	250 VAC, 10 A, 50 Hz	AS/NZZS 3112-2000 Type SAA/3	CBL-PWR-C15M-HITEMP-AU
Brazil	250 VAC, 10 A, 50 Hz	NBR 14136 Type BR/3	CBL-PWR-C15M-HITEMP-BR
China	250 VAC, 10 A, 50 Hz	GB2099, GB1002 Type PRC/3	CBL-PWR-C15M-HITEMP-CH
Europe (except Italy, Switzerland, and United Kingdom)	250 VAC, 10 A, 50 Hz	CEE (7) VII Type VIIG	CBL-PWR-C15M-HITEMP-EU
Israel	250 VAC, 10 A, 50 Hz	SI 32 Type IL/3G	CBL-PWR-C15M-HITEMP-IL
India	250 VAC, 10 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-PWR-C15M-HITEMP-IN
Italy	250 VAC, 10 A, 50 Hz	CEI 23-16 Type I/3G	CBL-PWR-C15M-HITEMP-IT
Japan	125 VAC, 15 A, 50 Hz or 60 Hz	JIS 8303 Type 498GJ	CBL-PWR-C15M-HITEMP-JP
Korea	250 VAC, 10 A, 50 Hz	CEE (7) VII Type VIIG	CBL-PWR-C15M-HITEMP-KR
South Africa	250 VAC, 10 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-PWR-C15M-HITEMP-SA
North America	125 VAC, 15 A, 60 Hz	NEMA 5-15 Type N5/15	CBL-PWR-C15M-HITEMP-US
Switzerland	250 VAC, 10 A, 50 Hz	SEV 1011 / 6534-2 Type 12G	CBL-PWR-C15M-HITEMP-SZ
United Kingdom	250 VAC, 10 A, 50 Hz	BS 1363/A Type BS89/13	CBL-PWR-C15M-HITEMP-UK

Table 13: Specifications of Power Cords Used to Connect 1600-W Power Supplies to C13 Power Strips
Country/Region	Electrical Specifications	Juniper Model Number
Europe	250 VAC, 10 A, 50 Hz	CBL-PWR-C15-C14-EU
North America	125 VAC, 15 A, 60 Hz	CBL-PWR-C15-C14-US

Power Supply LEDs in EX5200 Switches

The power supplies for EX5200 switches have one LED that indicates its state.

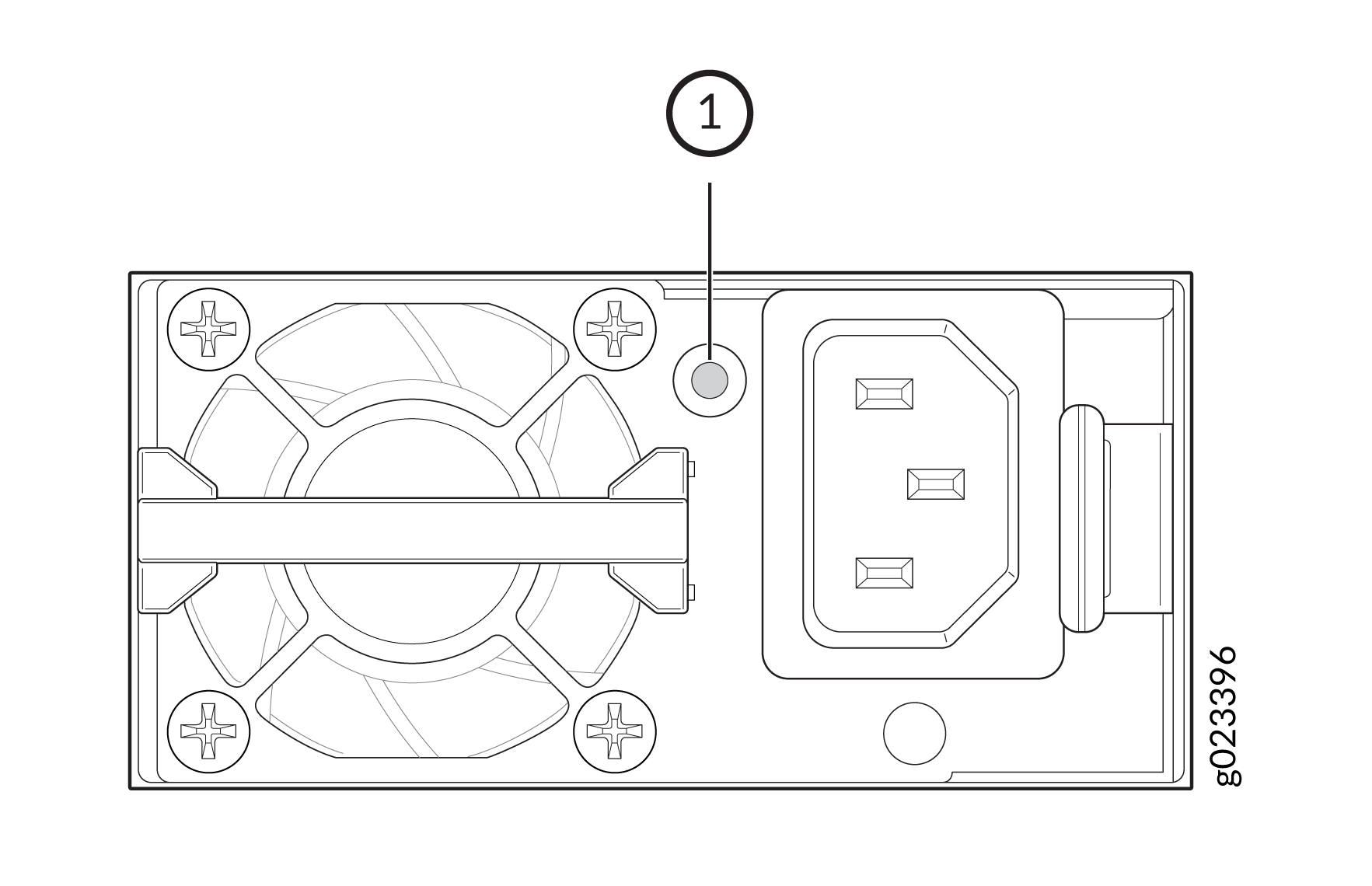

Figure 2: LED on the AC Power Supply for EX5200 Switches

—

Power supply LED

Table 14: Power Supply LED in EX5200 Switches
Color	State	Description
Green	On steadily	The power supply is receiving input and is providing proper output to the switch.
	Blinking	The fan in the power supply has failed or there is an internal communication failure in the power supply; you must replace it.
	Unlit	Indicates one of the following: The power cord might not be installed properly. The power supply is not receiving power correctly. Verify that the input voltage range is correct. The power supply is in standby mode. The ambient temperature is high and the power supply has shut down. Ensure that the temperature is between 32° F and 113° F (between 0° C and 45° C). There is a critical failure in the power supply and it has shut down. You must replace it.
