Access Point Views

Figure 1. AP-723H Front View
Ap-723H Front View

1

System Status LED

2

2.4 GHz Radio Status LED

3

5 GHz Radio Status LED

4

6 GHz Radio Status LED
Figure 2. AP-723H Side View
P-723H Side View

1

Reset Button

2

DC Power Port
Figure 3. AP-723H Back View
AP-723H Back View

1

USB Security Screw

2

Console Port

3

E0 Ethernet Port

4

HPE Mist Claim Code
Figure 4. AP-723H Top View
AP-723H Top View

1

USB Host Interface

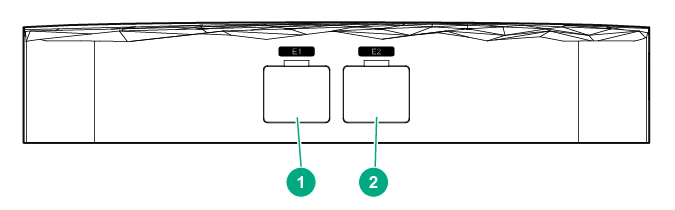

Figure 5. AP-723H Bottom View
AP-723H Bottom View

1

E1 Ethernet Port

2

E2 Ethernet Port
