例:IPsec VPN向けの単一のMXシリーズ(ECMPベースのコンシステントハッシュ)およびスケールアウトされたSRXシリーズファイアウォール(スタンドアロン)
この設定では、単一のMXシリーズを、IPsec VPNサービス用にスタンドアロンでスケールアウトされたSRXシリーズファイアウォールで設定する方法を学習します。
概要
表1は 、例で使用されている導入コンポーネントを示しています。
| CSDSコンポーネント | 詳細 |
|---|---|
| フォワーディング層 | MX304とJunos OSリリース23.4R1以降 |
| サービス層 | Junos OSリリース23.4R1以降を搭載したvSRX 3.0 |
| 冗長性 | 負荷分散装置用のECMPベースの一貫したハッシュを備えた単一のMXシリーズ。 SRXシリーズファイアウォール(スタンドアロン) |
| 特長 | IPsec VPN |
| 追加コンポーネント | IPsecイニシエーターデバイス - SPC3カード付きMXルーター。どのIPsecイニシエーターデバイスでも使用できます。 |
トラフィックフローとVPNの詳細については、 表2 と 表3 を参照してください。
| 機能 | トラフィックフローコンポーネント | IPアドレス |
|---|---|---|
| SRX1、SRX2、SRX3 上の IPsec VPN | IKEゲートウェイソース(IPsecイニシエーター) | 200.0.0.0/8 |
| IKEゲートウェイの宛先(IPsecレスポンダー) | 100.0.0.1/32 | |
| IPsecデータソース | 6.0.0.0/8 | |
| IPsecデータの宛先 | 75.0.0.0/8 |
| デバイス | IKEゲートウェイ | IPsecデータエンドポイント |
|---|---|---|
| SRX1 | 200.0.0.1および100.0.0.1 | 6.0.0.3と75.0.0.3の間のトンネル1 |
| SRX2 | 200.0.0.2および100.0.0.1 | 6.0.0.2と75.0.0.2の間のトンネル2 |
| SRX3 | 200.0.0.6および100.0.0.1 | 6.0.0.1と75.0.0.1の間のトンネル3 |
トラフィックフローについては 、表4 をご覧ください。
| フロータイプ | トラフィックフローコンポーネント | IPアドレス |
|---|---|---|
| SRXへのIKEイニシエーター | ソースロードバランサ(MXのルートフィルター) | 100.0.0.1/32 |
| IPsec VPNフォワードフロー | ルーティングベース | |
| IPsec VPNリバースフロー | ルーティングベース | SRXごとの一意のARIルート |
トポロジー図

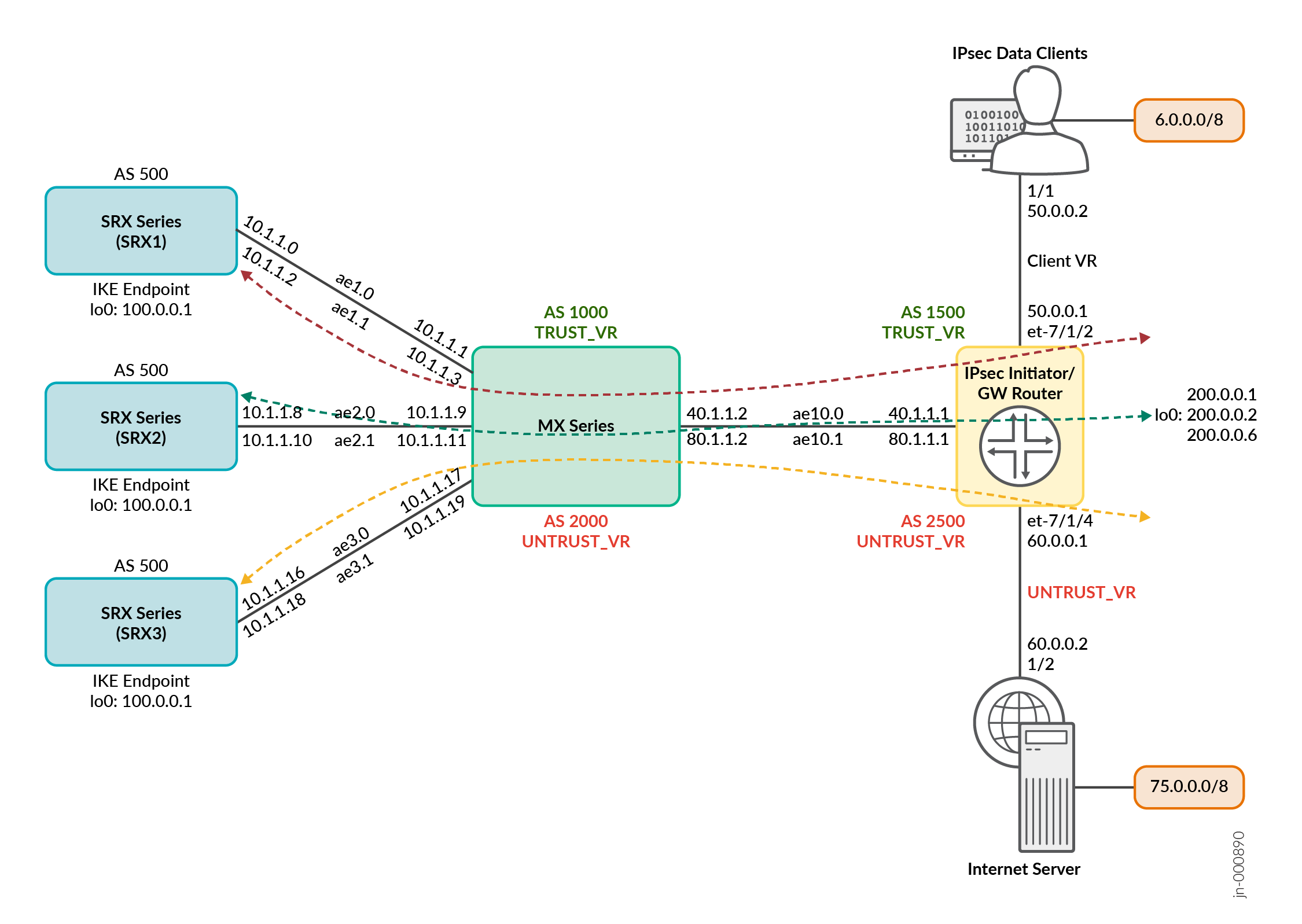

図1:IPsec VPNサービス向けのシングルMXシリーズ(ECMPベースのコンシステントハッシュ)およびスケールアウトSRXシリーズファイアウォール
図2:IPsec VPNサービス

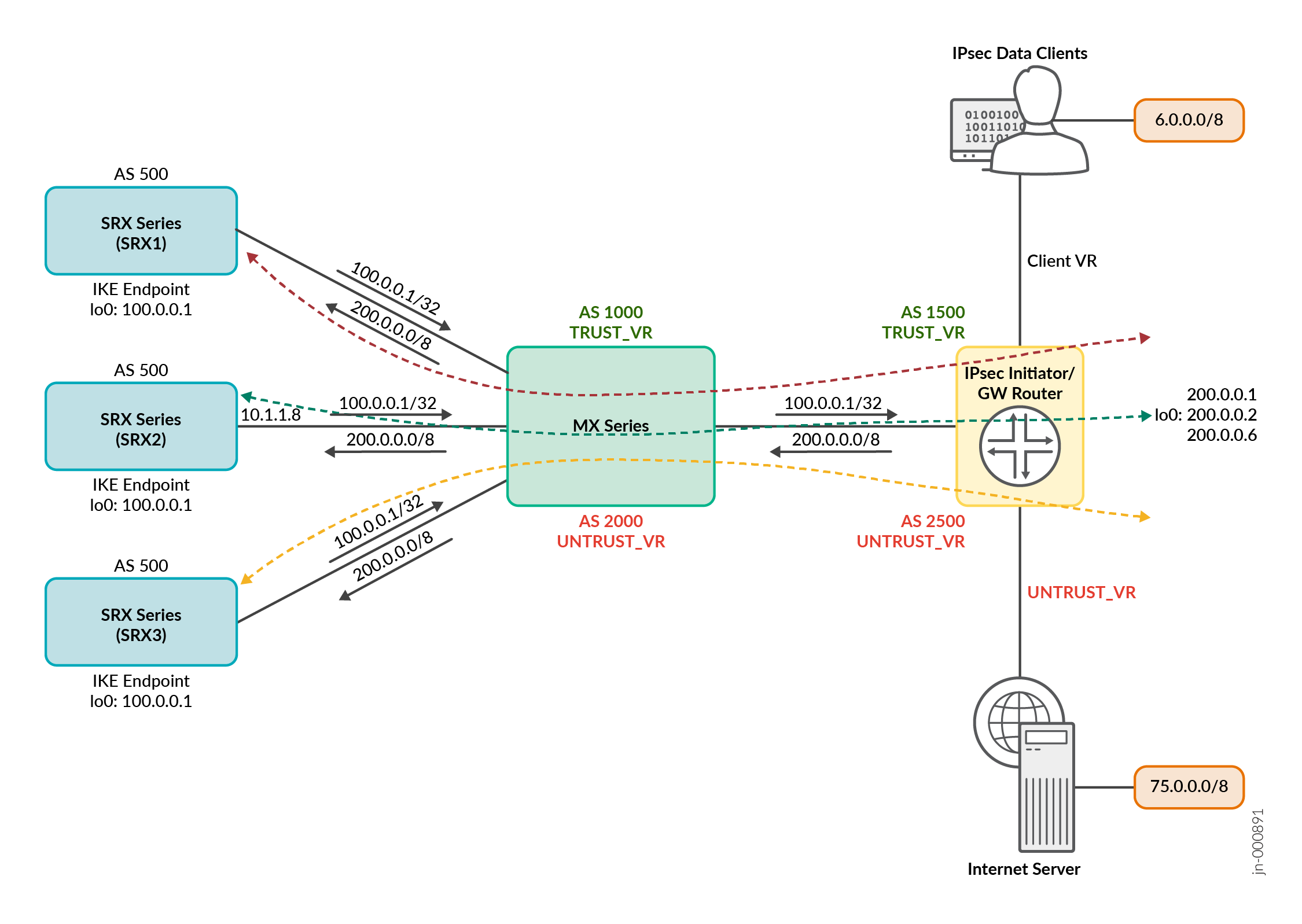

用IKEゲートウェイのルートアドバタイズメント
用IKEゲートウェイのルートアドバタイズメント
図3:IPsec VPNサービス

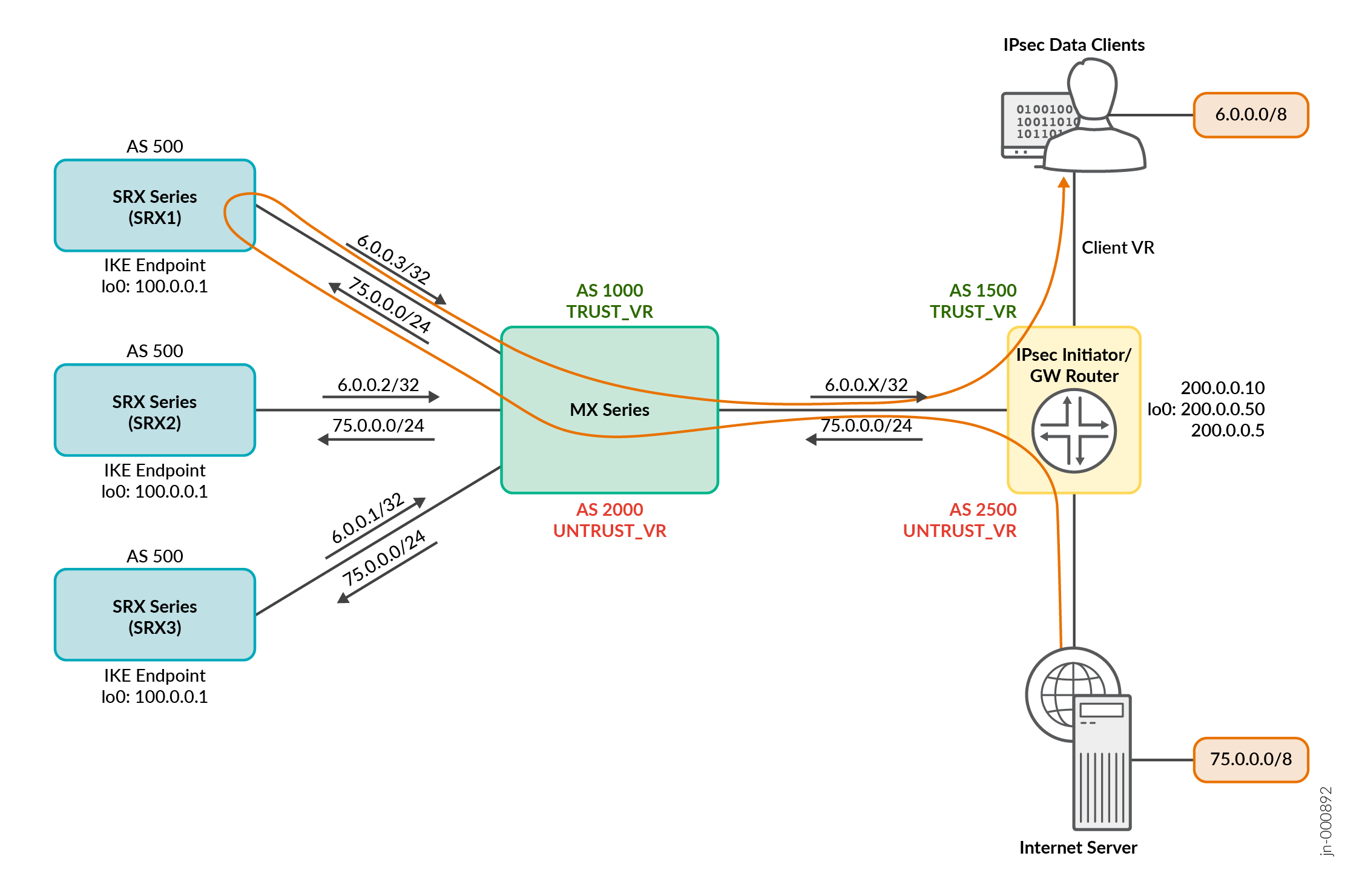

のIPsecエンドポイントのルートアドバタイズメント
のIPsecエンドポイントのルートアドバタイズメント
設定
この例をすばやく設定するには、以下のコマンドをコピーしてテキスト ファイルに貼り付け、改行を削除し、ネットワーク設定に一致させる必要がある詳細情報を変更し、[edit]階層レベルでコマンドを CLI にコピー アンド ペーストして、設定モードからコミットを入力します。
これらの設定は、ラボ環境から取得されたものであり、参照用にのみ提供されています。実際の構成は、環境の特定の要件によって異なる場合があります。
以下の項目は、この例の設定コンポーネントのリストを示しています。
- MXシリーズの設定
- IPsecイニシエーターを設定する
- SRX1を設定する
- SRX2を設定する
- SRX3の設定
MXシリーズの設定
[edit] set interfaces et-0/0/0 gigether-options 802.3ad ae1 set interfaces et-0/0/1 gigether-options 802.3ad ae2 set interfaces et-0/0/2 gigether-options 802.3ad ae3 set interfaces et-0/0/7 gigether-options 802.3ad ae1 set interfaces et-0/0/8 gigether-options 802.3ad ae2 set interfaces et-0/0/9 gigether-options 802.3ad ae3 set interfaces et-0/0/10 gigether-options 802.3ad ae10 set interfaces et-0/0/11 gigether-options 802.3ad ae10 set interfaces et-0/1/0 gigether-options 802.3ad ae10 set interfaces et-0/1/1 gigether-options 802.3ad ae10 set interfaces et-0/1/2 gigether-options 802.3ad ae10 set interfaces ae1 vlan-tagging set interfaces ae1 aggregated-ether-options minimum-links 1 set interfaces ae1 aggregated-ether-options lacp active set interfaces ae1 aggregated-ether-options lacp periodic fast set interfaces ae1 unit 0 vlan-id 1 set interfaces ae1 unit 0 family inet address 10.1.1.1/31 set interfaces ae1 unit 0 family inet6 address 10:1:1::1/127 set interfaces ae1 unit 1 vlan-id 2 set interfaces ae1 unit 1 family inet address 10.1.1.3/31 set interfaces ae1 unit 1 family inet6 address 10:1:1::3/127 set interfaces ae2 vlan-tagging set interfaces ae2 aggregated-ether-options minimum-links 1 set interfaces ae2 aggregated-ether-options lacp active set interfaces ae2 aggregated-ether-options lacp periodic fast set interfaces ae2 unit 0 vlan-id 9 set interfaces ae2 unit 0 family inet address 10.1.1.9/31 set interfaces ae2 unit 0 family inet6 address 10:2:2::1/127 set interfaces ae2 unit 1 vlan-id 10 set interfaces ae2 unit 1 family inet address 10.1.1.11/31 set interfaces ae2 unit 1 family inet6 address 10:2:2::3/127 set interfaces ae3 vlan-tagging set interfaces ae3 aggregated-ether-options minimum-links 1 set interfaces ae3 aggregated-ether-options lacp active set interfaces ae3 aggregated-ether-options lacp periodic fast set interfaces ae3 unit 0 vlan-id 9 set interfaces ae3 unit 0 family inet address 10.1.1.17/31 set interfaces ae3 unit 0 family inet6 address 10:3:3::1/127 set interfaces ae3 unit 1 vlan-id 10 set interfaces ae3 unit 1 family inet address 10.1.1.19/31 set interfaces ae3 unit 1 family inet6 address 10:3:3::3/127 set interfaces ae10 flexible-vlan-tagging set interfaces ae10 encapsulation flexible-ethernet-services set interfaces ae10 aggregated-ether-options minimum-links 1 set interfaces ae10 aggregated-ether-options lacp active set interfaces ae10 aggregated-ether-options lacp periodic fast set interfaces ae10 unit 40 vlan-id 40 set interfaces ae10 unit 40 family inet address 40.1.1.2/30 set interfaces ae10 unit 40 family inet6 address 40:1:1::2/124 set interfaces ae10 unit 80 vlan-id 80 set interfaces ae10 unit 80 family inet address 80.1.1.2/30 set interfaces ae10 unit 80 family inet6 address 80:1:1::2/124 set routing-instances TRUST_VR instance-type virtual-router set routing-instances TRUST_VR routing-options autonomous-system 1000 set routing-instances TRUST_VR routing-options autonomous-system independent-domain no-attrset set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router type external set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router export srx_ike_endpoint_export set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router peer-as 1500 set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router local-as 1000 set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection minimum-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection minimum-receive-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection multiplier 3 set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router neighbor 40.1.1.1 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 type external set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 import pfe_consistent_hash set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 export trust-to-untrust-export set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 peer-as 500 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 local-as 1000 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 multipath set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-receive-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection multiplier 3 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 neighbor 10.1.1.0 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 type external set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 import pfe_consistent_hash set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 export trust-to-untrust-export set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 peer-as 500 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 local-as 1000 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 multipath set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-receive-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection multiplier 3 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 neighbor 10.1.1.8 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 type external set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 import pfe_consistent_hash set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 export trust-to-untrust-export set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 peer-as 500 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 local-as 1000 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 multipath set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-receive-interval 300 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection multiplier 3 set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 neighbor 10.1.1.16 set routing-instances TRUST_VR interface ae1.0 set routing-instances TRUST_VR interface ae2.0 set routing-instances TRUST_VR interface ae3.0 set routing-instances TRUST_VR interface ae10.40 set policy-options policy-statement srx_ike_endpoint_export term 1 from protocol bgp set policy-options policy-statement srx_ike_endpoint_export term 1 from route-filter 100.0.0.1/32 exact set policy-options policy-statement srx_ike_endpoint_export term 1 then next-hop self set policy-options policy-statement srx_ike_endpoint_export term 1 then accept set policy-options policy-statement srx_ike_endpoint_export term 2 then reject set policy-options policy-statement trust-to-untrust-export term 1 from protocol bgp set policy-options policy-statement trust-to-untrust-export term 1 from protocol static set policy-options policy-statement trust-to-untrust-export term 1 then next-hop self set policy-options policy-statement trust-to-untrust-export term 1 then accept set policy-options policy-statement trust-to-untrust-export term 2 then reject set routing-instances UNTRUST_VR instance-type virtual-router set routing-instances UNTRUST_VR routing-options autonomous-system 2000 set routing-instances UNTRUST_VR routing-options autonomous-system independent-domain no-attrset set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router type external set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router export srx_ari_route_export set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router peer-as 2500 set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router local-as 2000 set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection minimum-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection minimum-receive-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection multiplier 3 set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router neighbor 80.1.1.1 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 type external set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 export untrust-to-trust-export set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 peer-as 500 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 local-as 2000 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 multipath set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-receive-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection multiplier 3 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 neighbor 10.1.1.2 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 type external set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 export untrust-to-trust-export set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 peer-as 500 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 local-as 2000 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 multipath set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-receive-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection multiplier 3 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 neighbor 10.1.1.10 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 type external set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 export untrust-to-trust-export set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 peer-as 500 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 local-as 2000 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 multipath set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-receive-interval 300 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection multiplier 3 set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 neighbor 10.1.1.18 set routing-instances UNTRUST_VR interface ae1.1 set routing-instances UNTRUST_VR interface ae2.1 set routing-instances UNTRUST_VR interface ae3.1 set routing-instances UNTRUST_VR interface ae10.80 set policy-options policy-statement srx_ari_route_export term 1 from protocol bgp set policy-options policy-statement srx_ari_route_export term 1 from route-filter 6.0.0.0/8 orlonger set policy-options policy-statement srx_ari_route_export term 1 then next-hop self set policy-options policy-statement srx_ari_route_export term 1 then accept set policy-options policy-statement srx_ari_route_export term 2 then reject set policy-options policy-statement untrust-to-trust-export term 1 from protocol bgp set policy-options policy-statement untrust-to-trust-export term 1 from protocol static set policy-options policy-statement untrust-to-trust-export term 1 then next-hop self set policy-options policy-statement untrust-to-trust-export term 1 then accept set policy-options policy-statement untrust-to-trust-export term 2 then reject set policy-options policy-statement pfe_consistent_hash from route-filter 100.0.0.1/32 exact set policy-options policy-statement pfe_consistent_hash then load-balance consistent-hash set policy-options policy-statement pfe_consistent_hash then accept set policy-options policy-statement pfe_lb_hash term source_hash from route-filter 100.0.0.1/32 exact set policy-options policy-statement pfe_lb_hash term source_hash then load-balance source-ip-only set policy-options policy-statement pfe_lb_hash term source_hash then accept set policy-options policy-statement pfe_lb_hash term ALL-ELSE then load-balance per-packet set policy-options policy-statement pfe_lb_hash term ALL-ELSE then accept set routing-options forwarding-table export pfe_lb_hash
IPsecイニシエーターの設定
[edit] set services service-set IPSEC_TUN_1 next-hop-service inside-service-interface vms-3/0/0.1 set services service-set IPSEC_TUN_1 next-hop-service outside-service-interface vms-3/0/0.2001 set services service-set IPSEC_TUN_1 ipsec-vpn TUN_1 set services service-set IPSEC_TUN_2 next-hop-service inside-service-interface vms-3/0/0.2 set services service-set IPSEC_TUN_2 next-hop-service outside-service-interface vms-3/0/0.2002 set services service-set IPSEC_TUN_2 ipsec-vpn TUN_2 set services service-set IPSEC_TUN_3 next-hop-service inside-service-interface vms-3/0/0.3 set services service-set IPSEC_TUN_3 next-hop-service outside-service-interface vms-3/0/0.2003 set services service-set IPSEC_TUN_3 ipsec-vpn TUN_3 set security ike proposal IKE_PROP authentication-method pre-shared-keys set security ike proposal IKE_PROP dh-group group2 set security ike proposal IKE_PROP authentication-algorithm sha1 set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc set security ike proposal IKE_PROP lifetime-seconds 3600 set security ike policy IKE_POLICY proposals IKE_PROP set security ike policy IKE_POLICY pre-shared-key ascii-text "$ABC123" set security ike gateway IKE_GW_1 ike-policy IKE_POLICY set security ike gateway IKE_GW_1 address 100.0.0.1 set security ike gateway IKE_GW_1 dead-peer-detection probe-idle-tunnel set security ike gateway IKE_GW_1 dead-peer-detection interval 10 set security ike gateway IKE_GW_1 dead-peer-detection threshold 3 set security ike gateway IKE_GW_1 local-identity hostname peer1.juniper.net set security ike gateway IKE_GW_1 remote-identity hostname vsrx.juniper.net set security ike gateway IKE_GW_1 external-interface lo0.0 set security ike gateway IKE_GW_1 local-address 200.0.0.1 set security ike gateway IKE_GW_1 version v2-only set security ike gateway IKE_GW_2 ike-policy IKE_POLICY set security ike gateway IKE_GW_2 address 100.0.0.1 set security ike gateway IKE_GW_2 dead-peer-detection probe-idle-tunnel set security ike gateway IKE_GW_2 dead-peer-detection interval 10 set security ike gateway IKE_GW_2 dead-peer-detection threshold 3 set security ike gateway IKE_GW_2 local-identity hostname peer2.juniper.net set security ike gateway IKE_GW_2 remote-identity hostname vsrx.juniper.net set security ike gateway IKE_GW_2 external-interface lo0.0 set security ike gateway IKE_GW_2 local-address 200.0.0.2 set security ike gateway IKE_GW_2 version v2-only set security ike gateway IKE_GW_3 ike-policy IKE_POLICY set security ike gateway IKE_GW_3 address 100.0.0.1 set security ike gateway IKE_GW_3 dead-peer-detection probe-idle-tunnel set security ike gateway IKE_GW_3 dead-peer-detection interval 10 set security ike gateway IKE_GW_3 dead-peer-detection threshold 3 set security ike gateway IKE_GW_3 local-identity hostname peer3.juniper.net set security ike gateway IKE_GW_3 remote-identity hostname vsrx.juniper.net set security ike gateway IKE_GW_3 external-interface lo0.0 set security ike gateway IKE_GW_3 local-address 200.0.0.6 set security ike gateway IKE_GW_3 version v2-only set security ipsec proposal IPSEC_PROP protocol esp set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-gcm set security ipsec proposal IPSEC_PROP lifetime-seconds 3600 set security ipsec policy IPSEC_POLICY proposals IPSEC_PROP set security ipsec vpn TUN_1 bind-interface st0.1 set security ipsec vpn TUN_1 ike gateway IKE_GW_1 set security ipsec vpn TUN_1 ike ipsec-policy IPSEC_POLICY set security ipsec vpn TUN_1 traffic-selector ts1 local-ip 6.0.0.1/32 set security ipsec vpn TUN_1 traffic-selector ts1 remote-ip 75.0.0.1/32 set security ipsec vpn TUN_1 establish-tunnels immediately set security ipsec vpn TUN_2 bind-interface st0.2 set security ipsec vpn TUN_2 ike gateway IKE_GW_2 set security ipsec vpn TUN_2 ike ipsec-policy IPSEC_POLICY set security ipsec vpn TUN_2 traffic-selector ts1 local-ip 6.0.0.2/32 set security ipsec vpn TUN_2 traffic-selector ts1 remote-ip 75.0.0.2/32 set security ipsec vpn TUN_2 establish-tunnels immediately set security ipsec vpn TUN_3 bind-interface st0.3 set security ipsec vpn TUN_3 ike gateway IKE_GW_3 set security ipsec vpn TUN_3 ike ipsec-policy IPSEC_POLICY set security ipsec vpn TUN_3 traffic-selector ts1 local-ip 6.0.0.3/32 set security ipsec vpn TUN_3 traffic-selector ts1 remote-ip 75.0.0.3/32 set security ipsec vpn TUN_3 establish-tunnels immediately set security ipsec anti-replay-window-size 512 set security flow power-mode-ipsec set interfaces vms-3/0/0 unit 1 family inet set interfaces vms-3/0/0 unit 1 service-domain inside set interfaces vms-3/0/0 unit 2 family inet set interfaces vms-3/0/0 unit 2 service-domain inside set interfaces vms-3/0/0 unit 3 family inet set interfaces vms-3/0/0 unit 3 service-domain inside set interfaces vms-3/0/0 unit 2001 family inet set interfaces vms-3/0/0 unit 2001 service-domain outside set interfaces vms-3/0/0 unit 2002 family inet set interfaces vms-3/0/0 unit 2002 service-domain outside set interfaces vms-3/0/0 unit 2003 family inet set interfaces vms-3/0/0 unit 2003 service-domain outside set interfaces lo0 unit 0 family inet address 200.0.0.1/32 set interfaces lo0 unit 0 family inet address 200.0.0.2/32 set interfaces lo0 unit 0 family inet address 200.0.0.6/32 set interfaces st0 unit 1 family inet set interfaces st0 unit 2 family inet set interfaces st0 unit 3 family inet set interfaces et-7/0/0 gigether-options 802.3ad ae10 set interfaces et-7/1/3 gigether-options 802.3ad ae10 set interfaces et-7/0/3 gigether-options 802.3ad ae10 set interfaces et-7/0/4 gigether-options 802.3ad ae10 set interfaces et-7/0/1 gigether-options 802.3ad ae11 set interfaces et-7/0/2 gigether-options 802.3ad ae11 set interfaces et-7/1/0 gigether-options 802.3ad ae11 set interfaces et-7/1/1 gigether-options 802.3ad ae11 set interfaces et-7/1/2 mtu 9192 set interfaces et-7/1/2 unit 0 family inet address 50.0.0.1/30 set interfaces et-7/1/4 mtu 9192 set interfaces et-7/1/4 unit 0 family inet address 60.0.0.1/30 set interfaces ae10 flexible-vlan-tagging set interfaces ae10 encapsulation flexible-ethernet-services set interfaces ae10 aggregated-ether-options minimum-links 1 set interfaces ae10 aggregated-ether-options lacp active set interfaces ae10 aggregated-ether-options lacp periodic fast set interfaces ae10 unit 40 vlan-id 40 set interfaces ae10 unit 40 family inet address 40.1.1.1/30 set interfaces ae10 unit 40 family inet6 address 40:1:1::1/124 set interfaces ae10 unit 80 vlan-id 80 set interfaces ae10 unit 80 family inet address 80.1.1.1/30 set interfaces ae10 unit 80 family inet6 address 80:1:1::1/124 set interfaces ae11 flexible-vlan-tagging set interfaces ae11 encapsulation flexible-ethernet-services set interfaces ae11 aggregated-ether-options minimum-links 1 set interfaces ae11 aggregated-ether-options lacp active set interfaces ae11 aggregated-ether-options lacp periodic fast set interfaces ae11 unit 41 vlan-id 41 set interfaces ae11 unit 41 family inet address 41.1.1.1/30 set interfaces ae11 unit 41 family inet6 address 41:1:1::1/124 set interfaces ae11 unit 81 vlan-id 81 set interfaces ae11 unit 81 family inet address 81.1.1.1/30 set interfaces ae11 unit 81 family inet6 address 81:1:1::1/124 set routing-instances TRUST_VR instance-type virtual-router set routing-instances TRUST_VR routing-options autonomous-system 1500 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust type external set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust export client_to_server_export set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust peer-as 1000 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust local-as 1500 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection minimum-interval 300 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection minimum-receive-interval 300 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection multiplier 3 set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust neighbor 40.1.1.2 set routing-instances TRUST_VR protocols bgp multipath set routing-instances TRUST_VR interface vms-3/0/0.2001 set routing-instances TRUST_VR interface vms-3/0/0.2002 set routing-instances TRUST_VR interface vms-3/0/0.2003 set routing-instances TRUST_VR interface ae10.40 set routing-instances TRUST_VR interface lo0.0 set policy-options policy-statement client_to_server_export term 1 from protocol direct set policy-options policy-statement client_to_server_export term 1 from route-filter 200.0.0.0/8 orlonger set policy-options policy-statement client_to_server_export term 1 then accept set policy-options policy-statement client_to_server_export term 2 then reject set policy-options policy-statement client_to_server_export_mx2 term 1 from protocol static set policy-options policy-statement client_to_server_export_mx2 term 1 from route-filter 141.0.0.0/8 orlonger set policy-options policy-statement client_to_server_export_mx2 term 1 from route-filter 140.0.0.0/8 orlonger set policy-options policy-statement client_to_server_export_mx2 term 1 then accept set policy-options policy-statement client_to_server_export_mx2 term 2 then reject set routing-instances UNTRUST_VR instance-type virtual-router set routing-instances UNTRUST_VR routing-options autonomous-system 2500 set routing-instances UNTRUST_VR routing-options static route 75.0.0.0/8 next-hop 60.0.0.2 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust type external set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust export server_to_client_export set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust peer-as 2000 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust local-as 2500 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection minimum-interval 300 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection minimum-receive-interval 300 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection multiplier 3 set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust neighbor 80.1.1.2 set routing-instances UNTRUST_VR protocols bgp multipath set routing-instances UNTRUST_VR interface et-7/1/4.0 set routing-instances UNTRUST_VR interface ae10.80 set policy-options policy-statement server_to_client_export term t1 from protocol static set policy-options policy-statement server_to_client_export term t1 from route-filter 75.0.0.0/8 exact set policy-options policy-statement server_to_client_export term t1 then accept set policy-options policy-statement server_to_client_export term t2 then reject set policy-options policy-statement server_to_client_export_mx2 term t1 from protocol static set policy-options policy-statement server_to_client_export_mx2 term t1 from route-filter 0.0.0.0/0 exact set policy-options policy-statement server_to_client_export_mx2 term t1 then accept set policy-options policy-statement server_to_client_export_mx2 term t2 then reject set routing-instances client instance-type virtual-router set routing-instances client routing-options static route 6.0.0.0/8 next-hop 50.0.0.2 set routing-instances client interface vms-3/0/0.1 set routing-instances client interface vms-3/0/0.2 set routing-instances client interface vms-3/0/0.3 set routing-instances client interface et-7/1/2.0 set routing-instances client interface st0.1 set routing-instances client interface st0.2 set routing-instances client interface st0.3 set policy-options policy-statement ECMP_POLICY-LB then load-balance per-packet set routing-options forwarding-table export ECMP_POLICY-LB
SRX1を設定する
[edit] set security ike proposal IKE_PROP authentication-method pre-shared-keys set security ike proposal IKE_PROP dh-group group2 set security ike proposal IKE_PROP authentication-algorithm sha1 set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc set security ike proposal IKE_PROP lifetime-seconds 3600 set security ike policy IKE_POLICY proposals IKE_PROP set security ike policy IKE_POLICY pre-shared-key ascii-text "$ABC123" set security ike gateway avpn_ike_gw ike-policy IKE_POLICY set security ike gateway avpn_ike_gw dynamic hostname .juniper.net set security ike gateway avpn_ike_gw dynamic ike-user-type group-ike-id set security ike gateway avpn_ike_gw dead-peer-detection probe-idle-tunnel set security ike gateway avpn_ike_gw dead-peer-detection interval 10 set security ike gateway avpn_ike_gw dead-peer-detection threshold 3 set security ike gateway avpn_ike_gw local-identity hostname vsrx.juniper.net set security ike gateway avpn_ike_gw external-interface lo0.0 set security ike gateway avpn_ike_gw local-address 100.0.0.1 set security ike gateway avpn_ike_gw version v2-only set security ipsec proposal IPSEC_PROP protocol esp set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-gcm set security ipsec proposal IPSEC_PROP lifetime-seconds 3600 set security ipsec policy IPSEC_POLICY proposals IPSEC_PROP set security ipsec vpn avpn_ipsec_vpn bind-interface st0.1 set security ipsec vpn avpn_ipsec_vpn ike gateway avpn_ike_gw set security ipsec vpn avpn_ipsec_vpn ike ipsec-policy IPSEC_POLICY set security ipsec vpn avpn_ipsec_vpn traffic-selector ts local-ip 0.0.0.0/0 set security ipsec vpn avpn_ipsec_vpn traffic-selector ts remote-ip 0.0.0.0/0 set security ipsec anti-replay-window-size 512 set interfaces lo0 unit 0 family inet address 100.0.0.1/32 set interfaces st0 unit 1 family inet set interfaces st0 unit 2 family inet set interfaces st0 unit 3 family inet set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_trust_zone interfaces ae1.0 set security zones security-zone vr-1_trust_zone interfaces lo0.0 set security zones security-zone vr-1_trust_zone interfaces st0.1 set security zones security-zone vr-1_trust_zone interfaces st0.2 set security zones security-zone vr-1_trust_zone interfaces st0.3 set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_untrust_zone interfaces ae1.1 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match source-address ipsec_data_source_prefix_6.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY then permit set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match source-address ike_source_prefix_200.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY then permit set security policies default-policy permit-all set security address-book global address ipsec_data_source_prefix_6.0.0.0/8 6.0.0.0/8 set security address-book global address ike_source_prefix_200.0.0.0/8 200.0.0.0/8 set interfaces et-1/0/0 gigether-options 802.3ad ae1 set interfaces et-1/0/1 gigether-options 802.3ad ae1 set interfaces ae1 vlan-tagging set interfaces ae1 aggregated-ether-options minimum-links 1 set interfaces ae1 aggregated-ether-options lacp active set interfaces ae1 aggregated-ether-options lacp periodic fast set interfaces ae1 unit 0 vlan-id 1 set interfaces ae1 unit 0 family inet address 10.1.1.0/31 set interfaces ae1 unit 0 family inet6 address 10:1:1::0/127 set interfaces ae1 unit 1 vlan-id 2 set interfaces ae1 unit 1 family inet address 10.1.1.2/31 set interfaces ae1 unit 1 family inet6 address 10:1:1::2/127 set protocols bgp group Vsrx-to-MX_TRUST type external set protocols bgp group Vsrx-to-MX_TRUST export ike_endpoint_export_policy set protocols bgp group Vsrx-to-MX_TRUST local-as 500 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.1 peer-as 1000 set protocols bgp group Vsrx-to-MX_UNTRUST type external set protocols bgp group Vsrx-to-MX_UNTRUST export ari_export_untrust set protocols bgp group Vsrx-to-MX_UNTRUST local-as 500 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.3 peer-as 2000 set policy-options policy-statement ari_export_untrust term 1 from protocol ari-ts set policy-options policy-statement ari_export_untrust term 1 then accept set policy-options policy-statement ari_export_untrust term default then reject set policy-options policy-statement ike_endpoint_export_policy term 1 from protocol direct set policy-options policy-statement ike_endpoint_export_policy term 1 from route-filter 100.0.0.1/32 exact set policy-options policy-statement ike_endpoint_export_policy term 1 then next-hop self set policy-options policy-statement ike_endpoint_export_policy term 1 then accept set policy-options policy-statement ike_endpoint_export_policy term 2 then reject set policy-options policy-statement ecmp_policy_lab then load-balance per-packet set routing-options forwarding-table export ecmp_policy_lab
SRX2を設定する
[edit] set security ike proposal IKE_PROP authentication-method pre-shared-keys set security ike proposal IKE_PROP dh-group group2 set security ike proposal IKE_PROP authentication-algorithm sha1 set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc set security ike proposal IKE_PROP lifetime-seconds 3600 set security ike policy IKE_POLICY proposals IKE_PROP set security ike policy IKE_POLICY pre-shared-key ascii-text "$ABC123" set security ike gateway avpn_ike_gw ike-policy IKE_POLICY set security ike gateway avpn_ike_gw dynamic hostname .juniper.net set security ike gateway avpn_ike_gw dynamic ike-user-type group-ike-id set security ike gateway avpn_ike_gw dead-peer-detection probe-idle-tunnel set security ike gateway avpn_ike_gw dead-peer-detection interval 10 set security ike gateway avpn_ike_gw dead-peer-detection threshold 3 set security ike gateway avpn_ike_gw local-identity hostname vsrx.juniper.net set security ike gateway avpn_ike_gw external-interface lo0.0 set security ike gateway avpn_ike_gw local-address 100.0.0.1 set security ike gateway avpn_ike_gw version v2-only set security ipsec proposal IPSEC_PROP protocol esp set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-gcm set security ipsec proposal IPSEC_PROP lifetime-seconds 3600 set security ipsec policy IPSEC_POLICY proposals IPSEC_PROP set security ipsec vpn avpn_ipsec_vpn bind-interface st0.1 set security ipsec vpn avpn_ipsec_vpn ike gateway avpn_ike_gw set security ipsec vpn avpn_ipsec_vpn ike ipsec-policy IPSEC_POLICY set security ipsec vpn avpn_ipsec_vpn traffic-selector ts local-ip 0.0.0.0/0 set security ipsec vpn avpn_ipsec_vpn traffic-selector ts remote-ip 0.0.0.0/0 set security ipsec anti-replay-window-size 512 set interfaces lo0 unit 0 family inet address 100.0.0.1/32 set interfaces st0 unit 1 family inet set interfaces st0 unit 2 family inet set interfaces st0 unit 3 family inet set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_trust_zone interfaces ae1.0 set security zones security-zone vr-1_trust_zone interfaces lo0.0 set security zones security-zone vr-1_trust_zone interfaces st0.1 set security zones security-zone vr-1_trust_zone interfaces st0.2 set security zones security-zone vr-1_trust_zone interfaces st0.3 set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_untrust_zone interfaces ae1.1 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match source-address ipsec_data_source_prefix_6.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY then permit set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match source-address ike_source_prefix_200.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY then permit set security policies default-policy permit-all set security address-book global address ipsec_data_source_prefix_6.0.0.0/8 6.0.0.0/8 set security address-book global address ike_source_prefix_200.0.0.0/8 200.0.0.0/8 set interfaces et-1/0/0 gigether-options 802.3ad ae1 set interfaces et-1/0/1 gigether-options 802.3ad ae1 set interfaces ae1 vlan-tagging set interfaces ae1 aggregated-ether-options minimum-links 1 set interfaces ae1 aggregated-ether-options lacp active set interfaces ae1 aggregated-ether-options lacp periodic fast set interfaces ae1 unit 0 vlan-id 9 set interfaces ae1 unit 0 family inet address 10.1.1.8/31 set interfaces ae1 unit 0 family inet6 address 10:2:2::0/127 set interfaces ae1 unit 1 vlan-id 10 set interfaces ae1 unit 1 family inet address 10.1.1.10/31 set interfaces ae1 unit 1 family inet6 address 10:2:2::2/127 set protocols bgp group Vsrx-to-MX_TRUST type external set protocols bgp group Vsrx-to-MX_TRUST export ike_endpoint_export_policy set protocols bgp group Vsrx-to-MX_TRUST local-as 500 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.9 peer-as 1000 set protocols bgp group Vsrx-to-MX_UNTRUST type external set protocols bgp group Vsrx-to-MX_UNTRUST export ari_export_untrust set protocols bgp group Vsrx-to-MX_UNTRUST local-as 500 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.11 peer-as 2000 set policy-options policy-statement ari_export_untrust term 1 from protocol ari-ts set policy-options policy-statement ari_export_untrust term 1 then accept set policy-options policy-statement ari_export_untrust term default then reject set policy-options policy-statement ike_endpoint_export_policy term 1 from protocol direct set policy-options policy-statement ike_endpoint_export_policy term 1 from route-filter 100.0.0.1/32 exact set policy-options policy-statement ike_endpoint_export_policy term 1 then next-hop self set policy-options policy-statement ike_endpoint_export_policy term 1 then accept set policy-options policy-statement ike_endpoint_export_policy term 2 then reject set policy-options policy-statement ecmp_policy_lab then load-balance per-packet set routing-options forwarding-table export ecmp_policy_lab
SRX3の設定
[edit] set security ike proposal IKE_PROP authentication-method pre-shared-keys set security ike proposal IKE_PROP dh-group group2 set security ike proposal IKE_PROP authentication-algorithm sha1 set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc set security ike proposal IKE_PROP lifetime-seconds 3600 set security ike policy IKE_POLICY proposals IKE_PROP set security ike policy IKE_POLICY pre-shared-key ascii-text "$ABC123" set security ike gateway avpn_ike_gw ike-policy IKE_POLICY set security ike gateway avpn_ike_gw dynamic hostname .juniper.net set security ike gateway avpn_ike_gw dynamic ike-user-type group-ike-id set security ike gateway avpn_ike_gw dead-peer-detection probe-idle-tunnel set security ike gateway avpn_ike_gw dead-peer-detection interval 10 set security ike gateway avpn_ike_gw dead-peer-detection threshold 3 set security ike gateway avpn_ike_gw local-identity hostname vsrx.juniper.net set security ike gateway avpn_ike_gw external-interface lo0.0 set security ike gateway avpn_ike_gw local-address 100.0.0.1 set security ike gateway avpn_ike_gw version v2-only set security ipsec proposal IPSEC_PROP protocol esp set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-gcm set security ipsec proposal IPSEC_PROP lifetime-seconds 3600 set security ipsec policy IPSEC_POLICY proposals IPSEC_PROP set security ipsec vpn avpn_ipsec_vpn bind-interface st0.1 set security ipsec vpn avpn_ipsec_vpn ike gateway avpn_ike_gw set security ipsec vpn avpn_ipsec_vpn ike ipsec-policy IPSEC_POLICY set security ipsec vpn avpn_ipsec_vpn traffic-selector ts local-ip 0.0.0.0/0 set security ipsec vpn avpn_ipsec_vpn traffic-selector ts remote-ip 0.0.0.0/0 set security ipsec anti-replay-window-size 512 set interfaces lo0 unit 0 family inet address 100.0.0.1/32 set interfaces st0 unit 1 family inet set interfaces st0 unit 2 family inet set interfaces st0 unit 3 family inet set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_trust_zone interfaces ae1.0 set security zones security-zone vr-1_trust_zone interfaces lo0.0 set security zones security-zone vr-1_trust_zone interfaces st0.1 set security zones security-zone vr-1_trust_zone interfaces st0.2 set security zones security-zone vr-1_trust_zone interfaces st0.3 set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all set security zones security-zone vr-1_untrust_zone interfaces ae1.1 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match source-address ipsec_data_source_prefix_6.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy IPSEC_DATA_POLICY then permit set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match source-address ike_source_prefix_200.0.0.0/8 set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match destination-address any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY match application any set security policies from-zone vr-1_trust_zone to-zone vr-1_trust_zone policy IKE_ALLOW_POLICY then permit set security policies default-policy permit-all set security address-book global address ipsec_data_source_prefix_6.0.0.0/8 6.0.0.0/8 set security address-book global address ike_source_prefix_200.0.0.0/8 200.0.0.0/8 set interfaces et-1/0/0 gigether-options 802.3ad ae1 set interfaces et-1/0/1 gigether-options 802.3ad ae1 set interfaces ae1 vlan-tagging set interfaces ae1 aggregated-ether-options minimum-links 1 set interfaces ae1 aggregated-ether-options lacp active set interfaces ae1 aggregated-ether-options lacp periodic fast set interfaces ae1 unit 0 vlan-id 9 set interfaces ae1 unit 0 family inet address 10.1.1.16/31 set interfaces ae1 unit 1 vlan-id 10 set interfaces ae1 unit 1 family inet address 10.1.1.18/31 set protocols bgp group Vsrx-to-MX_TRUST type external set protocols bgp group Vsrx-to-MX_TRUST export ike_endpoint_export_policy set protocols bgp group Vsrx-to-MX_TRUST local-as 500 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.17 peer-as 1000 set protocols bgp group Vsrx-to-MX_UNTRUST type external set protocols bgp group Vsrx-to-MX_UNTRUST export ari_export_untrust set protocols bgp group Vsrx-to-MX_UNTRUST local-as 500 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300 set protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3 set protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.19 peer-as 2000 set policy-options policy-statement ari_export_untrust term 1 from protocol ari-ts set policy-options policy-statement ari_export_untrust term 1 then accept set policy-options policy-statement ari_export_untrust term default then reject set policy-options policy-statement ike_endpoint_export_policy term 1 from protocol direct set policy-options policy-statement ike_endpoint_export_policy term 1 from route-filter 100.0.0.1/32 exact set policy-options policy-statement ike_endpoint_export_policy term 1 then next-hop self set policy-options policy-statement ike_endpoint_export_policy term 1 then accept set policy-options policy-statement ike_endpoint_export_policy term 2 then reject set policy-options policy-statement ecmp_policy_lab then load-balance per-packet set routing-options forwarding-table export ecmp_policy_lab
検証
以下の項目は、この例で機能を検証するために使用した表示コマンドのリストを示しています。
- MXシリーズの設定を確認する
- SRX1の設定を確認する
- SRX2の設定を確認する
- SRX3の設定を確認する
MXシリーズの設定の確認
user@MX304# run show route 100.0.0.1/32 active-path
TRUST_VR.inet.0: 12 destinations, 14 routes (12 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
100.0.0.1/32 *[BGP/170] 03:14:10, localpref 100
AS path: 500 I, validation-state: unverified
to 10.1.1.0 via ae1.0
> to 10.1.1.8 via ae2.0
to 10.1.1.16 via ae3.0
user@MX304# run show route 100.0.0.1/32 active-path extensive
TRUST_VR.inet.0: 12 destinations, 14 routes (12 active, 0 holddown, 0 hidden)
100.0.0.1/32 (3 entries, 1 announced)
TSI:
KRT in-kernel 100.0.0.1/32 -> {list:10.1.1.0, 10.1.1.8, 10.1.1.16 Flags source ip load-balance}
Page 0 idx 1, (group MX-to-TRUST_GW_Router type External) Type 1 val 0x12b04ce0 (adv_entry)
Advertised metrics:
Flags: Nexthop Change
Nexthop: Self
AS path: [1000] 500 I
Communities:
Advertise: 00000001
Path 100.0.0.1
from 10.1.1.8
Vector len 4. Val: 1
*BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xf918b24
Next-hop reference count: 2, Next-hop session id: 0
Kernel Table Id: 0
Source: 10.1.1.8
Next hop: 10.1.1.0 via ae1.0
Session Id: 0
Next hop: 10.1.1.8 via ae2.0, selected
Session Id: 0
Next hop: 10.1.1.16 via ae3.0
Session Id: 0
State: <Active Ext LoadBalConsistentHash>
Local AS: 1000 Peer AS: 500
Age: 3:14:15
Validation State: unverified
Task: BGP_500_1000.10.1.1.8
Announcement bits (3): 0-KRT 1-BGP_Multi_Path 2-BGP_RT_Background
AS path: 500 I
Accepted Multipath
Localpref: 100
Router ID: 10.255.33.26
Thread: junos-main
user@MX304# run show route 75/8
UNTRUST_VR.inet.0: 12 destinations, 12 routes (12 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
75.0.0.0/8 *[BGP/170] 06:27:07, localpref 100
AS path: 2500 I, validation-state: unverified
> to 80.1.1.1 via ae10.80
user@MX304# run show route 6/8
UNTRUST_VR.inet.0: 12 destinations, 12 routes (12 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
6.0.0.1/32 *[BGP/170] 03:13:30, MED 5, localpref 100
AS path: 500 I, validation-state: unverified
> to 10.1.1.18 via ae3.1
6.0.0.2/32 *[BGP/170] 03:13:31, MED 5, localpref 100
AS path: 500 I, validation-state: unverified
> to 10.1.1.10 via ae2.1
6.0.0.3/32 *[BGP/170] 02:12:57, MED 5, localpref 100
AS path: 500 I, validation-state: unverified
> to 10.1.1.2 via ae1.1
user@MX304# run show route 200/8
TRUST_VR.inet.0: 12 destinations, 14 routes (12 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
200.0.0.1/32 *[BGP/170] 06:26:30, localpref 100
AS path: 1500 I, validation-state: unverified
> to 40.1.1.1 via ae10.40
200.0.0.2/32 *[BGP/170] 06:26:30, localpref 100
AS path: 1500 I, validation-state: unverified
> to 40.1.1.1 via ae10.40
200.0.0.6/32 *[BGP/170] 02:14:13, localpref 100
AS path: 1500 I, validation-state: unverified
> to 40.1.1.1 via ae10.40
user@MX304# run show bgp summary
Warning: License key missing; requires 'bgp' license
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 8 Peers: 8 Down peers: 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.0 500 501 493 0 6 3:44:50 Establ
TRUST_VR.inet.0: 1/1/1/0
10.1.1.2 500 466 449 0 6 3:25:47 Establ
UNTRUST_VR.inet.0: 1/1/1/0
10.1.1.8 500 503 495 0 5 3:45:35 Establ
TRUST_VR.inet.0: 1/1/1/0
10.1.1.10 500 529 504 0 3 3:50:55 Establ
UNTRUST_VR.inet.0: 1/1/1/0
10.1.1.16 500 780 768 0 3 5:50:32 Establ
TRUST_VR.inet.0: 1/1/1/0
10.1.1.18 500 792 763 0 2 5:50:37 Establ
UNTRUST_VR.inet.0: 1/1/1/0
40.1.1.1 1500 13601 13345 0 1 4d 7:42:56 Establ
TRUST_VR.inet.0: 3/3/3/0
80.1.1.1 2500 13588 13405 0 1 4d 7:42:56 Establ
UNTRUST_VR.inet.0: 1/1/1/0
user@MX304# run show bfd session
Detect Transmit
Address State Interface Time Interval Multiplier
10.1.1.0 Up ae1.0 0.900 0.300 3
10.1.1.2 Up ae1.1 0.900 0.300 3
10.1.1.8 Up ae2.0 0.900 0.300 3
10.1.1.10 Up ae2.1 0.900 0.300 3
10.1.1.16 Up ae3.0 0.900 0.300 3
10.1.1.18 Up ae3.1 0.900 0.300 3
40.1.1.1 Up ae10.40 0.900 0.300 3
80.1.1.1 Up ae10.80 0.900 0.300 3
8 sessions, 8 clients
Cumulative transmit rate 26.7 pps, cumulative receive rate 26.7 pps
IPsecイニシエータ設定の確認
user@IPsec# run show security ike security-associations
Index State Initiator cookie Responder cookie Mode Remote Address
380363 UP a8b642f8a828eb57 de97df1ba140e292 IKEv2 100.0.0.1
380364 UP 55b7e5a43d7462ba 201a1b9523442c50 IKEv2 100.0.0.1
380365 UP 3484ff0e307d1ddc 869cabffae9d261e IKEv2 100.0.0.1
user@IPsec# run show security ipsec security-associations
Total active tunnels: 3 Total IPsec sas: 3
ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway
<542828 ESP:aes-gcm-256/aes256-gcm 0xd23dbafa 3009/ unlim - root 500 100.0.0.1
>542828 ESP:aes-gcm-256/aes256-gcm 0xb74e6311 3009/ unlim - root 500 100.0.0.1
<542827 ESP:aes-gcm-256/aes256-gcm 0xb2943202 3053/ unlim - root 500 100.0.0.1
>542827 ESP:aes-gcm-256/aes256-gcm 0xd87a527b 3053/ unlim - root 500 100.0.0.1
<542832 ESP:aes-gcm-256/aes256-gcm 0x960b3fe9 834/ unlim - root 500 100.0.0.1
>542832 ESP:aes-gcm-256/aes256-gcm 0x1143a22f 834/ unlim - root 500 100.0.0.1
SRX1の設定を確認する
user@SRX1> show security ike security-associations
Index State Initiator cookie Responder cookie Mode Remote Address
20 UP a8b642f8a828eb57 de97df1ba140e292 IKEv2 200.0.0.6
user@SRX1> show security ipsec security-associations
Total active tunnels: 1 Total IPsec sas: 1
ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway
<500017 ESP:aes-gcm-256/aes256-gcm 0x1143a22f 1314/ unlim - root 500 200.0.0.6
>500017 ESP:aes-gcm-256/aes256-gcm 0x960b3fe9 1314/ unlim - root 500 200.0.0.6
user@SRX1> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
4 4 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.1 1000 500 505 0 4 3:47:18 Establ
inet.0: 3/3/3/0
10.1.1.3 2000 456 470 0 4 3:28:15 Establ
inet.0: 1/1/1/0
user@SRX1> show bfd session
Detect Transmit
Address State Interface Time Interval Multiplier
10.1.1.1 Up ae1.0 0.900 0.300 3
10.1.1.3 Up ae1.1 0.900 0.300 3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
user@SRX1> show route 200.0.0.0/8
inet.0: 27 destinations, 27 routes (26 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
200.0.0.1/32 *[BGP/170] 03:47:45, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.1 via ae1.0
200.0.0.2/32 *[BGP/170] 03:47:45, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.1 via ae1.0
200.0.0.6/32 *[BGP/170] 02:16:35, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.1 via ae1.0
user@SRX1> show route 6.0.0.0/8
inet.0: 27 destinations, 27 routes (26 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
6.0.0.3/32 *[ARI-TS/5] 02:16:49, metric 5
> via st0.1
user@SRX1> show route 75.0.0.0/8
inet.0: 27 destinations, 27 routes (26 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
75.0.0.0/8 *[BGP/170] 03:29:51, localpref 100
AS path: 2000 2500 I, validation-state: unverified
> to 10.1.1.3 via ae1.1
user@SRX1> show security flow session protocol esp
Session ID: 2894133, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.6/0 --> 100.0.0.1/0;esp, Conn Tag: 0x0, If: ae1.0, Pkts: 0, Bytes: 0,
Session ID: 2894160, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.6/4419 --> 100.0.0.1/41519;esp, Conn Tag: 0x0, If: lo0.0, Pkts: 0, Bytes: 0,
Total sessions: 2
user@SRX1> show security flow session protocol udp source-prefix 75.0.0.0/8
Session ID: 2894145, Policy name: IPSEC_DATA_POLICY, Timeout: 60, Session State: Valid
In: 75.0.0.3/2001 --> 6.0.0.3/1002;udp, Conn Tag: 0x0, If: ae1.1, Pkts: 51609457, Bytes: 30036703974,
Out: 6.0.0.3/1002 --> 75.0.0.3/2001;udp, Conn Tag: 0x0, If: st0.1, Pkts: 7741418, Bytes: 4505505276,
SRX2の設定を確認する
user@SRX2> show security ike security-associations
Index State Initiator cookie Responder cookie Mode Remote Address
26 UP 3484ff0e307d1ddc 869cabffae9d261e IKEv2 200.0.0.2
user@SRX2> show security ipsec security-associations
Total active tunnels: 1 Total IPsec sas: 1
ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway
<500018 ESP:aes-gcm-256/aes256-gcm 0xd87a527b 3257/ unlim - root 500 200.0.0.2
>500018 ESP:aes-gcm-256/aes256-gcm 0xb2943202 3257/ unlim - root 500 200.0.0.2
user@SRX2> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
4 4 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.9 1000 511 516 0 3 3:52:21 Establ
inet.0: 3/3/3/0
10.1.1.11 2000 520 542 0 1 3:57:40 Establ
inet.0: 1/1/1/0
user@SRX2> show bfd session
Detect Transmit
Address State Interface Time Interval Multiplier
10.1.1.9 Up ae1.0 0.900 0.300 3
10.1.1.11 Up ae1.1 0.900 0.300 3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
user@SRX2> show route 200.0.0.0/8
inet.0: 29 destinations, 29 routes (28 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
200.0.0.1/32 *[BGP/170] 03:52:29, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.9 via ae1.0
200.0.0.2/32 *[BGP/170] 03:52:29, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.9 via ae1.0
200.0.0.6/32 *[BGP/170] 02:20:34, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.9 via ae1.0
user@SRX2> show route 6.0.0.0/8
inet.0: 29 destinations, 29 routes (28 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
6.0.0.2/32 *[ARI-TS/5] 03:21:10, metric 5
> via st0.1
user@SRX2> show route 75.0.0.0/8
inet.0: 29 destinations, 29 routes (28 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both
75.0.0.0/8 *[BGP/170] 03:58:00, localpref 100
AS path: 2000 2500 I, validation-state: unverified
> to 10.1.1.11 via ae1.1
user@SRX2> show security flow session protocol esp
Session ID: 2897660, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.2/0 --> 100.0.0.1/0;esp, Conn Tag: 0x0, If: ae1.0, Pkts: 0, Bytes: 0,
Session ID: 2897694, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.2/55418 --> 100.0.0.1/21115;esp, Conn Tag: 0x0, If: lo0.0, Pkts: 0, Bytes: 0,
Total sessions: 2
user@SRX2> show security flow session protocol udp source-prefix 75.0.0.0/8
Session ID: 2897677, Policy name: IPSEC_DATA_POLICY, Timeout: 60, Session State: Valid
In: 75.0.0.2/2001 --> 6.0.0.2/1009;udp, Conn Tag: 0x0, If: ae1.1, Pkts: 52336685, Bytes: 30459950670,
Out: 6.0.0.2/1009 --> 75.0.0.2/2001;udp, Conn Tag: 0x0, If: st0.1, Pkts: 7850503, Bytes: 4568992746,
SRX3の設定を確認する
user@SRX3> show security ike security-associations
Index State Initiator cookie Responder cookie Mode Remote Address
19 UP 55b7e5a43d7462ba 201a1b9523442c50 IKEv2 200.0.0.1
user@SRX3> show security ipsec security-associations
Total active tunnels: 1 Total IPsec sas: 1
ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway
<500009 ESP:aes-gcm-256/aes256-gcm 0xb74e6311 3107/ unlim - root 500 200.0.0.1
>500009 ESP:aes-gcm-256/aes256-gcm 0xd23dbafa 3107/ unlim - root 500 200.0.0.1
user@SRX3> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
4 4 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.17 1000 787 797 0 1 5:58:59 Establ
inet.0: 3/3/3/0
10.1.1.19 2000 783 810 0 0 5:59:04 Establ
inet.0: 1/1/1/0
user@SRX3> show bfd session
Detect Transmit
Address State Interface Time Interval Multiplier
10.1.1.17 Up ae1.0 0.900 0.300 3
10.1.1.19 Up ae1.1 0.900 0.300 3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
user@SRX3> show route 200.0.0.0/8
inet.0: 26 destinations, 26 routes (26 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
200.0.0.1/32 *[BGP/170] 05:59:07, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.17 via ae1.0
200.0.0.2/32 *[BGP/170] 05:59:07, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.17 via ae1.0
200.0.0.6/32 *[BGP/170] 02:22:15, localpref 100
AS path: 1000 1500 I, validation-state: unverified
> to 10.1.1.17 via ae1.0
user@SRX3> show route 6.0.0.0/8
inet.0: 26 destinations, 26 routes (26 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
6.0.0.1/32 *[ARI-TS/5] 03:22:51, metric 5
> via st0.1
user@SRX3> show route 75.0.0.0/8
inet.0: 26 destinations, 26 routes (26 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
75.0.0.0/8 *[BGP/170] 05:59:22, localpref 100
AS path: 2000 2500 I, validation-state: unverified
> to 10.1.1.19 via ae1.1
user@SRX3> show security flow session protocol esp
Session ID: 2889066, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.1/0 --> 100.0.0.1/0;esp, Conn Tag: 0x0, If: ae1.0, Pkts: 0, Bytes: 0,
Session ID: 2889104, Policy name: N/A, Timeout: N/A, Session State: Valid
In: 200.0.0.1/46926 --> 100.0.0.1/25361;esp, Conn Tag: 0x0, If: lo0.0, Pkts: 0, Bytes: 0,
Total sessions: 2
user@SRX3> show security flow session protocol udp source-prefix 75.0.0.0/8
Session ID: 2889087, Policy name: IPSEC_DATA_POLICY, Timeout: 60, Session State: Valid
In: 75.0.0.1/2001 --> 6.0.0.1/1005;udp, Conn Tag: 0x0, If: ae1.1, Pkts: 53008715, Bytes: 30851072130,
Out: 6.0.0.1/1005 --> 75.0.0.1/2001;udp, Conn Tag: 0x0, If: st0.1, Pkts: 7951308, Bytes: 4627661256,
